Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+9K+9K+9K+18K

Description

This comprehensive HVAC bundle is designed to provide optimal heating and cooling solutions for both residential and commercial applications. Featuring a powerful Mitsubishi Electric MXZ-SM60NL multi-zone heat pump outdoor unit, this bundle includes three wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX18NL) that offer flexibility and efficiency in various room sizes. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensure seamless refrigerant flow to multiple indoor units, while the MSDD-50AR2-E branch pipe distribution kit enhances system performance. Together, these components create a reliable and efficient multi-zone climate control system that meets diverse heating and cooling needs.

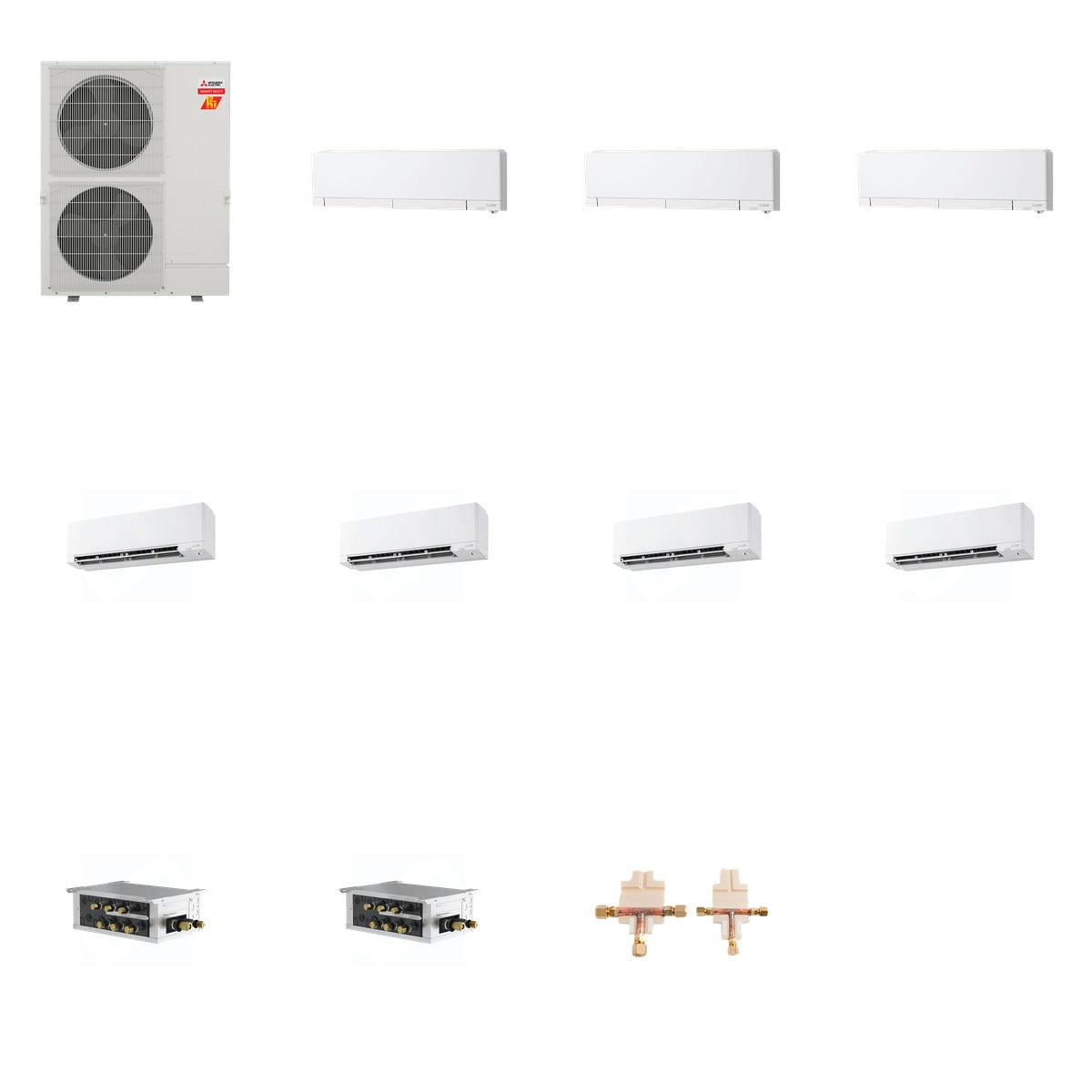

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - FX-Series Wall Mounted Unit 6k BTU (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX18NL - FX-Series Wall Mounted Unit 18k BTU (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 472.7 lb (Mitsubishi 225 lb + Mitsubishi 87 lb + Mitsubishi 109.2 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, 20-42 dB(A) sound level
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, 20-44 dB(A) sound level
• MSZ-FX18NL: 18,000 BTU, SEER up to 25.5, 26-46 dB(A) sound level
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ models
• PAC-LMA30BC: 3 ports, 208/230V, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, making it suitable for both residential and commercial environments. The components are designed to work seamlessly together, ensuring efficient refrigerant management and optimal indoor comfort across various room sizes and configurations.
