Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+9K+9K+15K+18K

Description

This comprehensive HVAC bundle includes a powerful Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, designed to efficiently connect with multiple indoor units for customized heating and cooling in both residential and commercial settings. Along with this outdoor unit, the bundle features three wall-mounted air handlers: the MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX15NL, each offering advanced filtration and smart features for optimal comfort. Additionally, the MSZ-FX18NL unit enhances the system's capacity for larger spaces, while the PAC-LMA50BC and PAC-LMA30BC branch boxes ensure effective refrigerant distribution. This carefully curated selection of components guarantees a high-performance, energy-efficient HVAC system tailored to meet diverse climate control needs.

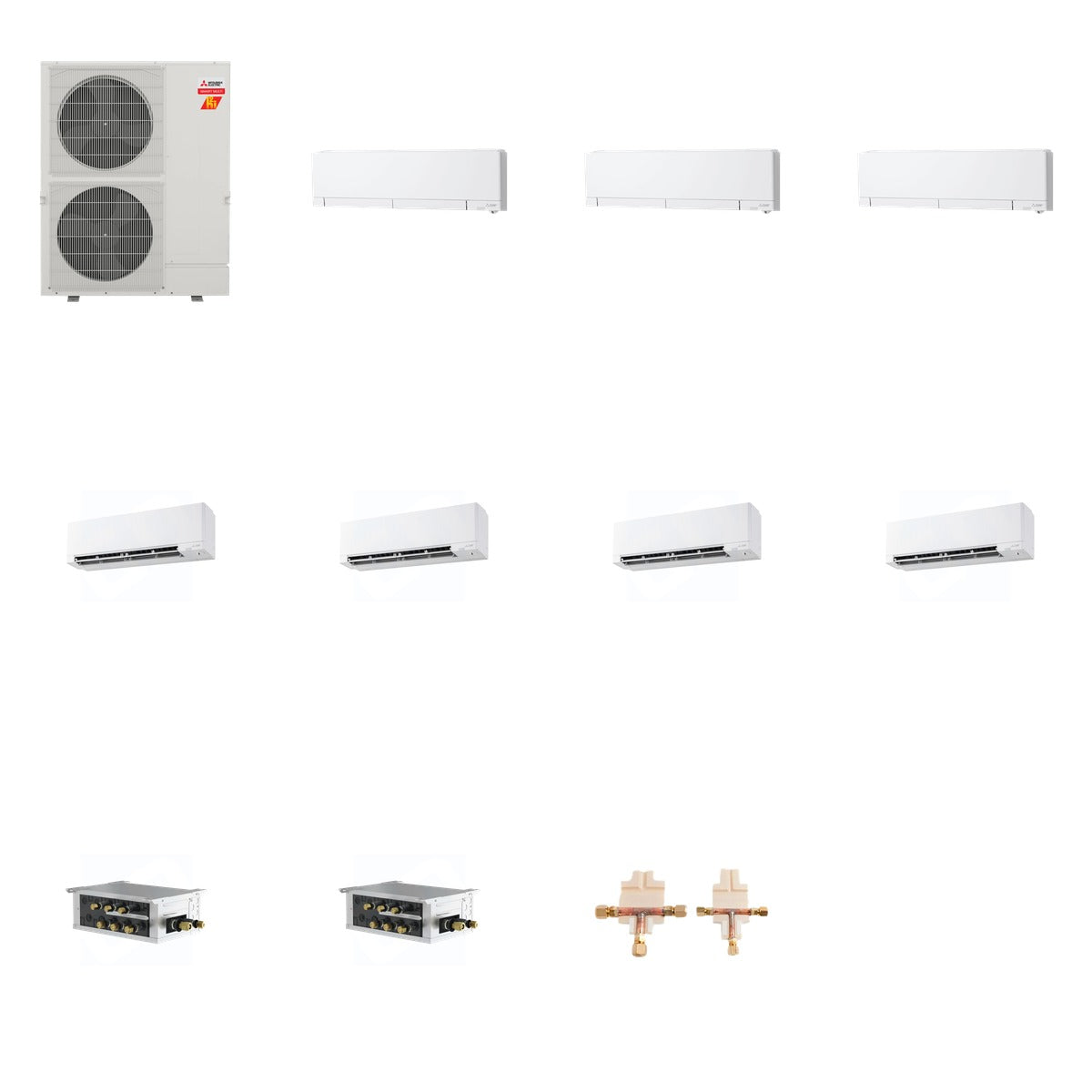

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - FX-Series Wall Mounted Unit 6k BTU (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX15NL - FX-Series Wall Mounted Unit 15k BTU (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX18NL - FX-Series Wall Mounted Unit 18k BTU (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 472.7 lb (Mitsubishi 225 lb + Mitsubishi 87 lb + Mitsubishi 72.8 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton capacity
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, 208/230V
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, 208/230V
• MSZ-FX15NL: 15,000 BTU, SEER2 up to 20, 208/230V
• MSZ-FX18NL: 18,000 BTU, SEER up to 25.5, 208/230V
• PAC-LMA50BC: 5 ports, 208/230V
• PAC-LMA30BC: 3 ports, 208/230V
• MSDD-50AR2-E: Flare connection, R-410A/R-454B compatible

Use & Compatibility

This bundle is ideal for both residential and commercial HVAC applications, providing efficient heating and cooling across multiple zones. The outdoor unit is compatible with various M-Series indoor units, ensuring flexibility in installation and performance. The branch boxes and distribution kit facilitate seamless refrigerant flow, making this setup perfect for customized climate control solutions.
