Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+9K+12K+18K+18K

Description

This comprehensive HVAC bundle features a selection of Mitsubishi Electric products designed to provide efficient heating and cooling solutions for both residential and commercial environments. The centerpiece is the MXZ-SM60NL multi-zone heat pump outdoor unit, which connects seamlessly with multiple indoor air handlers, allowing for customized climate control across different spaces. Complementing this unit are several wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, MSZ-FX12NL, and MSZ-FX18NL) that offer advanced filtration, smart device control, and quiet operation. Additionally, the bundle includes essential accessories such as branch boxes and distribution kits to ensure optimal refrigerant flow and system performance. Together, these components create a versatile and efficient HVAC system tailored to meet diverse heating and cooling needs.

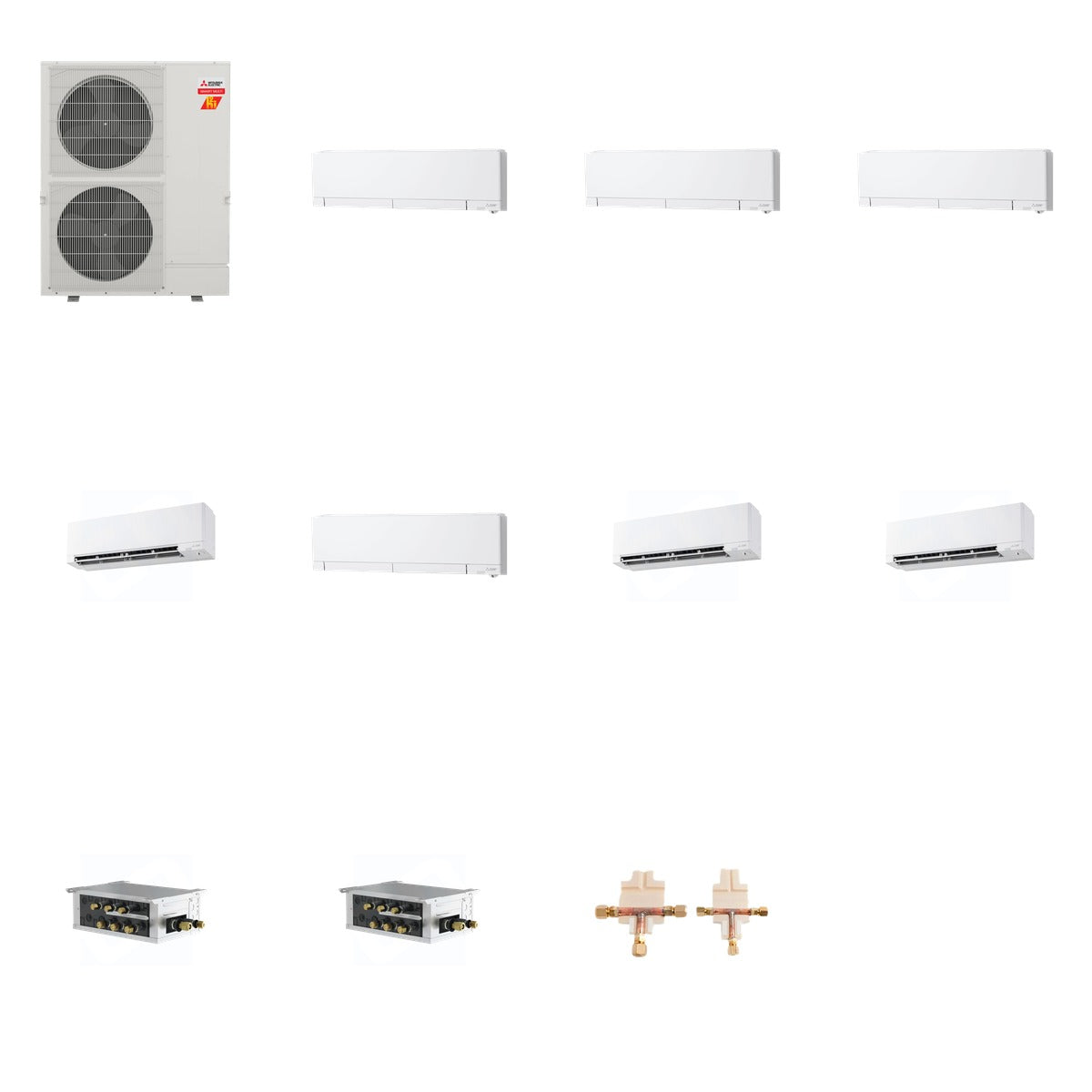

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX18NL - FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 472.7 lb (Mitsubishi 225 lb + Mitsubishi 87 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, 5-ton inverter condenser, SEER2 up to 23
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, minimum sound level 20 dB
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, minimum sound level 20 dB
• MSZ-FX12NL: 12,000 BTU, SEER2 up to 35, minimum sound level 20 dB
• MSZ-FX18NL: 18,000 BTU, SEER2 up to 25.5, minimum sound level 26 dB
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ outdoor units
• PAC-LMA30BC: 3 ports, 208/230V, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B refrigerants

Use & Compatibility

This bundle is ideal for both residential and commercial HVAC applications, providing flexible heating and cooling solutions for single-zone and multi-zone systems. The outdoor unit is compatible with various Mitsubishi Electric indoor units, ensuring efficient operation and comfort across different spaces. The included branch boxes and distribution kit enhance system performance by managing refrigerant flow effectively.
