Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+9K+9K+9K

Description

This comprehensive HVAC bundle is designed for optimal heating and cooling efficiency in both residential and commercial settings. Featuring the Mitsubishi Electric MXZ-SM60NL multi-zone heat pump outdoor unit, this package provides a powerful 60,000 BTU capacity to cater to various indoor units. The included MSZ-FX06NL and MSZ-FX09NL wall-mounted air handlers ensure quiet operation and advanced air filtration, making them perfect for individual rooms or larger spaces. With two branch boxes, the PAC-LMA50BC and PAC-LMA30BC, this bundle allows for seamless refrigerant management across multiple indoor units, ensuring balanced temperatures and energy efficiency. The MSDD-50AR2-E branch pipe distribution kit further enhances system performance by ensuring equal refrigerant distribution, making this bundle an excellent choice for any HVAC installation.

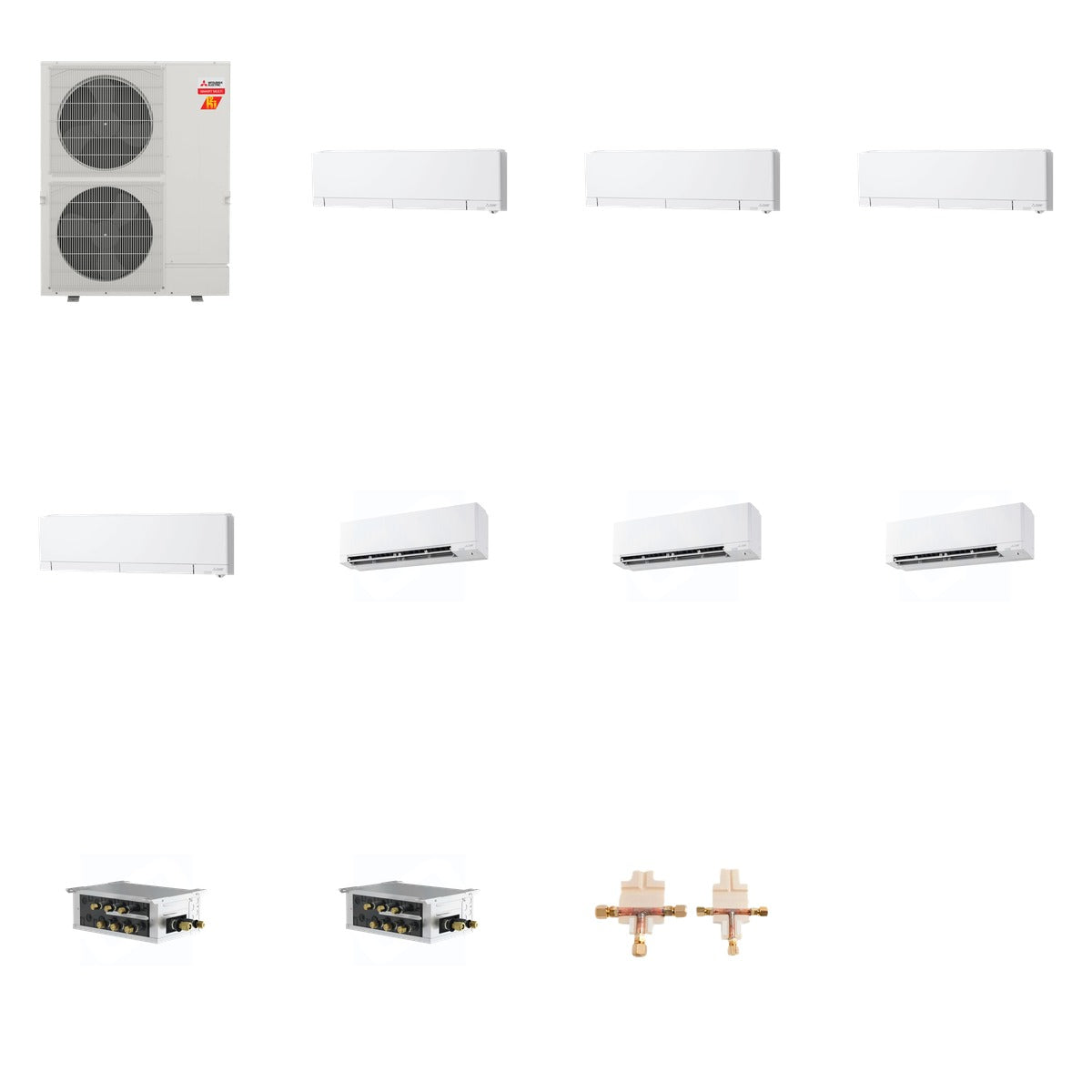

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 465.3 lb (Mitsubishi 225 lb + Mitsubishi 116 lb + Mitsubishi 109.2 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, 208/230V
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, 208/230V
• PAC-LMA50BC: 5 ports, 208/230V
• PAC-LMA30BC: 3 ports, 208/230V
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This HVAC bundle is ideal for multi-zone heating and cooling applications, compatible with Mitsubishi Electric's M-Series and CITY MULTI systems. The included components work together to provide efficient temperature control across multiple indoor units, making it suitable for both residential and commercial installations.
