Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+9K+9K+18K

Description

This comprehensive HVAC bundle features essential components for a multi-zone heating and cooling system, ideal for both residential and commercial applications. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, efficiently managing up to eight indoor units. Paired with four wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX18NL), this bundle ensures customized comfort across various spaces. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate optimal refrigerant flow, while the MSDD-50AR2-E distribution kit guarantees balanced performance. Together, these components create a versatile and efficient climate control solution.

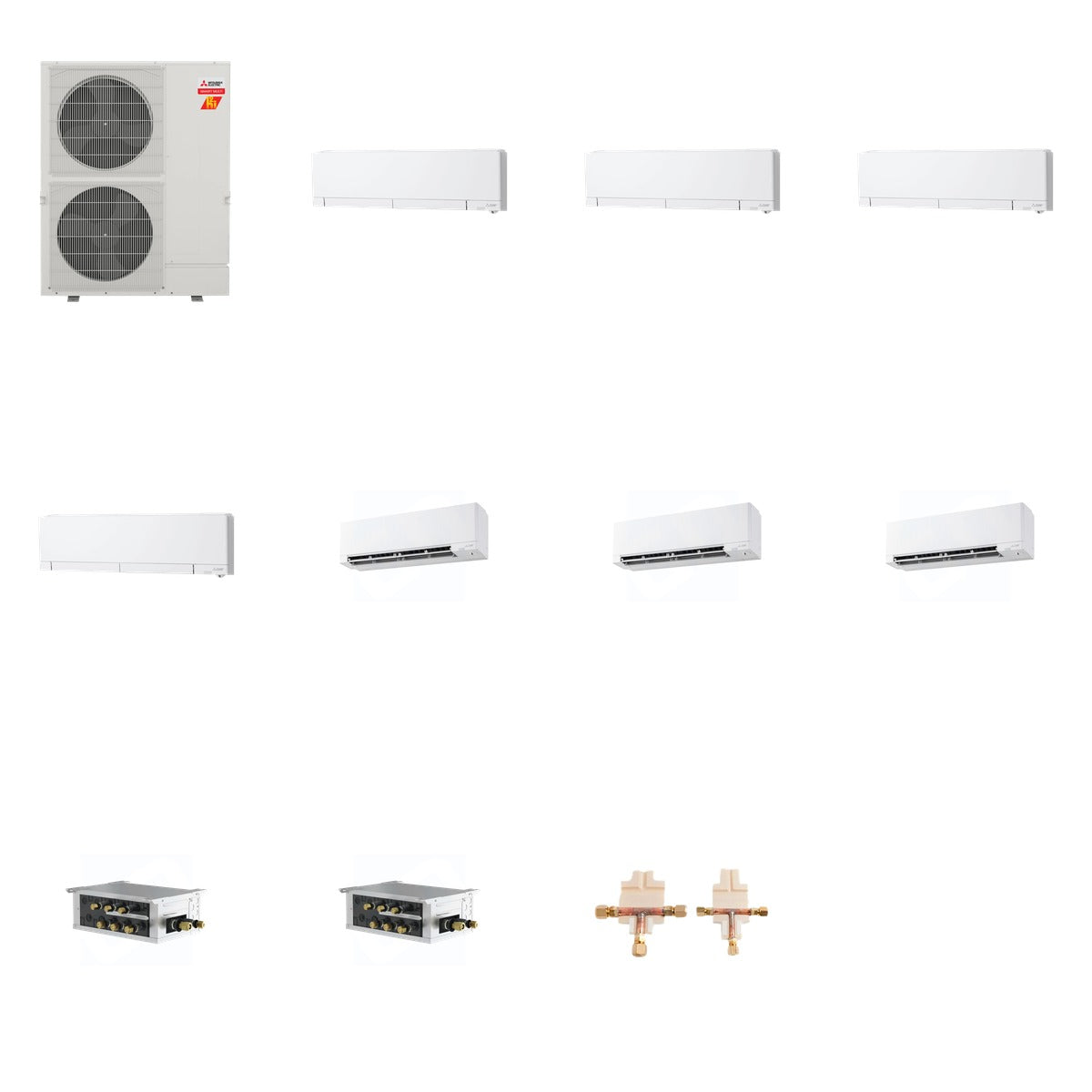

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX18NL - FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 465.3 lb (Mitsubishi 225 lb + Mitsubishi 116 lb + Mitsubishi 72.8 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• SEER2: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230 Volts (all units)
• Indoor Unit Sizes: 6k, 9k, 18k BTU (MSZ-FX06NL, MSZ-FX09NL, MSZ-FX18NL)
• Noise Level: As low as 20 dB (MSZ-FX units)
• Material: High-quality copper and insulation (MSDD-50AR2-E)

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor spaces. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, allowing for flexible configurations. The branch boxes and distribution kit ensure optimal refrigerant flow, making this setup suitable for both residential and commercial applications.
