Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+9K+9K+12K

Description

This comprehensive HVAC bundle features essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units for customized comfort. The included MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX12NL wall-mounted air handlers provide flexible heating and cooling options, each equipped with advanced filtration and smart technology for enhanced indoor air quality. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant flow, while the MSDD-50AR2-E branch pipe distribution kit ensures seamless installation and performance. Together, these components create a versatile and efficient climate control solution for both residential and commercial applications.

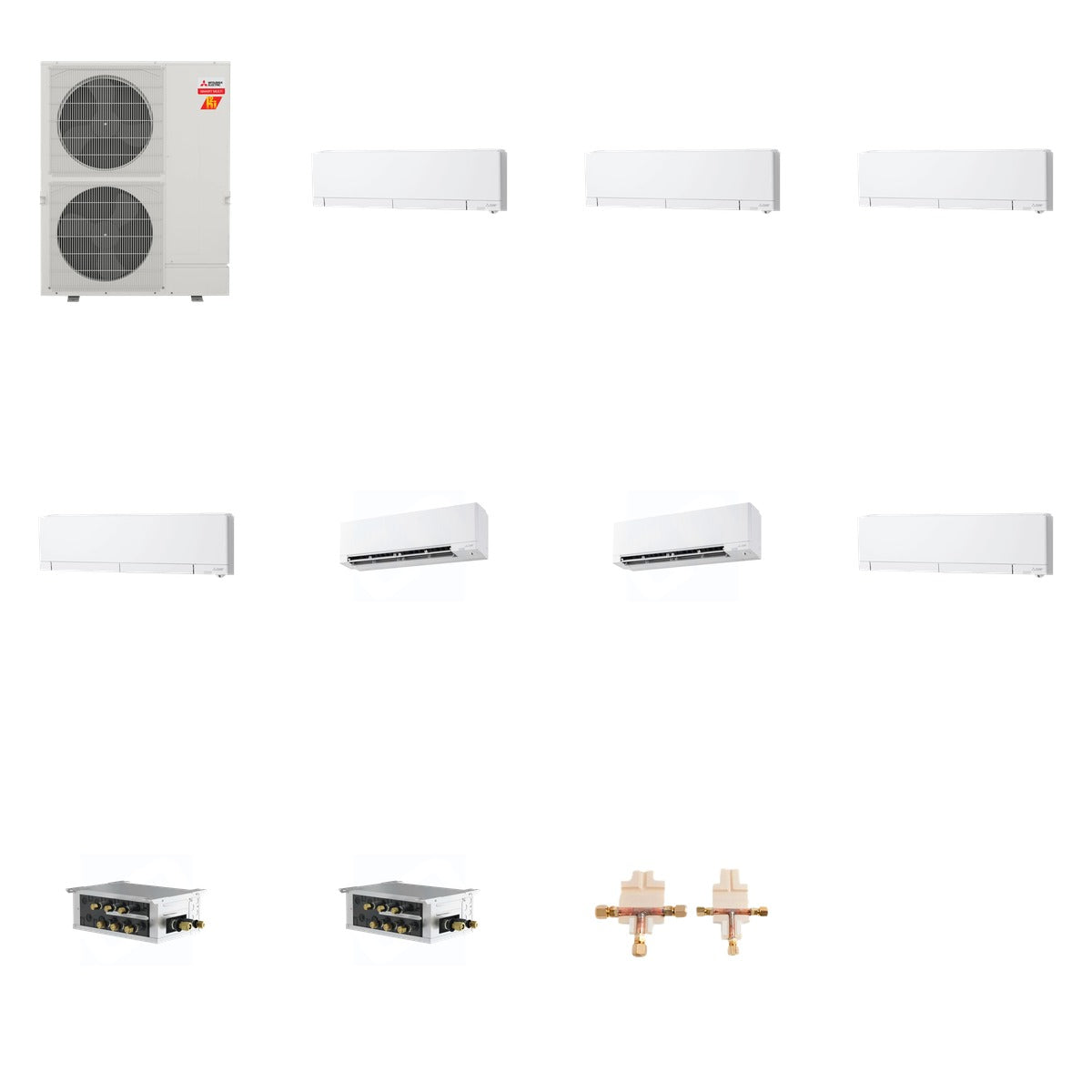

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 465.3 lb (Mitsubishi 225 lb + Mitsubishi 116 lb + Mitsubishi 72.8 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, 5-Ton, SEER2 up to 23, 208/230V
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, 208/230V, 20-42 dB(A)
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, 208/230V, 20-44 dB(A)
• MSZ-FX12NL: 12,000 BTU, SEER2 up to 35, 208/230V, 20-44 dB(A)
• PAC-LMA50BC: 5 ports, 208/230V
• PAC-LMA30BC: 3 ports, 208/230V
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling for both residential and commercial environments. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI indoor units, ensuring optimal performance and comfort across various spaces.
