Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+9K+12K+12K

Description

This comprehensive Mitsubishi Electric HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial environments. The centerpiece is the MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, capable of connecting to multiple indoor units for customized climate control. Accompanied by four advanced wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX12NL), this bundle ensures optimal comfort across various spaces. The inclusion of branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitates seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances system performance. Together, these components create a versatile and efficient HVAC system tailored to meet diverse heating and cooling needs.

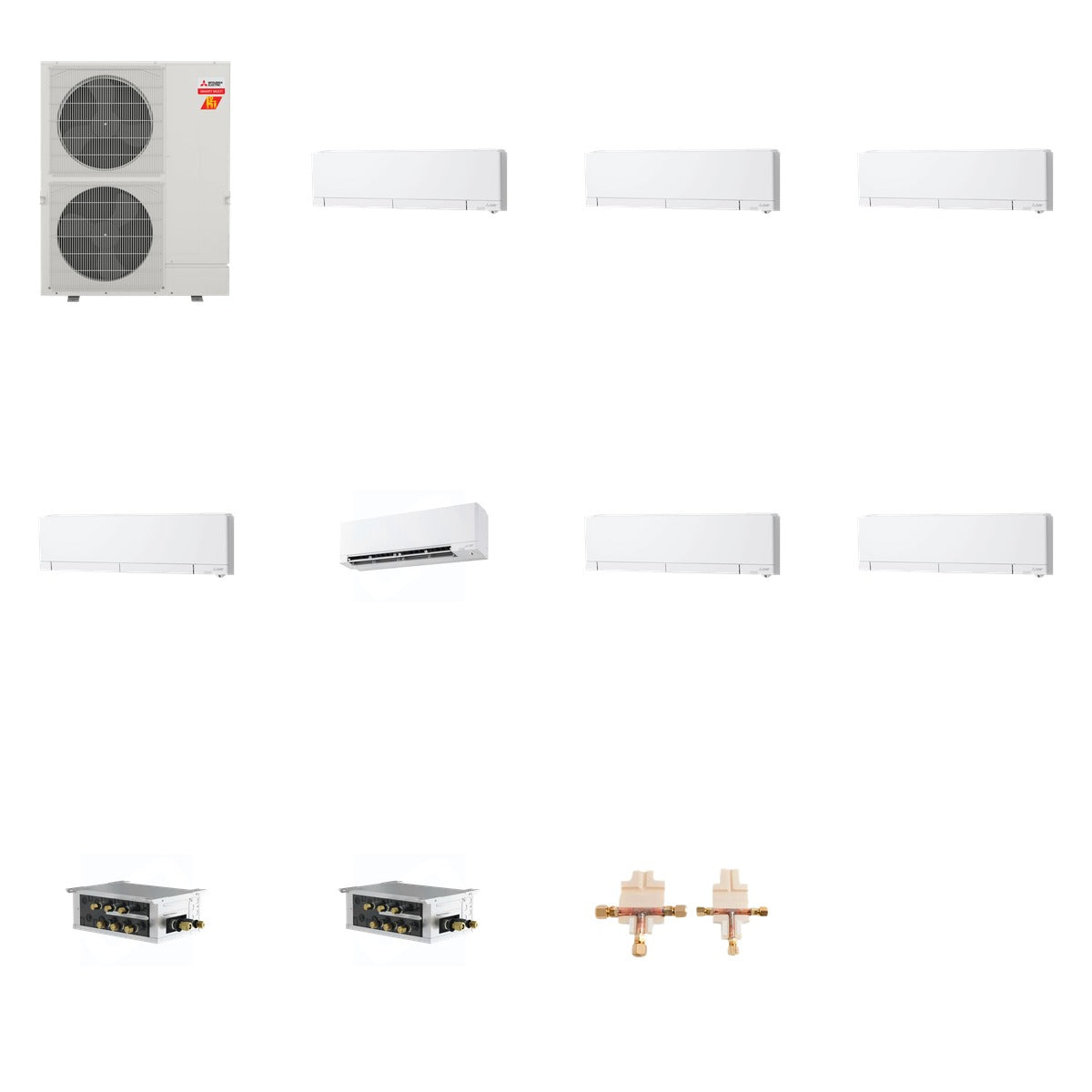

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 465.3 lb (Mitsubishi 225 lb + Mitsubishi 116 lb + Mitsubishi 36.4 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling Capacity, 66,000 BTU Heating Capacity, SEER2 up to 23
• MSZ-FX06NL: 6,000 BTU Cooling, 9,000 BTU Heating, SEER2 up to 35, Wi-Fi Enabled
• MSZ-FX09NL: 9,000 BTU Cooling, 12,000 BTU Heating, SEER2 up to 35, Wi-Fi Enabled
• MSZ-FX12NL: 12,000 BTU Cooling, 13,200 BTU Heating, SEER2 up to 35, Wi-Fi Enabled
• PAC-LMA50BC: 5 Ports, 208/230 Volts, Compatible with MXZ models
• PAC-LMA30BC: 3 Ports, 208/230 Volts, Compatible with R454B refrigerant
• MSDD-50AR2-E: Flare Connection, Oxygen-Free Copper, Compatible with R-410A/R-454B

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling solutions for various indoor environments. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI systems, ensuring optimal performance and flexibility for both residential and commercial applications.
