Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+6K+9K+9K

Description

This comprehensive Mitsubishi Electric bundle is designed for optimal performance in multi-zone HVAC systems, providing efficient heating and cooling solutions for both residential and commercial applications. The MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units, while the MSZ-FX06NL and MSZ-FX09NL wall-mounted air handlers offer flexible installation options with advanced features for enhanced comfort. The PAC-LMA50BC and PAC-LMA30BC branch boxes ensure effective refrigerant distribution, and the MSDD-50AR2-E branch pipe distribution kit simplifies installation, making this bundle a complete solution for any multi-zone setup.

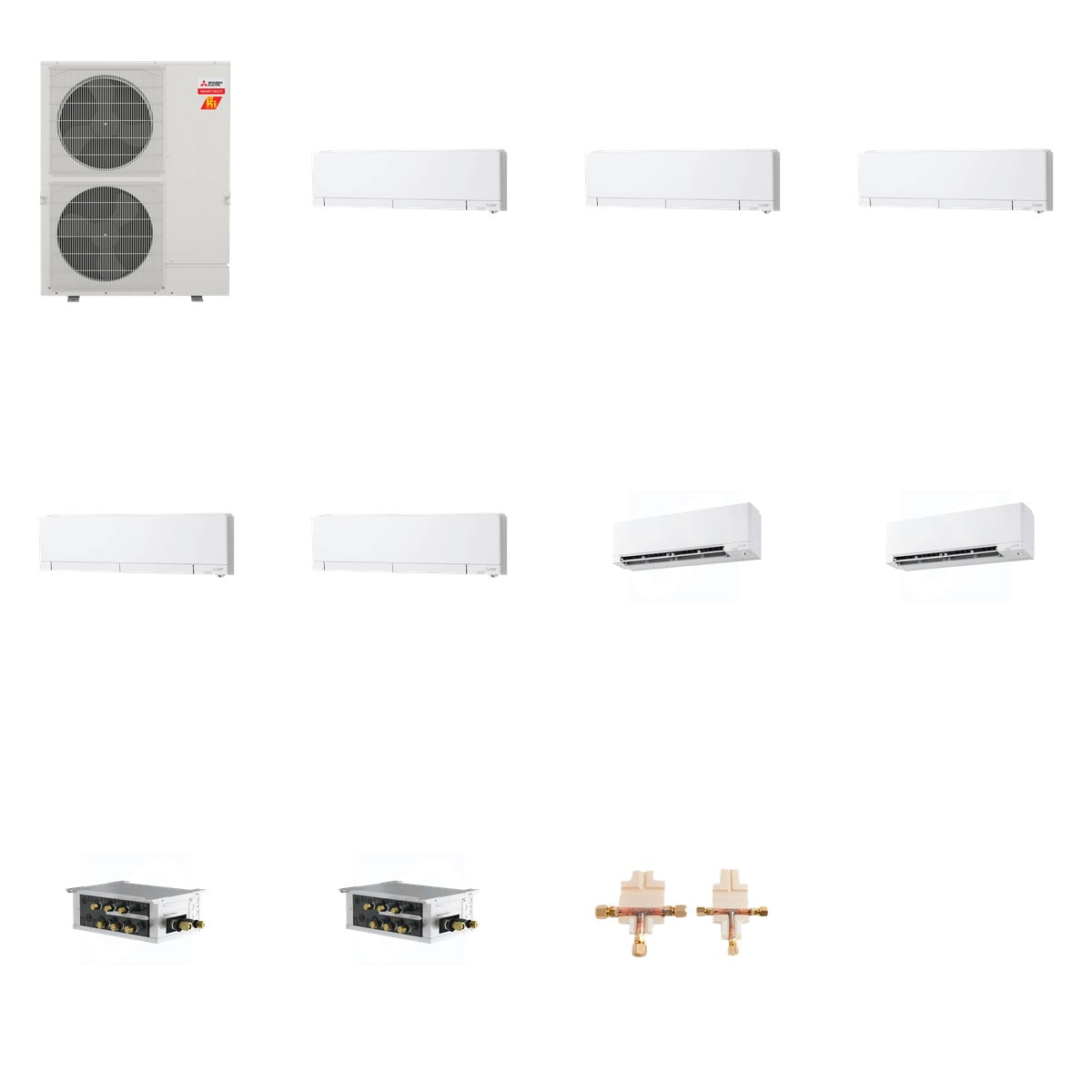

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x5)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 457.9 lb (Mitsubishi 225 lb + Mitsubishi 145 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU cooling capacity, 66,000 BTU heating capacity, SEER2 up to 23
• MSZ-FX06NL: 6,000 BTU cooling, 9,000 BTU heating, SEER2 up to 35, minimum sound level 20 dB
• MSZ-FX09NL: 9,000 BTU cooling, 12,000 BTU heating, SEER2 up to 35, minimum sound level 20 dB
• PAC-LMA50BC: 5 ports, compatible with MXZ model, 208/230V
• PAC-LMA30BC: 3 ports, compatible with R454B, 208/230V
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A and R-454B

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, allowing for customized heating and cooling across various indoor spaces. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI systems, making them ideal for both residential and commercial installations.
