Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+6K+9K+18K

Description

This comprehensive bundle features a selection of high-performance Mitsubishi Electric HVAC components designed to provide efficient heating and cooling for both residential and commercial applications. The MXZ-SM60NL multi-zone outdoor unit serves as the powerhouse, capable of supporting multiple indoor units for customized climate control. Paired with the MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX18NL wall-mounted air handlers, this bundle ensures optimal comfort across various room sizes. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit enhances system efficiency. Together, these products create a versatile and effective solution for any multi-zone heating and cooling needs.

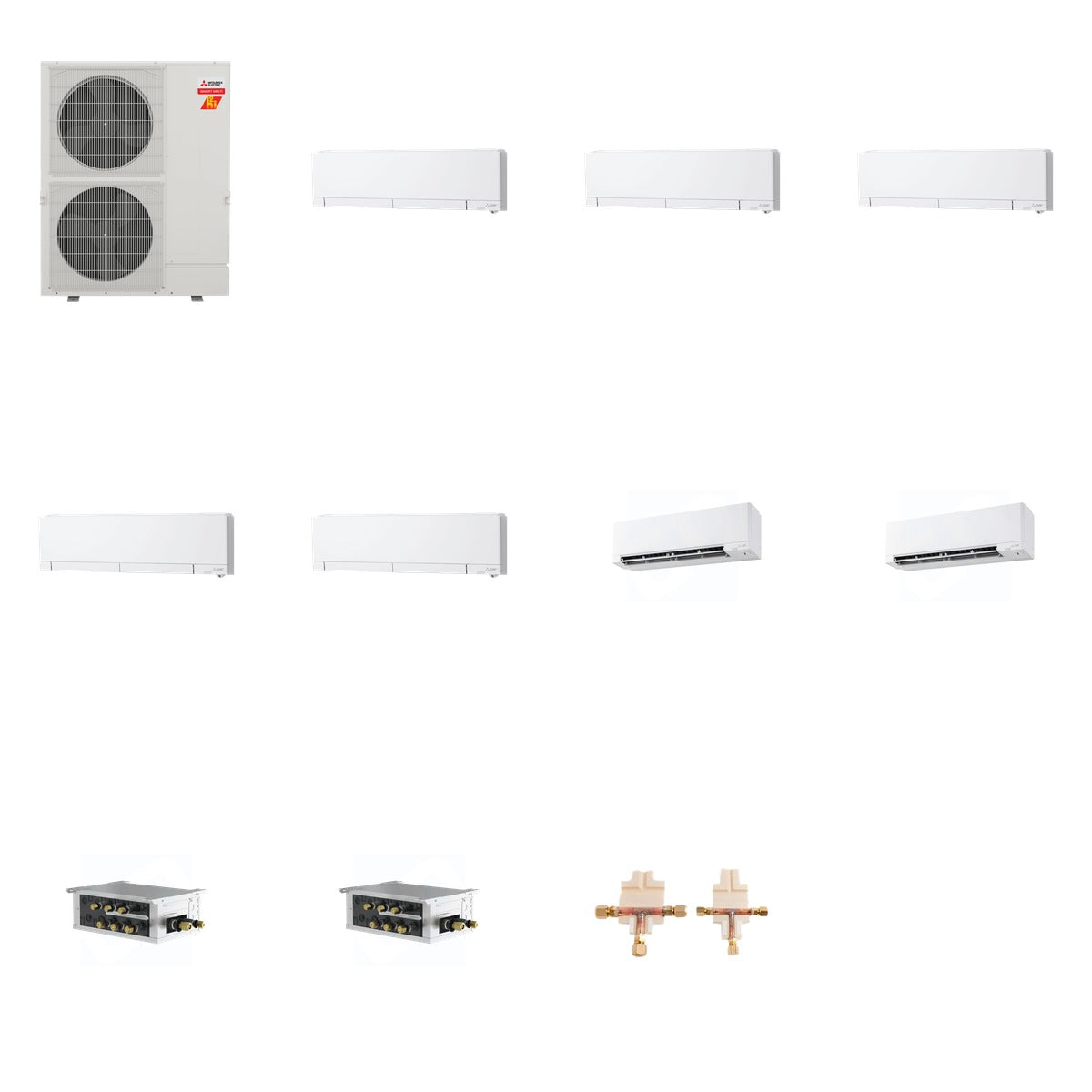

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x5)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Mitsubishi Electric MSZ-FX18NL FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 457.9 lb (Mitsubishi 225 lb + Mitsubishi 145 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU cooling capacity, 66,000 BTU heating capacity, SEER2 up to 23
• MSZ-FX06NL: 6,000 BTU cooling, 9,000 BTU heating, SEER2 up to 35, 208/230V
• MSZ-FX09NL: 9,000 BTU cooling, 12,000 BTU heating, SEER2 up to 35, 208/230V
• MSZ-FX18NL: 18,000 BTU cooling, 17,000 BTU heating, SEER up to 25.5, 208/230V
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ models
• PAC-LMA30BC: 3 ports, 208/230V, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B refrigerants

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling solutions for various indoor environments. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the branch boxes and distribution kit facilitate optimal refrigerant flow and system performance.
