Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+6K+9K+15K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial spaces. Featuring the Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, this bundle allows for seamless integration with multiple indoor units, ensuring customized climate control across various zones. The included MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX15NL wall-mounted air handlers deliver exceptional performance with advanced filtration systems and smart technology for user convenience. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe kit ensures reliable connections. Together, these components create a robust and flexible HVAC system tailored to meet diverse heating and cooling needs.

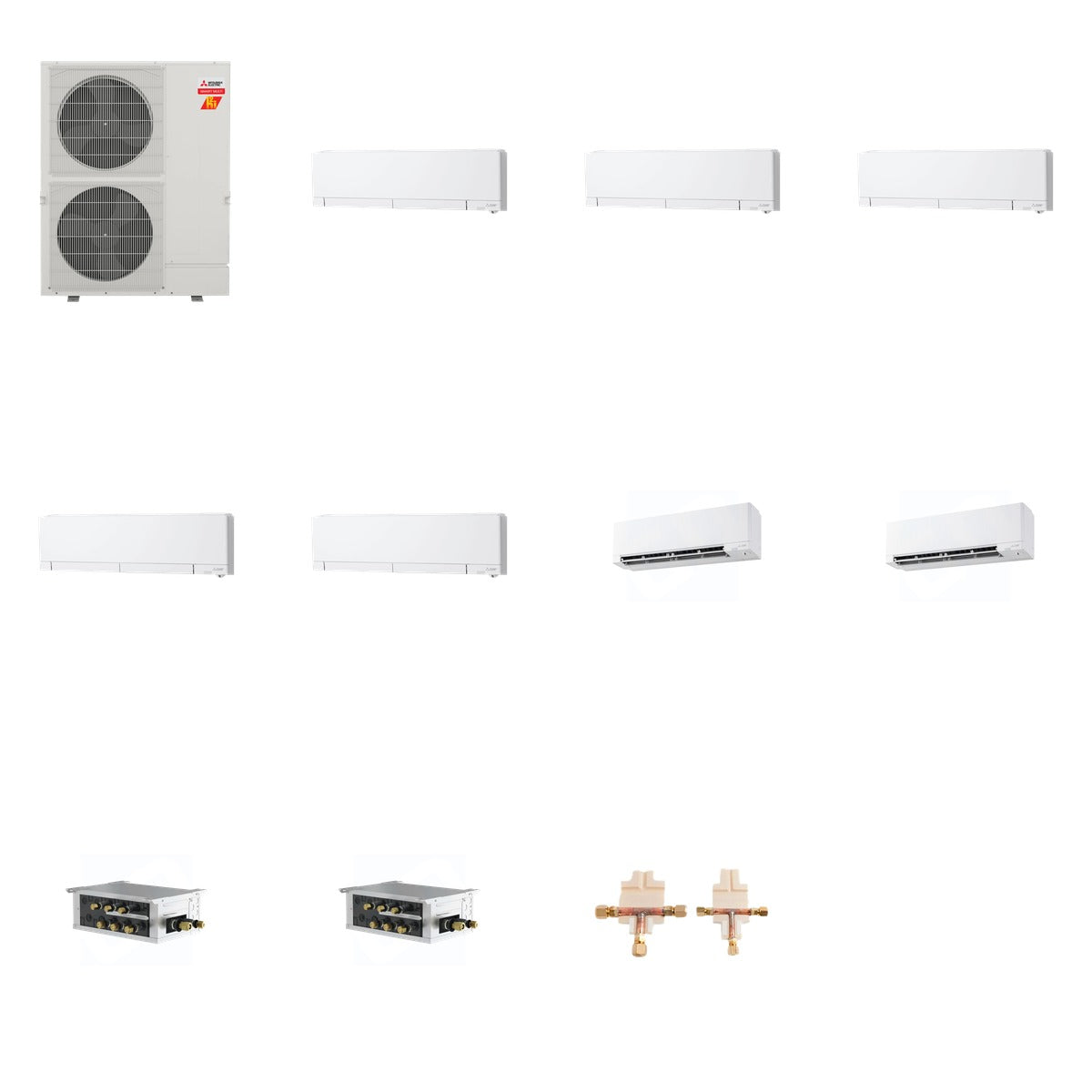

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x5)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 457.9 lb (Mitsubishi 225 lb + Mitsubishi 145 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton capacity, R454B refrigerant
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, 208/230V, 12" H x 39.27" W x 9.75" D
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, 208/230V, 12" H x 39.27" W x 9.75" D
• MSZ-FX15NL: 15,000 BTU, SEER2 up to 20, 208/230V, 12" H x 39-9/32" W x 9-3/4" D
• PAC-LMA50BC: 5 ports, 208/230V, 6 3/4" H x 17 3/4" W x 11 1/16" D
• PAC-LMA30BC: 3 ports, 208/230V, 6 3/4" H x 17 3/4" W x 11 1/16" D
• MSDD-50AR2-E: Flare connection, R-410A/R-454B compatible, 11.5" L x 6.2" W x 4.8" H

Use & Compatibility

This bundle is ideal for both residential and commercial HVAC applications, providing versatile heating and cooling solutions. The outdoor unit is compatible with various M-Series indoor units, allowing for multi-zone configurations. The branch boxes and distribution kit ensure efficient refrigerant management and optimal performance across connected indoor units.
