Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+6K+6K+12K

Description

This comprehensive bundle features essential components for creating a highly efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump serves as the powerhouse, capable of supporting multiple indoor units. Paired with the MSZ-FX06NL and MSZ-FX12NL wall-mounted air handlers, this setup provides versatile heating and cooling solutions for various room sizes. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe kit ensures seamless connections, enhancing system performance and reliability.

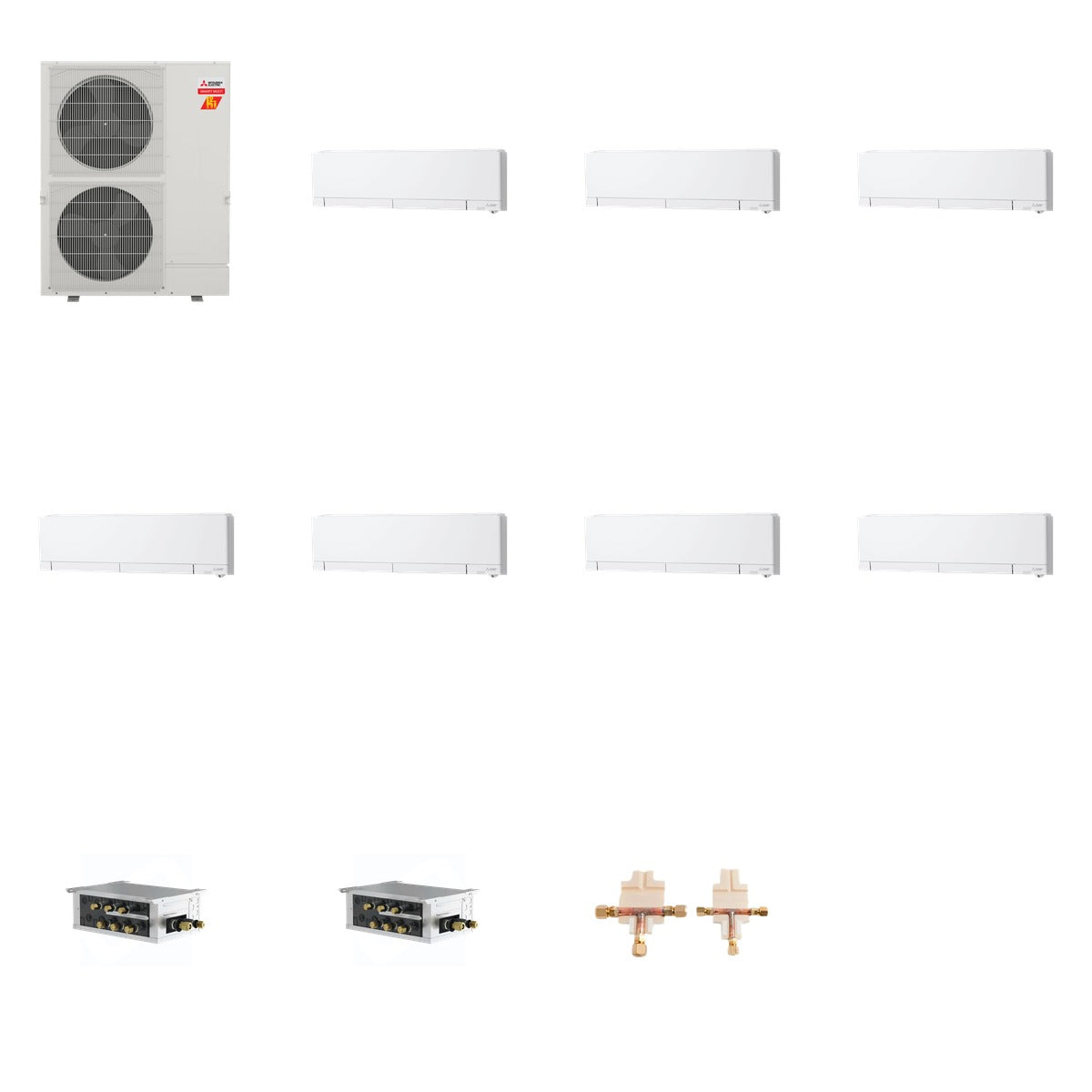

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x6)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 450.5 lb (Mitsubishi 225 lb + Mitsubishi 174 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling Capacity, 66,000 BTU Heating Capacity, SEER2 up to 23
• MSZ-FX06NL: 6,000 BTU Cooling, 9,000 BTU Heating, SEER2 up to 35, 20-42 dB(A) noise level
• MSZ-FX12NL: 12,000 BTU Cooling, 13,200 BTU Heating, SEER2 up to 35, 20-44 dB(A) noise level
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ model units
• PAC-LMA30BC: 3 ports, 208/230V, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for both residential and commercial applications, providing efficient heating and cooling solutions across multiple zones. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI systems, ensuring seamless integration and optimal performance.
