Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+6K+15K+15K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, delivering robust heating and cooling capabilities across multiple zones. Paired with the MSZ-FX06NL and MSZ-FX15NL wall-mounted air handlers, this bundle ensures optimal comfort in various room sizes, from cozy bedrooms to expansive living areas. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit guarantees reliable performance. Together, these products provide a complete solution for both residential and commercial applications, ensuring energy efficiency and superior climate control.

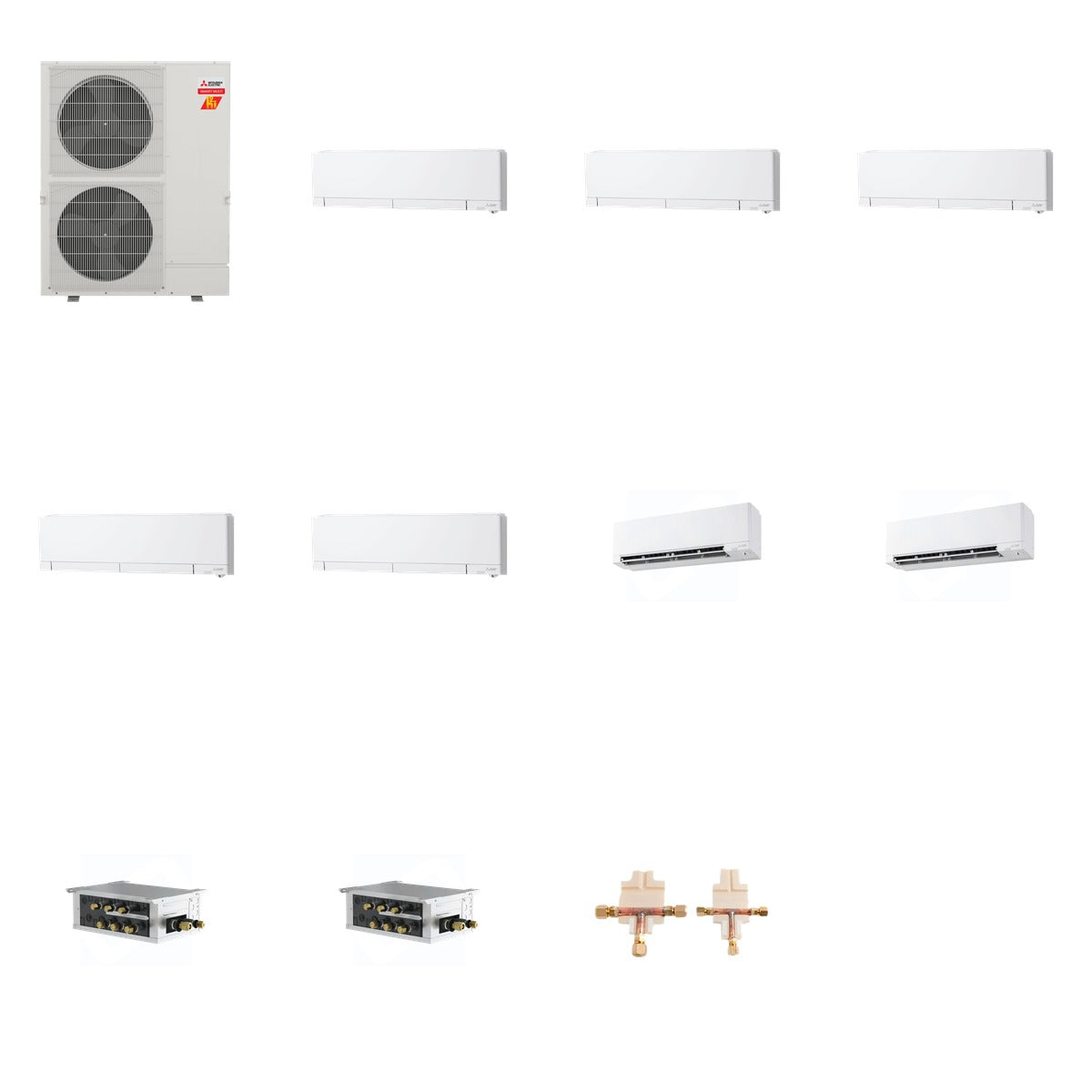

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x5)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 457.9 lb (Mitsubishi 225 lb + Mitsubishi 145 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL), 6,000 BTU (MSZ-FX06NL), 15,000 BTU (MSZ-FX15NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL), 9,000 BTU (MSZ-FX06NL), 18,000 BTU (MSZ-FX15NL)
• SEER2 Rating: Up to 23 (MXZ-SM60NL), Up to 35 (MSZ-FX06NL), Up to 20 (MSZ-FX15NL)
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Dimensions: MXZ-SM60NL - 41-11/32 in W x 13 in D x 52-11/16 in H; MSZ-FX06NL - 39.27 in W x 9.75 in D x 12 in H; MSZ-FX15NL - 39-9/32 in W x 9-3/4 in D x 12 in H
• Sound Level: As low as 20 dB(A) (MSZ-FX06NL), 49 dB(A) (MSZ-FX15NL)
• Weight: MXZ-SM60NL - 120 lbs; MSZ-FX06NL - 36.4 lbs; MSZ-FX15NL - 36.4 lbs; PAC-LMA50BC - 16 lbs; PAC-LMA30BC - 15 lbs; MSDD-50AR2-E - 2.4 lbs

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, ideal for both residential and commercial applications. The outdoor unit connects seamlessly with the included wall-mounted air handlers, providing customizable heating and cooling solutions. The branch boxes and distribution kit ensure efficient refrigerant flow and temperature control across multiple indoor units, making this setup perfect for diverse environments.
