Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+15K+15K+15K

Description

This comprehensive HVAC bundle from Mitsubishi Electric is designed to provide efficient heating and cooling solutions for both residential and commercial applications. The MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit serves as the powerhouse, capable of connecting to multiple indoor units for customized climate control. Complementing this outdoor unit are the MSZ-FX06NL and MSZ-FX15NL wall-mounted air handlers, which deliver exceptional performance and quiet operation. The PAC-LMA50BC and PAC-LMA30BC branch boxes ensure optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit enhances system efficiency. Together, these components create a versatile and effective multi-zone HVAC system that meets diverse heating and cooling needs.

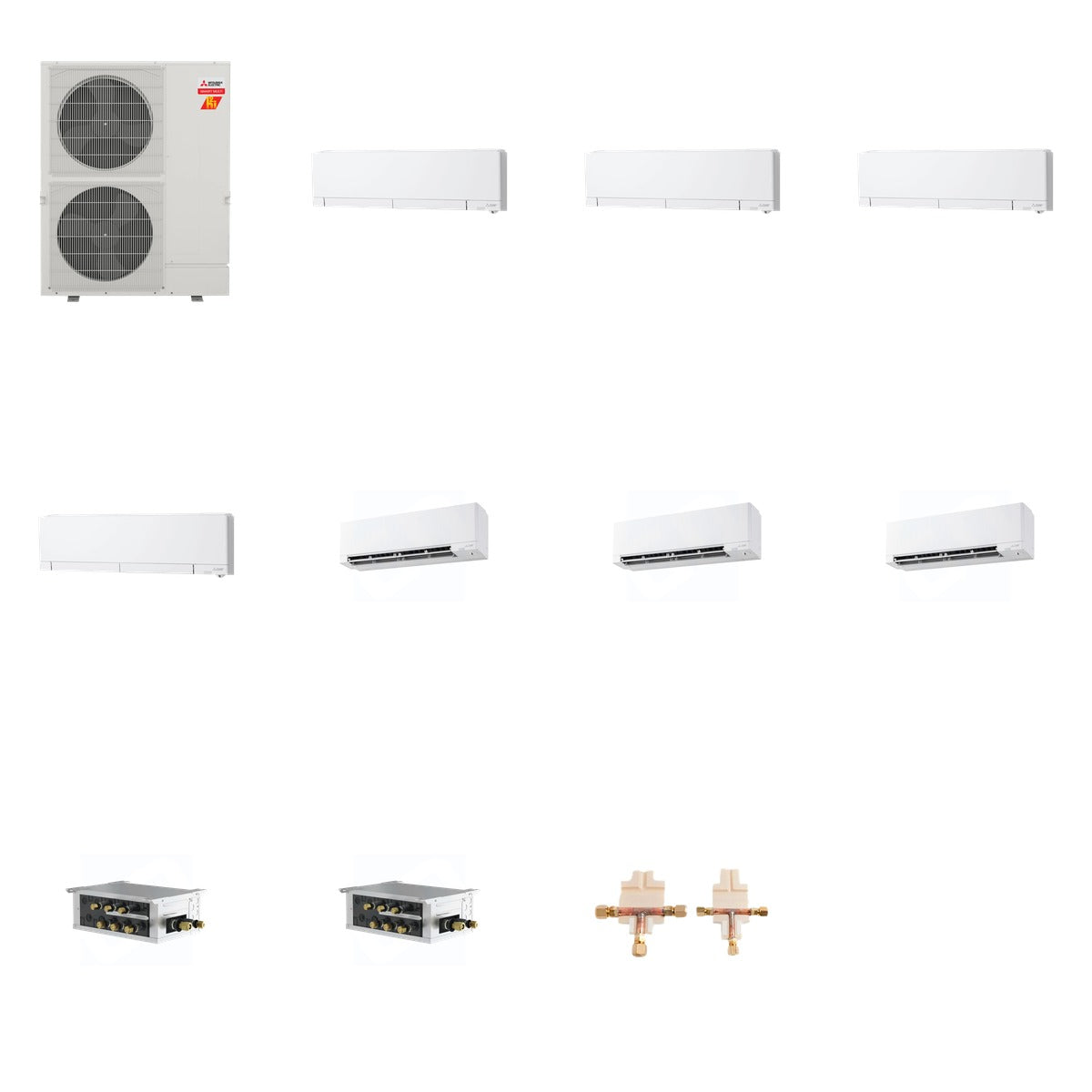

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX15NL - FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 465.3 lb (Mitsubishi 225 lb + Mitsubishi 116 lb + Mitsubishi 109.2 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Wall Mounted Unit Capacities: 6,000 BTU (MSZ-FX06NL), 15,000 BTU (MSZ-FX15NL)
• SEER2 Rating: Up to 35 (MSZ-FX06NL)
• Voltage: 208/230 Volts
• Refrigerant Type: R-454B
• Sound Level: As low as 20 dB (MSZ-FX06NL)
• Dimensions: Various (refer to individual units)

Use & Compatibility

This bundle is ideal for creating a multi-zone climate control system, suitable for both residential and commercial environments. The outdoor unit is compatible with various indoor units from the M-Series and P-Series lines, allowing for flexible installation options. The branch boxes and distribution kit facilitate efficient refrigerant management, ensuring optimal performance across all connected indoor units.
