Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+12K+15K+15K

Description

This comprehensive HVAC bundle features a selection of Mitsubishi Electric products designed to deliver efficient heating and cooling solutions for both residential and commercial applications. The MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit serves as the powerhouse, capable of connecting to multiple indoor units for customized climate control. Complementing this outdoor unit are the MSZ-FX06NL, MSZ-FX12NL, and MSZ-FX15NL wall-mounted air handlers, each providing advanced features such as built-in Wi-Fi, quiet operation, and high-efficiency ratings. To ensure optimal refrigerant flow, the bundle includes both the PAC-LMA50BC and PAC-LMA30BC branch boxes, along with the MSDD-50AR2-E branch pipe distribution kit. Together, these components create a versatile and efficient multi-zone HVAC system that meets modern environmental standards.

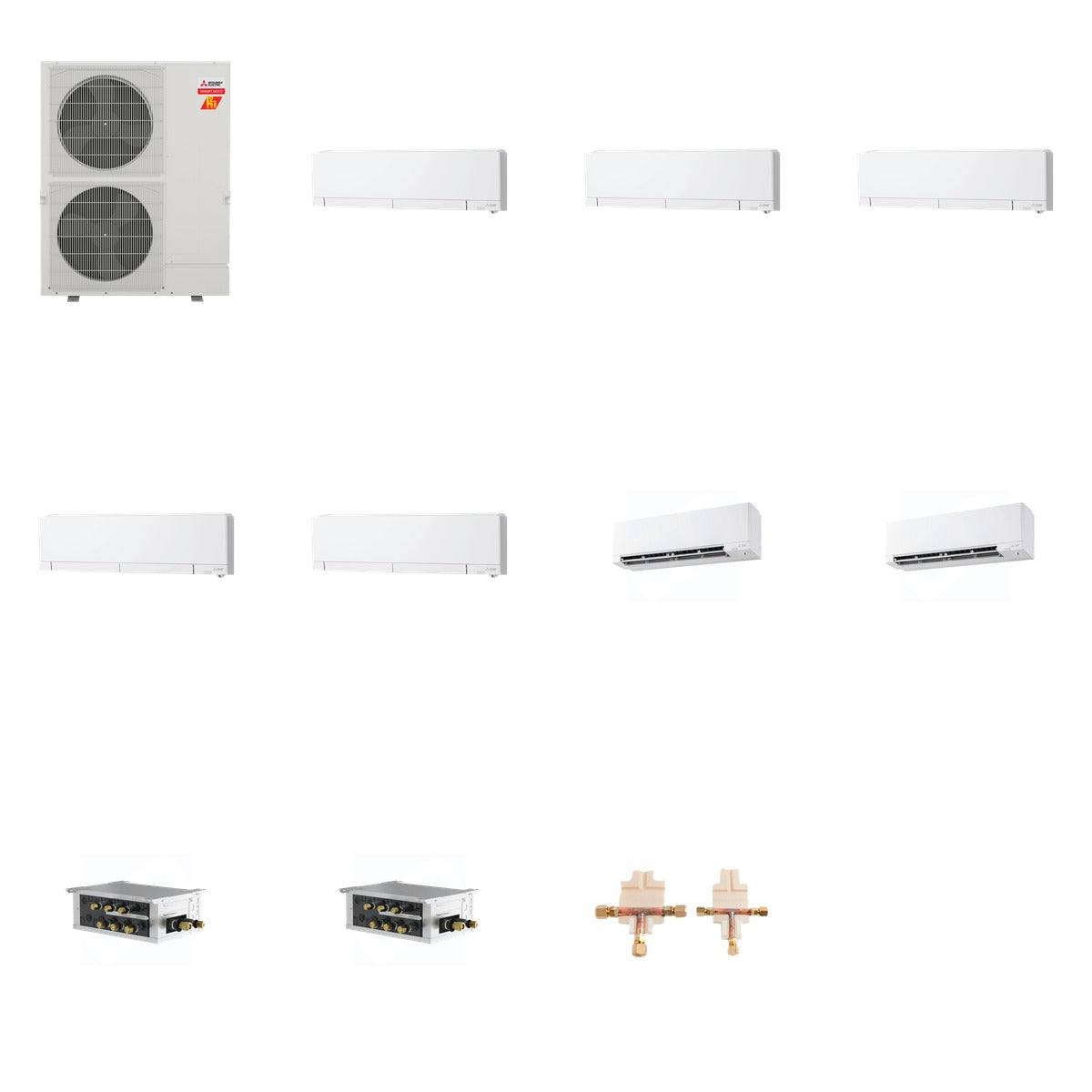

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 465.3 lb (Mitsubishi 225 lb + Mitsubishi 116 lb + Mitsubishi 36.4 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Wall-Mounted Units: 6,000 BTU (MSZ-FX06NL), 12,000 BTU (MSZ-FX12NL), 15,000 BTU (MSZ-FX15NL)
• SEER2 Rating: Up to 35 (MSZ-FX06NL, MSZ-FX12NL, MSZ-FX15NL)
• Refrigerant Type: R-454B
• Voltage: 208/230 Volts
• Sound Level: As low as 20 dB(A) (MSZ-FX06NL)
• Dimensions: Vary by unit; MXZ-SM60NL: 41-11/32" W x 13" D x 52-11/16" H

Use & Compatibility

This bundle is intended for use in multi-zone heating and cooling systems, making it ideal for both residential and commercial environments. The outdoor unit connects seamlessly with the included wall-mounted air handlers, providing efficient climate control tailored to individual spaces. The branch boxes and distribution kit enhance refrigerant management, ensuring optimal performance across all connected indoor units.
