Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+12K+12K+18K

Description

This comprehensive HVAC bundle includes everything you need to create an efficient and customizable multi-zone heating and cooling system. Featuring a powerful Mitsubishi Electric MXZ-SM60NL outdoor unit, this bundle is designed to work seamlessly with multiple indoor units, ensuring optimal comfort across various spaces. The included MSZ-FX series wall-mounted air handlers provide versatile heating and cooling options, equipped with advanced filtration and smart control capabilities. With branch boxes for effective refrigerant management, this bundle is perfect for both residential and commercial applications, delivering reliable performance and energy efficiency.

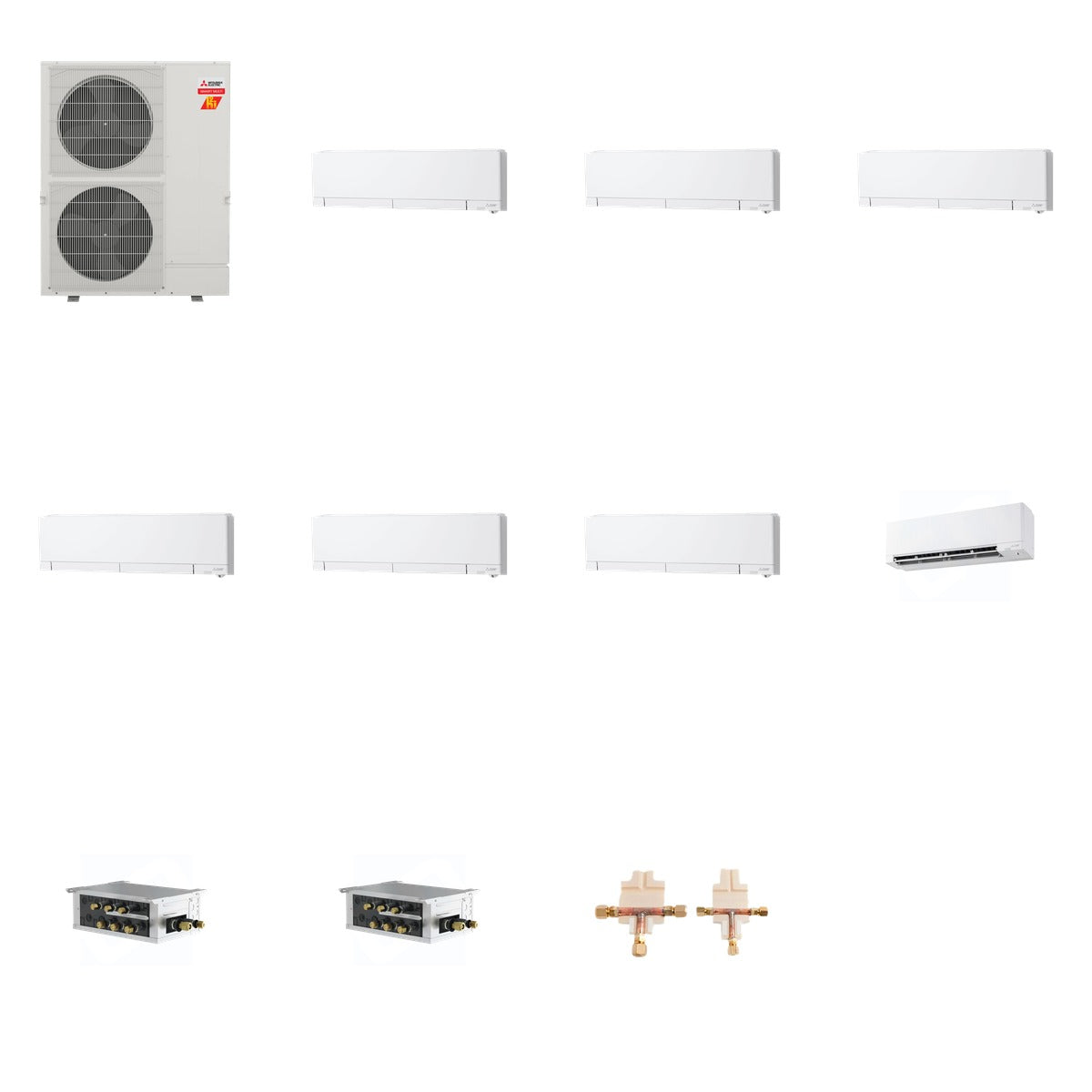

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Mitsubishi Electric MSZ-FX18NL FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 465.3 lb (Mitsubishi 225 lb + Mitsubishi 116 lb + Mitsubishi 72.8 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, 20-42 dB(A) noise level
• MSZ-FX12NL: 12,000 BTU, SEER2 up to 35, 20-44 dB(A) noise level
• MSZ-FX18NL: 18,000 BTU, SEER up to 25.5, 26-46 dB(A) noise level
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ models
• PAC-LMA30BC: 3 ports, 208/230V, supports R454B refrigerant
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R410A/R454B

Use & Compatibility

This bundle is ideal for creating a multi-zone HVAC system tailored to both residential and commercial environments. The outdoor unit connects to various indoor air handlers, allowing for customized climate control in different areas. The branch boxes and distribution kit ensure efficient refrigerant flow, making this setup compatible with Mitsubishi Electric's M-Series and CITY MULTI systems.
