Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+12K+12K+18K+18K

Description

This comprehensive HVAC bundle is designed for those seeking efficient heating and cooling solutions in both residential and commercial spaces. Featuring a powerful Mitsubishi Electric MXZ-SM60NL multi-zone heat pump outdoor unit, this bundle includes three wall-mounted air handlers (MSZ-FX06NL, MSZ-FX12NL, and MSZ-FX18NL) that provide flexible climate control across various zones. Additionally, the package contains essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) and a branch pipe distribution kit (MSDD-50AR2-E) to ensure optimal refrigerant flow and system performance. Together, these components create a versatile and efficient HVAC system tailored to meet diverse needs.

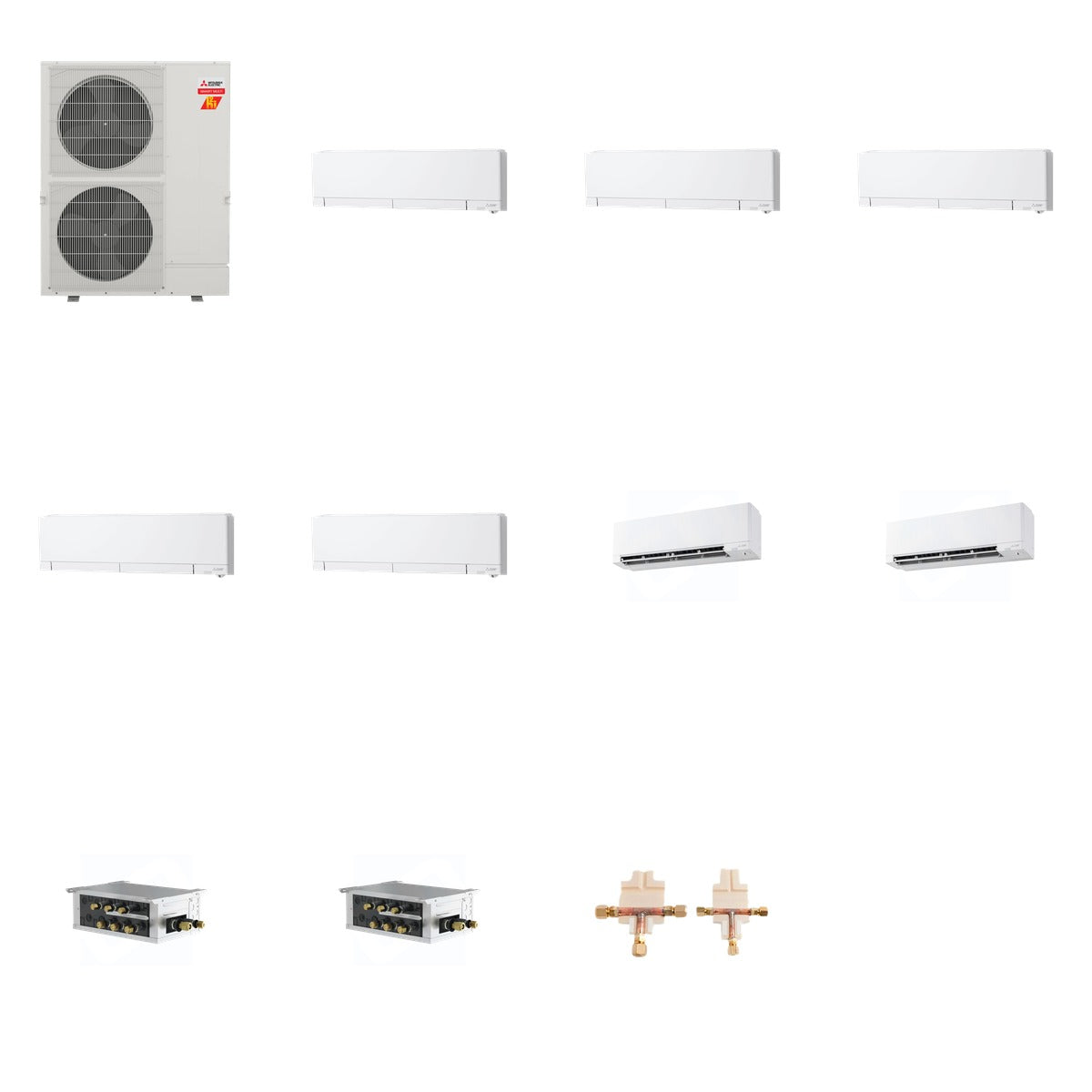

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Mitsubishi Electric MSZ-FX18NL FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 472.7 lb (Mitsubishi 225 lb + Mitsubishi 87 lb + Mitsubishi 72.8 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling Capacity, 66,000 BTU Heating Capacity, SEER2 up to 23
• MSZ-FX06NL: 6,000 BTU Cooling, 9,000 BTU Heating, SEER2 up to 35, 208/230V
• MSZ-FX12NL: 12,000 BTU Cooling, 13,200 BTU Heating, SEER2 up to 35, 208/230V
• MSZ-FX18NL: 18,000 BTU Cooling, 17,000 BTU Heating, SEER2 up to 25.5, 208/230V
• PAC-LMA50BC: 5 Ports, 208/230V, 60Hz
• PAC-LMA30BC: 3 Ports, 208/230V, 60Hz
• MSDD-50AR2-E: Flare Connection, Compatible with R-410A/R-454B

Use & Compatibility

This bundle is ideal for both residential and commercial HVAC applications, providing efficient heating and cooling across multiple zones. The outdoor unit is compatible with various indoor units, allowing for customized climate control. The branch boxes and distribution kit ensure optimal refrigerant management, making it suitable for both new installations and system upgrades.
