Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+12K+12K+12K+15K

Description

This comprehensive HVAC bundle features essential components designed to create an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units for customized climate control. The included MSZ-FX06NL, MSZ-FX12NL, and MSZ-FX15NL wall-mounted air handlers offer flexibility in heating and cooling various spaces, while the PAC-LMA50BC and PAC-LMA30BC branch boxes ensure optimal refrigerant distribution. This bundle is perfect for both residential and commercial applications, providing reliable performance and energy efficiency.

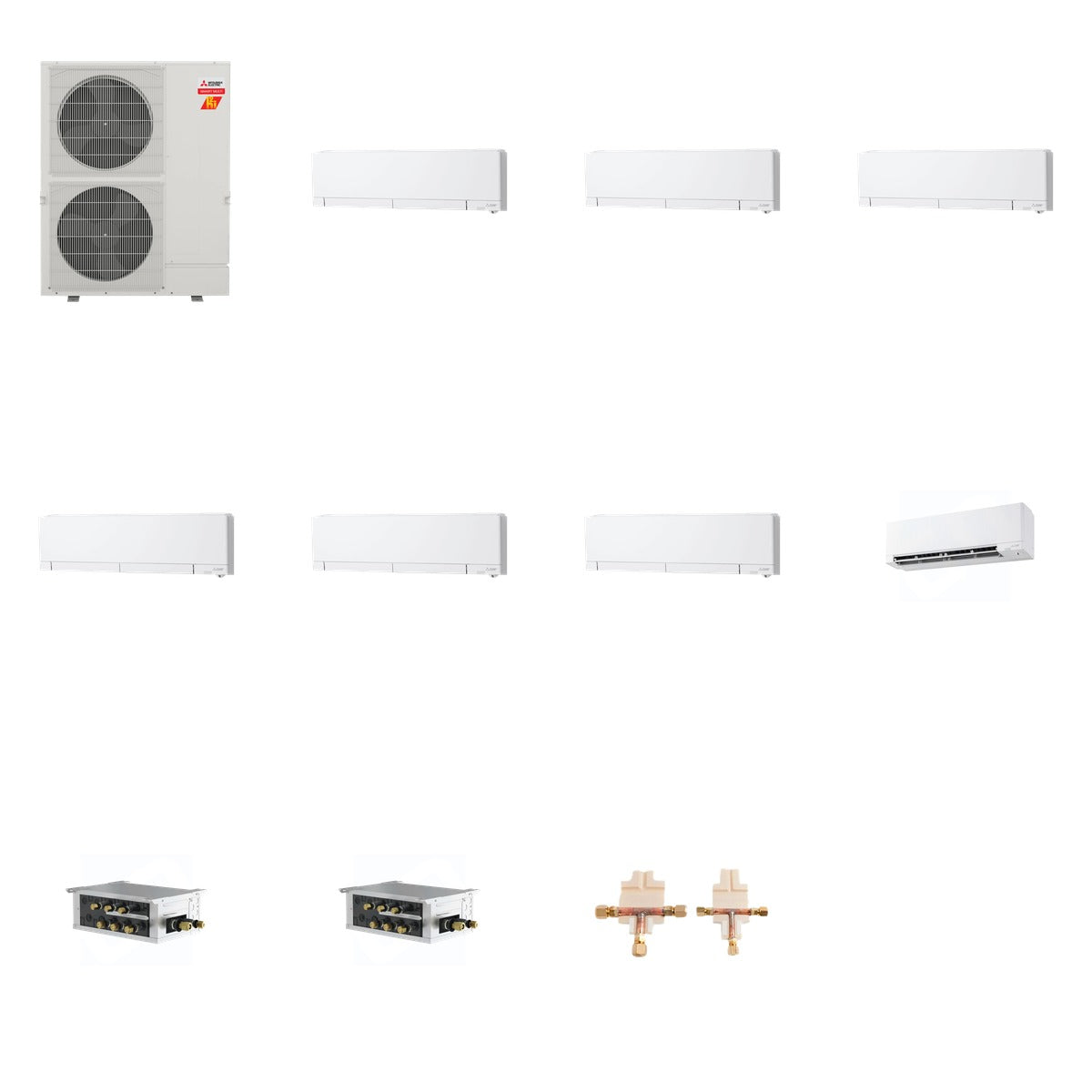

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 472.7 lb (Mitsubishi 225 lb + Mitsubishi 87 lb + Mitsubishi 109.2 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton capacity
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, 208/230V
• MSZ-FX12NL: 12,000 BTU, SEER2 up to 35, 208/230V
• MSZ-FX15NL: 15,000 BTU, SEER2 up to 20.0, 208/230V
• PAC-LMA50BC: 5 ports, 208/230V
• PAC-LMA30BC: 3 ports, 208/230V
• MSDD-50AR2-E: Flare connection, compatible with R-410A and R-454B

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling for residential and commercial spaces. The outdoor unit connects seamlessly with the indoor air handlers, while the branch boxes and distribution kit ensure optimal refrigerant flow and temperature control across multiple zones.
