Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+12K+12K+12K+12K+15K

Description

This comprehensive HVAC bundle features a selection of high-performance Mitsubishi Electric products designed to provide efficient heating and cooling for both residential and commercial spaces. The MXZ-SM60NL outdoor unit serves as the backbone of this multi-zone system, capable of connecting to multiple indoor units for customized climate control. Accompanied by the MSZ-FX06NL, MSZ-FX12NL, and MSZ-FX15NL wall-mounted air handlers, this bundle ensures optimal comfort across various room sizes. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant flow management, while the MSDD-50AR2-E distribution kit enhances installation efficiency. Together, these components create an advanced, energy-efficient HVAC solution tailored to meet diverse heating and cooling needs.

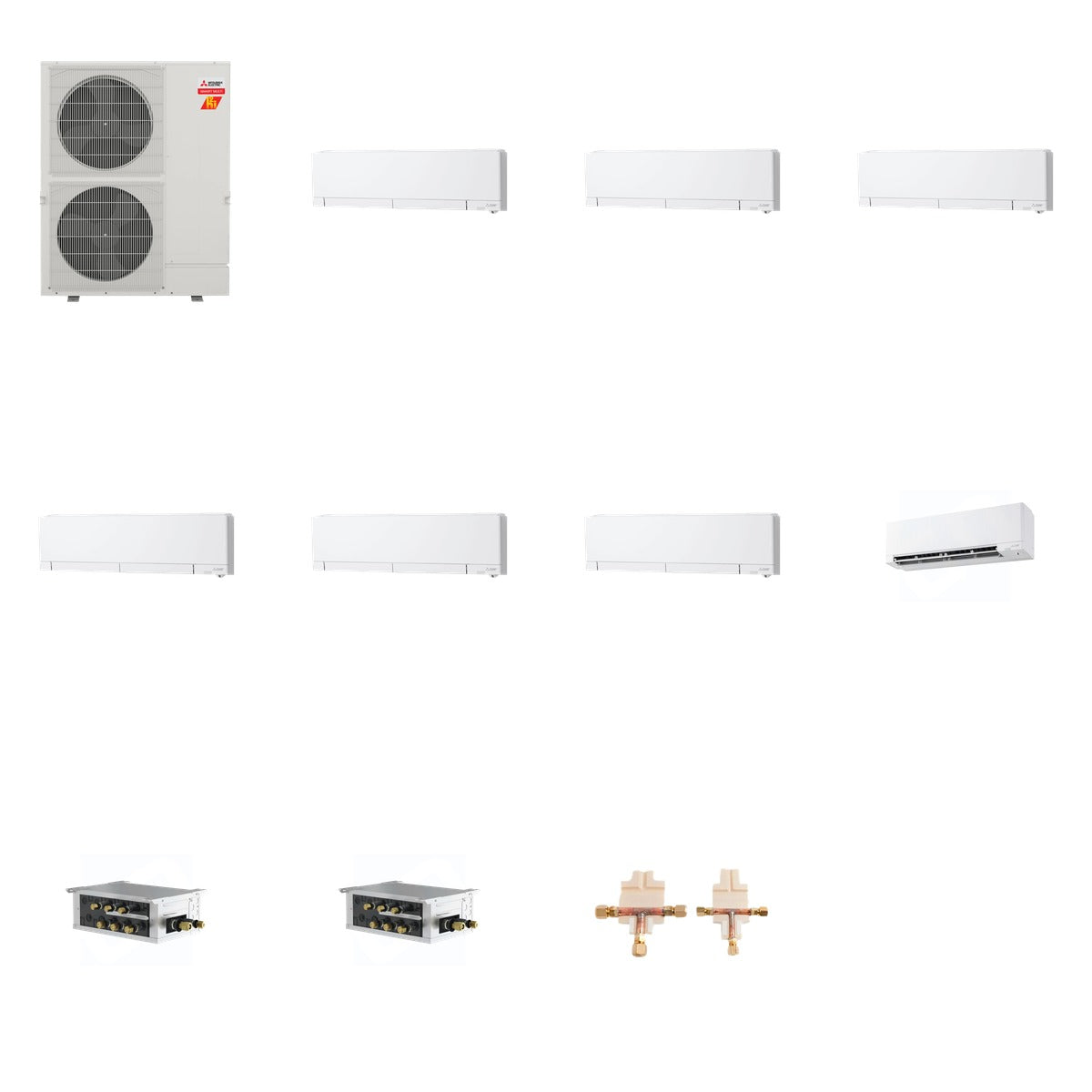

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 480.1 lb (Mitsubishi 225 lb + Mitsubishi 58 lb + Mitsubishi 145.6 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: Up to 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: Up to 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Cooling BTU: 6,000 (MSZ-FX06NL), 12,000 (MSZ-FX12NL), 15,000 (MSZ-FX15NL)
• SEER2 Rating: Up to 35 (MSZ-FX06NL, MSZ-FX12NL, MSZ-FX15NL)
• Refrigerant Type: R-454B
• Voltage: 208/230 Volts
• Sound Level: As low as 20 dB(A) (MSZ-FX06NL)
• Dimensions: Varies by unit; MXZ-SM60NL: 41-11/32" W x 13" D x 52-11/16" H

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling solutions for various indoor environments. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the included branch boxes and distribution kit ensure optimal refrigerant flow and system performance. Ideal for both residential and commercial applications, this bundle offers flexibility and advanced climate control capabilities.
