Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+9K+9K+9K+15K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial spaces. Featuring the Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, this package allows for seamless integration with multiple indoor units, ensuring customized comfort throughout your property. The included SLZ-AF09NL and SLZ-AF15NL ceiling cassette units fit perfectly into standard ceiling grids, providing versatile airflow options. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit ensures balanced performance across all connected units. Completing the bundle, the SLP-18FAU grille enhances air distribution, making this package an ideal choice for efficient climate control.

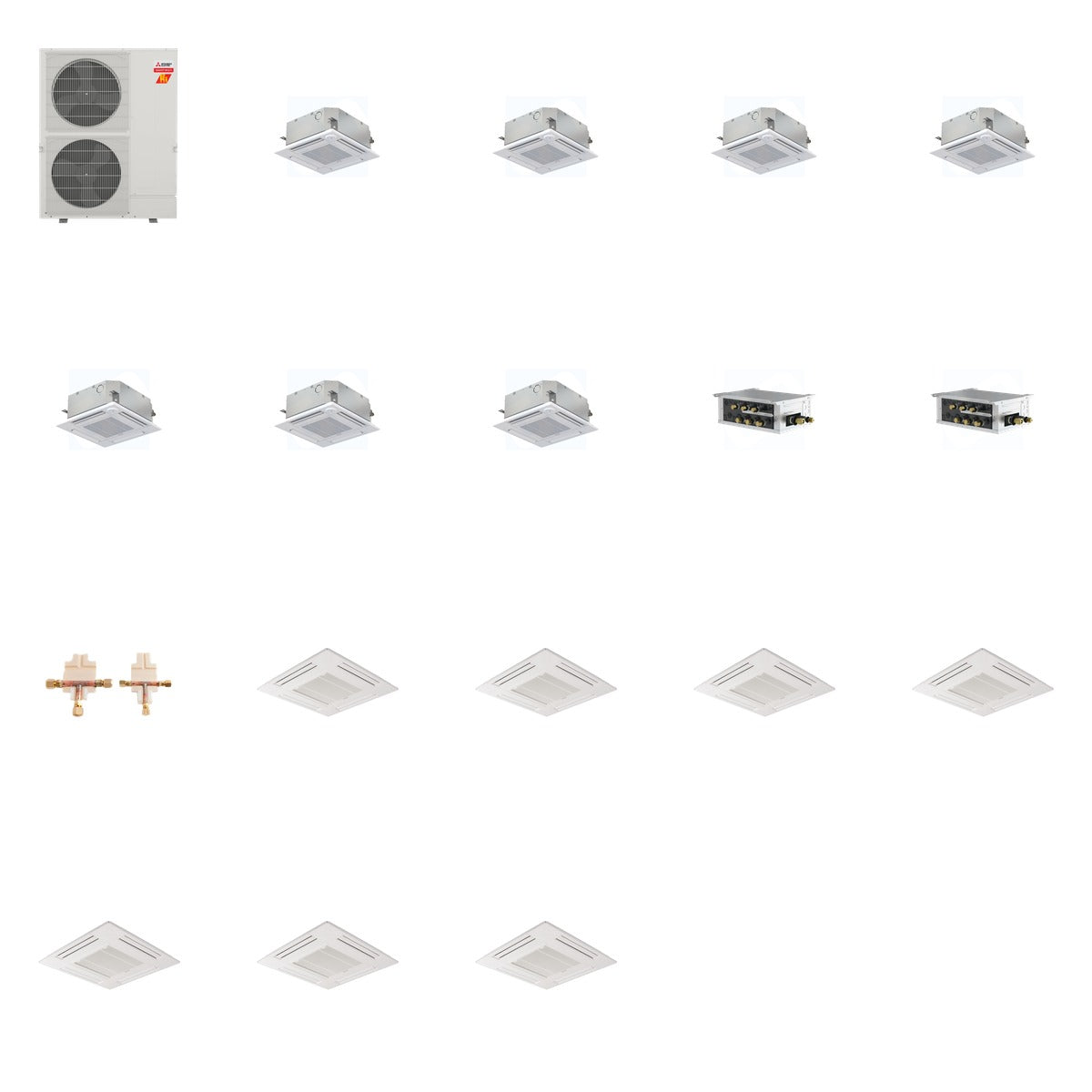

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Qty x6)
• MITSUBISHI ELECTRIC SLZ-AF15NL - Mitsubishi Electric SLZ-AF15NL M-Series - Multi or Single-Zone - 15k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x7)

Key Details

• Weight of Bundle: 520.1 lb (Mitsubishi 225 lb + Mitsubishi 198 lb + Mitsubishi 33 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 49 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• SLZ-AF09NL: 9,000 BTU cooling, 12,000 BTU heating, 208/230V
• SLZ-AF15NL: 15,000 BTU cooling, 18,000 BTU heating, 208/230V
• PAC-LMA50BC: 5 ports, 208/230V
• PAC-LMA30BC: 3 ports, 208/230V
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B
• SLP-18FAU: Grille for SLZ-AF series, 3 lbs

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor units. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI systems, ensuring optimal performance and flexibility for diverse installation environments.
