Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+9K+12K+12K+12K

Description

This comprehensive bundle features essential components for a multi-zone HVAC system, specifically designed to provide efficient heating and cooling solutions for both residential and commercial applications. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units, including the SLZ-AF09NL and SLZ-AF12NL ceiling cassettes, which offer customizable airflow options. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit ensures balanced performance across all connected indoor units. Completing the setup, the SLP-18FAU grille provides a sleek finish for the indoor units, making this bundle a perfect choice for efficient climate control.

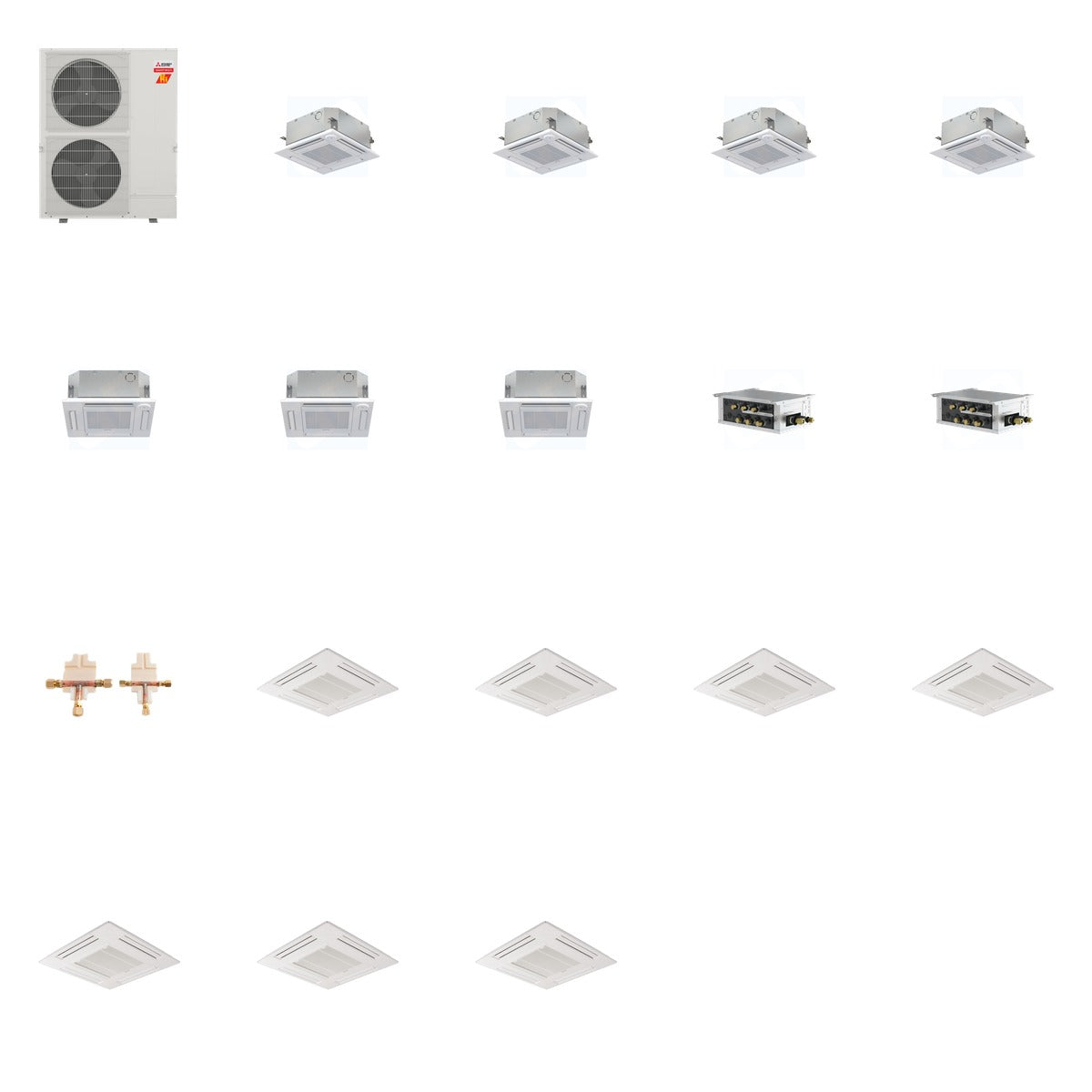

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Grille not included - SLP-18FAU) (Qty x4)
• MITSUBISHI ELECTRIC SLZ-AF12NL - Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Grille not included - SLP-18FAU) (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x7)

Key Details

• Weight of Bundle: 520.1 lb (Mitsubishi 225 lb + Mitsubishi 132 lb + Mitsubishi 99 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 49 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• SEER2: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230V (All units)
• Sound Level: As low as 25 dB(A) (SLZ-AF09NL)
• Dimensions: 41-11/32 x 13 x 52-11/16 inches (MXZ-SM60NL)
• Material: Oxygen-Free Copper (MSDD-50AR2-E)

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor units. Compatible with Mitsubishi Electric's M-Series and CITY MULTI systems, it is ideal for both residential and commercial environments, ensuring optimal air distribution and temperature control.
