Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+12K+12K+12K+15K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial applications. Featuring a powerful Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, this package allows for the connection of multiple indoor units, ensuring customized comfort across different spaces. The included SLZ-AF09NL, SLZ-AF12NL, and SLZ-AF15NL indoor units offer versatile installation options with advanced airflow control, while the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant distribution. Completing the bundle are the MSDD-50AR2-E branch pipe distribution kit and SLP-18FAU grille, ensuring a seamless and efficient HVAC setup.

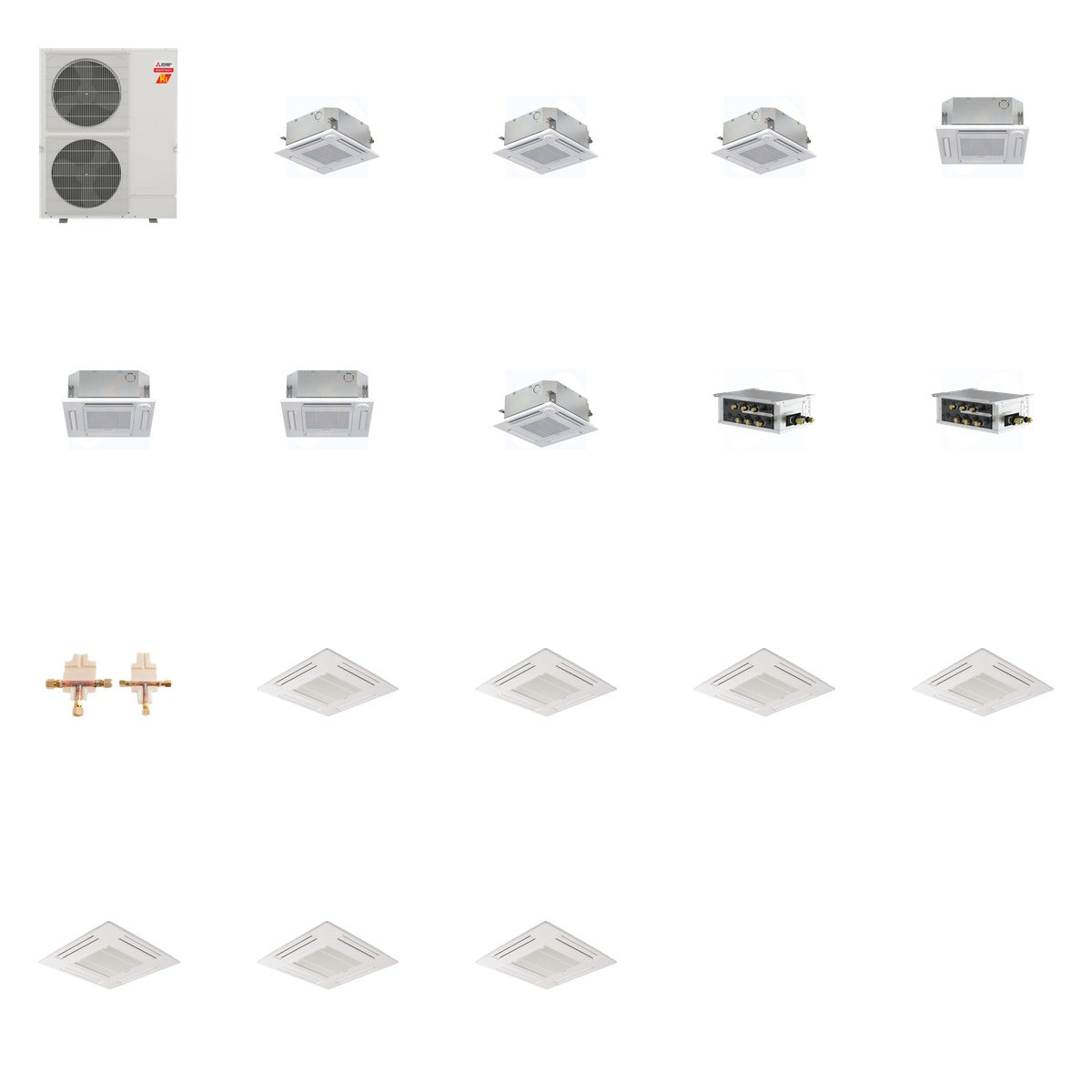

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - M-Series Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC SLZ-AF12NL - M-Series Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC SLZ-AF15NL - M-Series Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Grille for SLZ-AF Series (Qty x7)

Key Details

• Weight of Bundle: 520.1 lb (Mitsubishi 225 lb + Mitsubishi 99 lb + Mitsubishi 99 lb + Mitsubishi 33 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 49 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Units: 9,000 BTU to 15,000 BTU (SLZ-AF Series)
• SEER2: Up to 23 (MXZ-SM60NL)
• Refrigerant: R-454B
• Voltage: 208/230 Volts
• Dimensions: Vary by unit, e.g., 41-11/32 x 13 x 52-11/16 inches (MXZ-SM60NL)
• Material: Copper (MSDD-50AR2-E)

Use & Compatibility

This bundle is ideal for multi-zone HVAC systems, offering compatibility with various Mitsubishi Electric indoor units. The outdoor heat pump unit efficiently supports up to eight indoor units, while the branch boxes and distribution kit ensure balanced refrigerant flow. Perfect for both residential and commercial installations, this comprehensive solution provides customizable climate control tailored to your needs.
