Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+9K+12K+12K+12K+12K+12K

Description

This comprehensive bundle features the essential components for a fully integrated multi-zone HVAC system, designed by Mitsubishi Electric for optimal heating and cooling performance. The MXZ-SM60NL outdoor unit serves as the powerhouse, connecting seamlessly with multiple indoor units, including the SLZ-AF09NL and SLZ-AF12NL ceiling cassettes. These indoor units provide customizable airflow and efficient temperature control, making them suitable for both residential and commercial applications. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensure effective refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances system performance and installation efficiency. Finally, the SLP-18FAU grille complements the indoor units, ensuring a polished and functional air distribution solution.

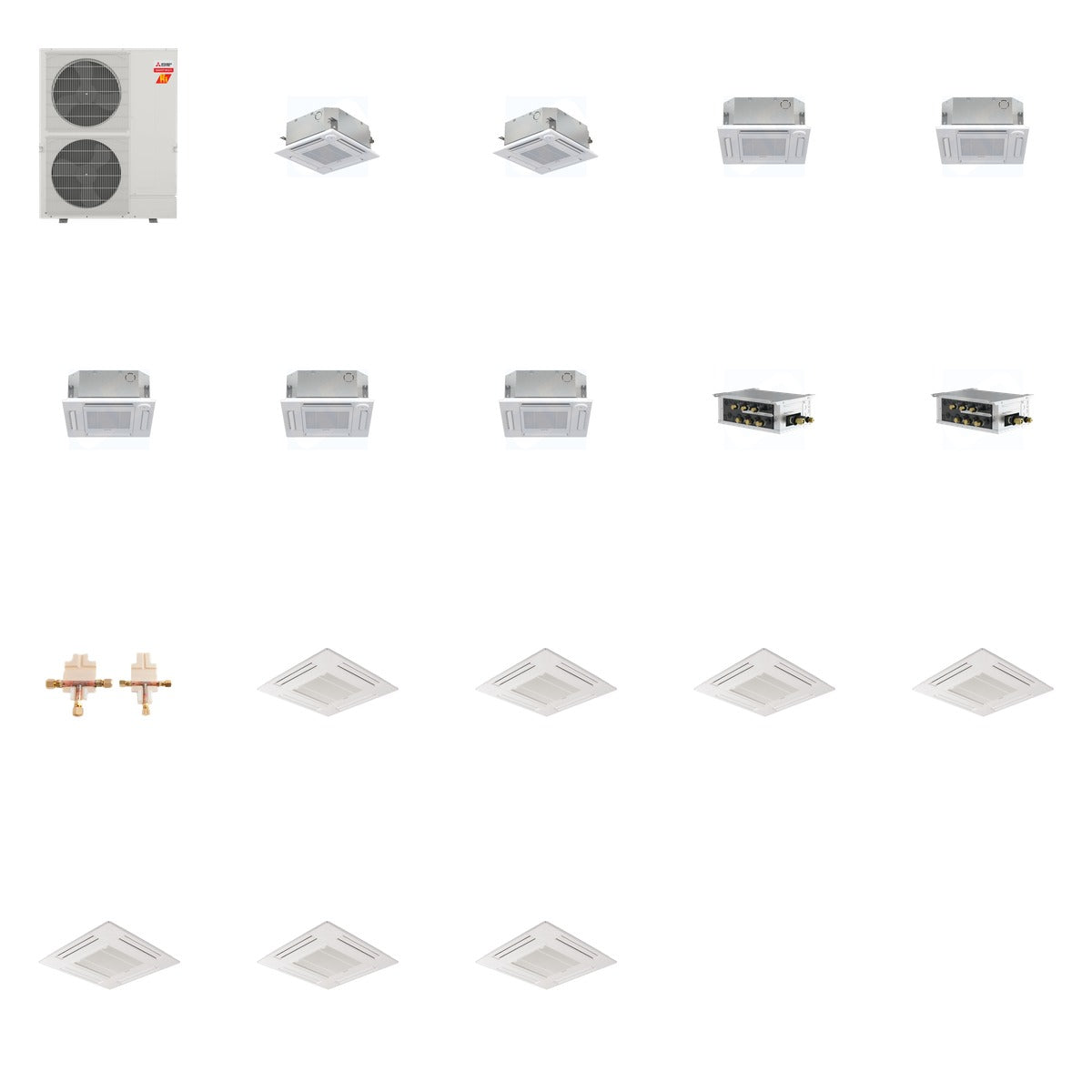

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - M-Series Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC SLZ-AF12NL - M-Series Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Grille for SLZ-AF Series (Qty x7)

Key Details

• Weight of Bundle: 520.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 165 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 49 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Cooling BTU: 9,000 (SLZ-AF09NL), 12,000 (SLZ-AF12NL)
• Refrigerant: R-454B
• Voltage: 208/230V
• Sound Level: As low as 25 dB(A) (SLZ-AF09NL)
• Dimensions (MXZ-SM60NL): 41-11/32" W x 13" D x 52-11/16" H
• AHRI Certified: Yes (SLZ-AF09NL, SLZ-AF12NL)

Use & Compatibility

This bundle is intended for use in multi-zone heating and cooling systems, ideal for both residential and commercial settings. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI indoor units, ensuring efficient operation and customizable comfort across various spaces.
