Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+9K+9K+9K+12K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, providing robust 60,000 BTU cooling and 66,000 BTU heating capacities. Paired with the versatile MLZ-KX09NL and MLZ-KX12NL ceiling cassette indoor units, this setup allows for customized climate control across various spaces. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant flow to multiple indoor units, ensuring balanced performance. Additionally, the MSDD-50AR2-E branch pipe distribution kit enhances system efficiency, while the MLP-449WU grille optimizes airflow for the indoor units. Together, these products create a cohesive and efficient HVAC solution suitable for both residential and commercial applications.

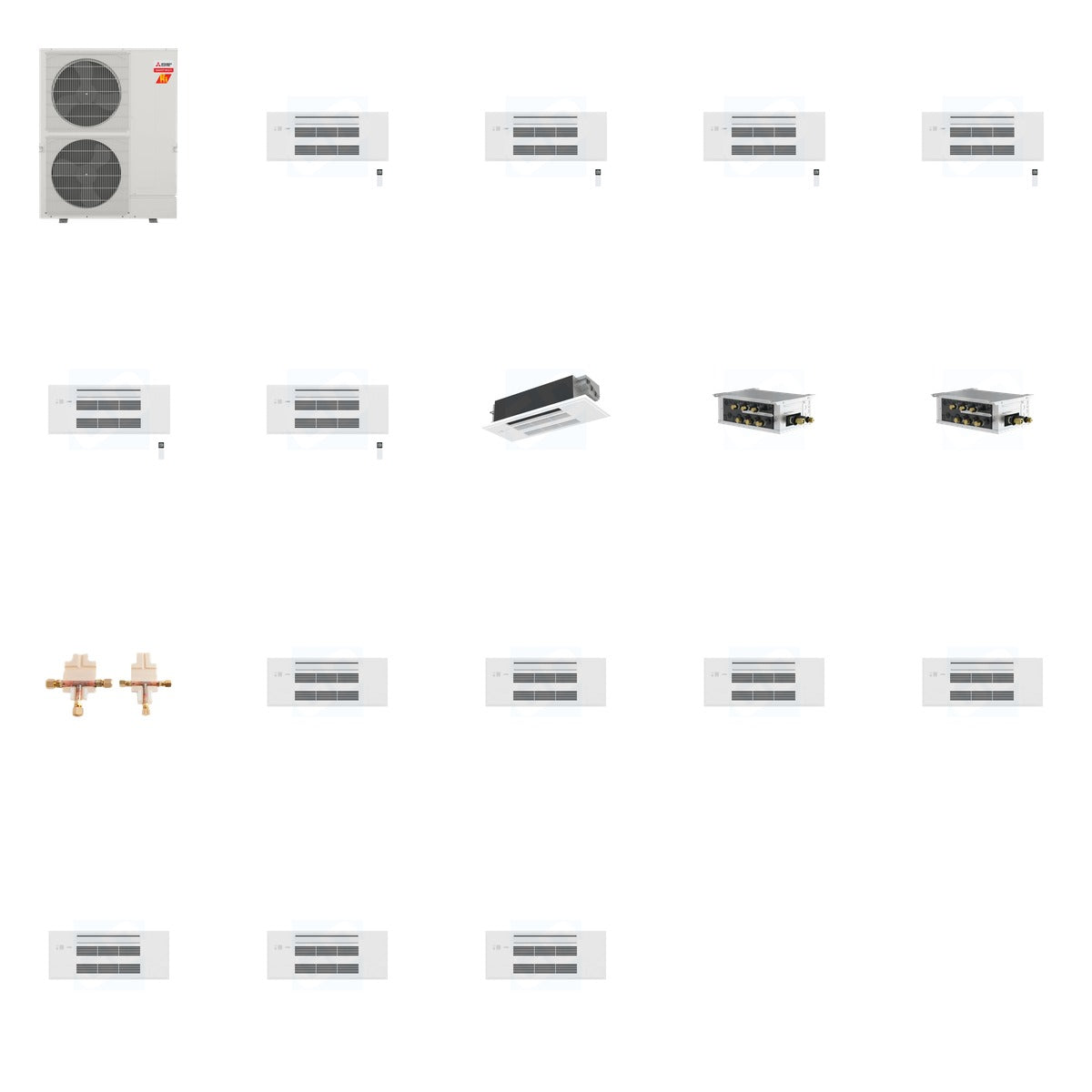

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x6)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x7)

Key Details

• Weight of Bundle: 364.1 lb (Mitsubishi 225 lb + Mitsubishi 20.0 lb + Mitsubishi 34 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 70 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Capacity: 9,000 BTU (MLZ-KX09NL), 12,000 BTU (MLZ-KX12NL)
• SEER2: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230V (All Units)
• Material: Copper (MSDD-50AR2-E)
• Dimensions: Varies by unit (see individual specifications)

Use & Compatibility

This bundle is designed for multi-zone HVAC systems, ideal for both residential and commercial applications. The outdoor unit connects seamlessly with multiple indoor units, providing efficient heating and cooling tailored to specific room requirements. Compatibility with R454B refrigerant ensures optimal performance across the entire system.
