Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+9K+9K+9K+9K+9K+18K

Description

This comprehensive HVAC bundle features a selection of high-performance Mitsubishi Electric products designed to create an efficient multi-zone heating and cooling system for both residential and commercial applications. The MXZ-SM60NL outdoor unit serves as the powerhouse, capable of supporting multiple indoor units, while the included ceiling cassette units (MLZ-KX06NL, MLZ-KX09NL, and MLZ-KX18NL) provide flexible installation options and customizable comfort. To ensure optimal refrigerant flow and system efficiency, the bundle also includes branch boxes (PAC-LMA50BC and PAC-LMA30BC) and a branch pipe distribution kit (MSDD-50AR2-E). With essential grilles (MLP-448WU and MLP-449WU) for proper air distribution, this bundle is perfect for creating a balanced and effective climate control solution.

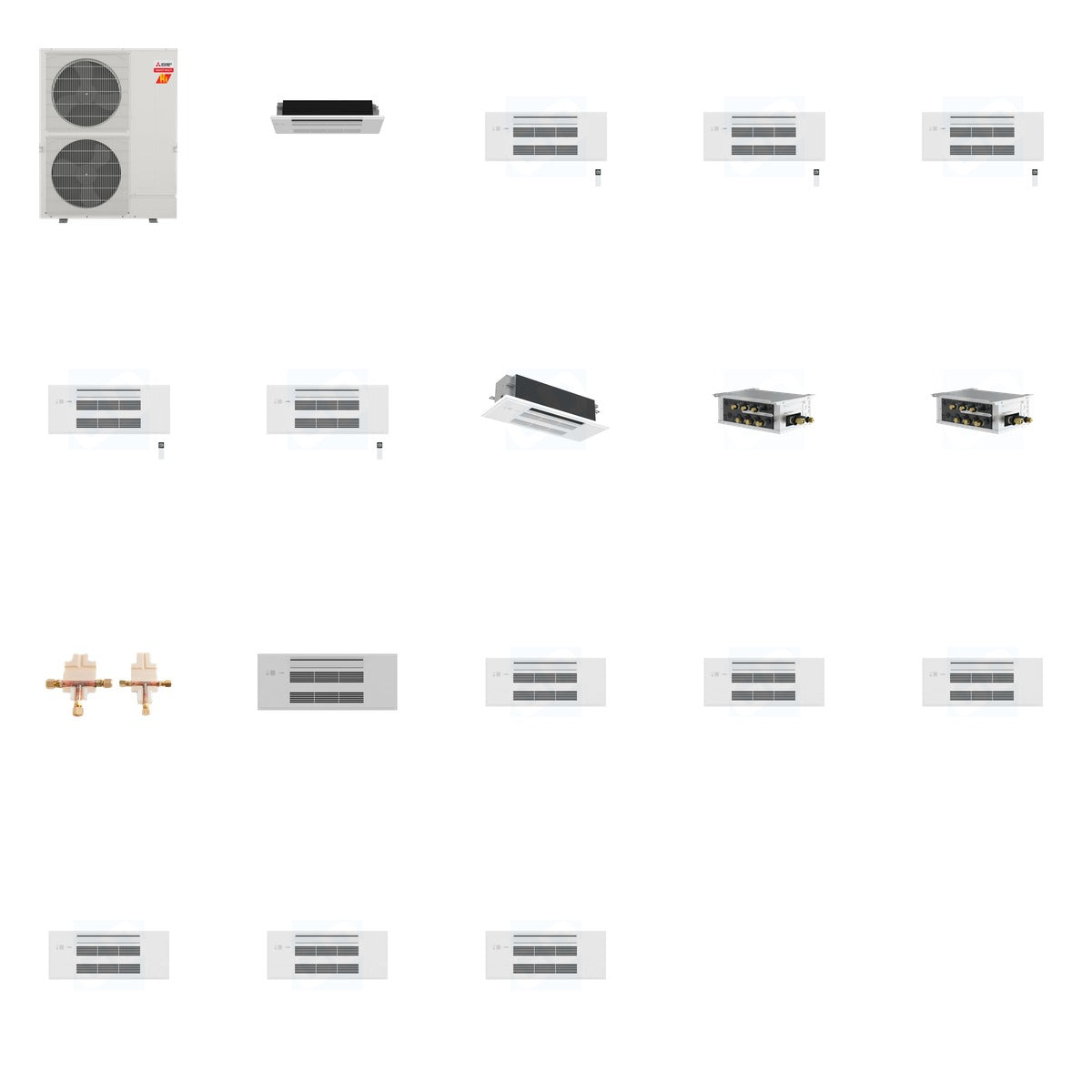

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX09NL - 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC MLZ-KX18NL - 18k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Grille for MLZ-KY Series (Qty x1)
• MITSUBISHI ELECTRIC MLP-449WU - Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x6)

Key Details

• Weight of Bundle: 361.1 lb (Mitsubishi 225 lb + Mitsubishi 34 lb + Mitsubishi 16.7 lb + Mitsubishi 3.3 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 7 lb + Mitsubishi 60 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• SEER2: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230 Volts (all units)
• Indoor Unit Airflow: 152-325 CFM (varies by model)
• Noise Level: 26-58 dB(A) (varies by model)
• Material: Copper (MSDD-50AR2-E), Plastic (Grilles)
• Dimensions: Vary by unit (see individual specs)

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing both heating and cooling capabilities. It is compatible with Mitsubishi Electric's M-Series and CITY MULTI indoor units, making it suitable for a variety of residential and commercial applications. The included branch boxes and distribution kit ensure efficient refrigerant management, while the grilles optimize airflow for enhanced system performance.
