Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+9K+9K+9K+9K+9K+12K

Description

This comprehensive bundle is designed for those looking to enhance their HVAC systems with high-efficiency components from Mitsubishi Electric. The MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit serves as the powerhouse, capable of connecting to multiple indoor units for customized heating and cooling solutions. Paired with the MLZ-KX06NL, MLZ-KX09NL, and MLZ-KX12NL ceiling cassette indoor units, this setup ensures optimal comfort across various spaces. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit ensures balanced performance. Completing the bundle, the MLP-448WU and MLP-449WU grilles optimize airflow, enhancing system efficiency. Together, these components create a versatile and efficient multi-zone HVAC solution suitable for both residential and commercial applications.

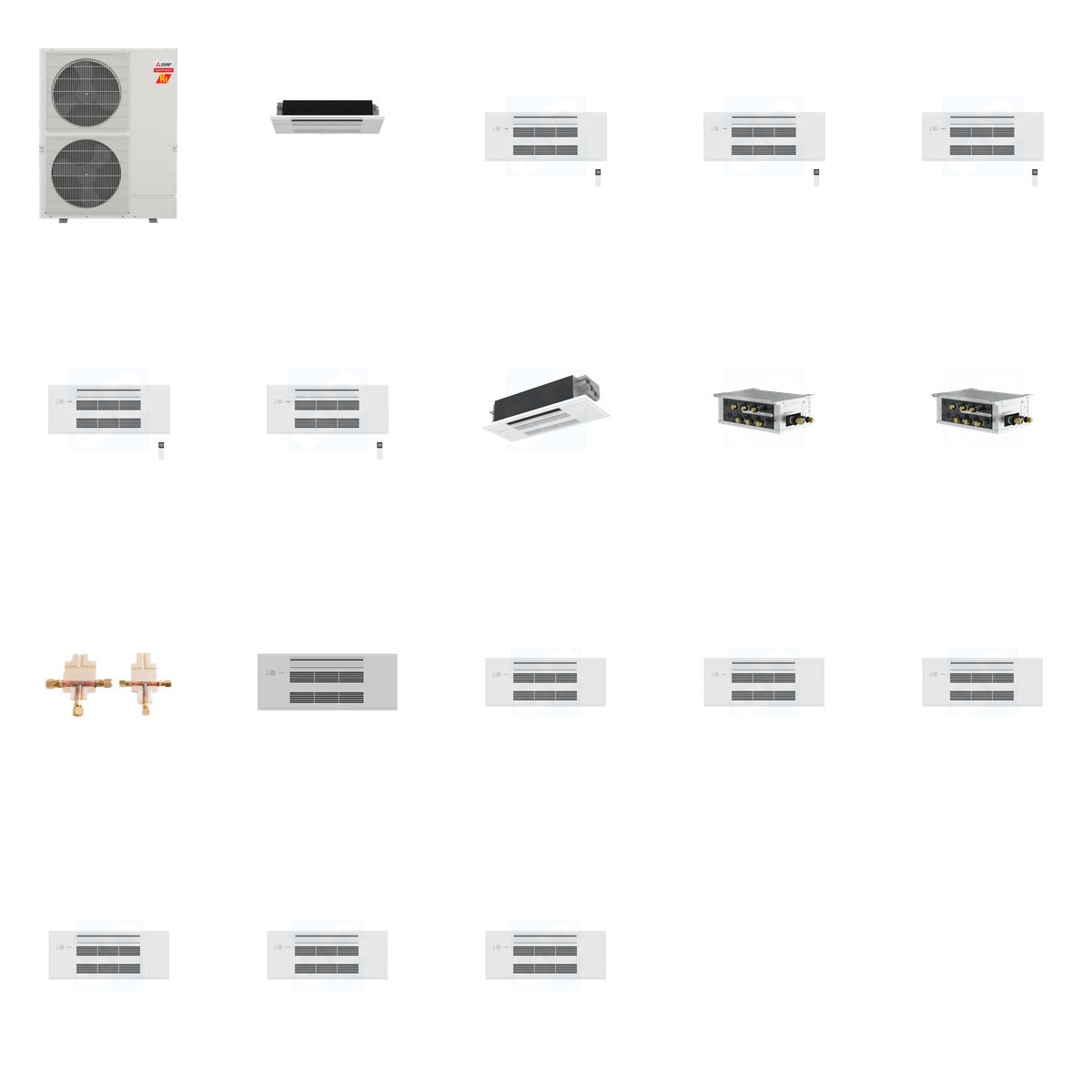

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX09NL - 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC MLZ-KX12NL - 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Grille for MLZ-KY Series (Qty x1)
• MITSUBISHI ELECTRIC MLP-449WU - Grille for MLZ Series Indoor Unit Ceiling Cassette (Qty x6)

Key Details

• Weight of Bundle: 391.8 lb (Mitsubishi 225 lb + Mitsubishi 34 lb + Mitsubishi 16.7 lb + Mitsubishi 34 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 7 lb + Mitsubishi 60 lb)
• MXZ-SM60NL: 60,000 BTU Cooling/66,000 BTU Heating, SEER2 up to 23, 5-Ton capacity
• MLZ-KX06NL: 6,000 BTU Cooling/7,200 BTU Heating, suitable for up to 200 sq ft
• MLZ-KX09NL: 9,000 BTU Cooling/12,000 BTU Heating, suitable for up to 350 sq ft
• MLZ-KX12NL: 12,000 BTU Cooling/15,400 BTU Heating, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ models
• PAC-LMA30BC: 3 ports, 208/230V, supports balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B
• MLP-448WU: Dimensions 16.5 x 38.5 x 4.25 inches, weight 7.9 lbs
• MLP-449WU: Designed for MLZ Series, weight 7.9 lbs

Use & Compatibility

This bundle is ideal for residential and commercial HVAC applications, providing efficient heating and cooling across multiple zones. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI systems, ensuring seamless integration and optimal performance.
