Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+9K+9K+9K+9K+18K+18K

Description

This comprehensive bundle features a selection of high-quality Mitsubishi Electric HVAC components designed to create an efficient and versatile multi-zone heating and cooling system. The centerpiece is the MXZ-SM60NL outdoor unit, which connects to multiple indoor units, providing customized climate control for various spaces. The included ceiling cassettes (MLZ-KX06NL, MLZ-KX09NL, and MLZ-KX18NL) offer flexible installation options and are perfect for residential and commercial applications. The branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate refrigerant distribution, ensuring optimal performance across all connected units. This bundle is ideal for both new installations and upgrades, delivering energy-efficient comfort tailored to your needs.

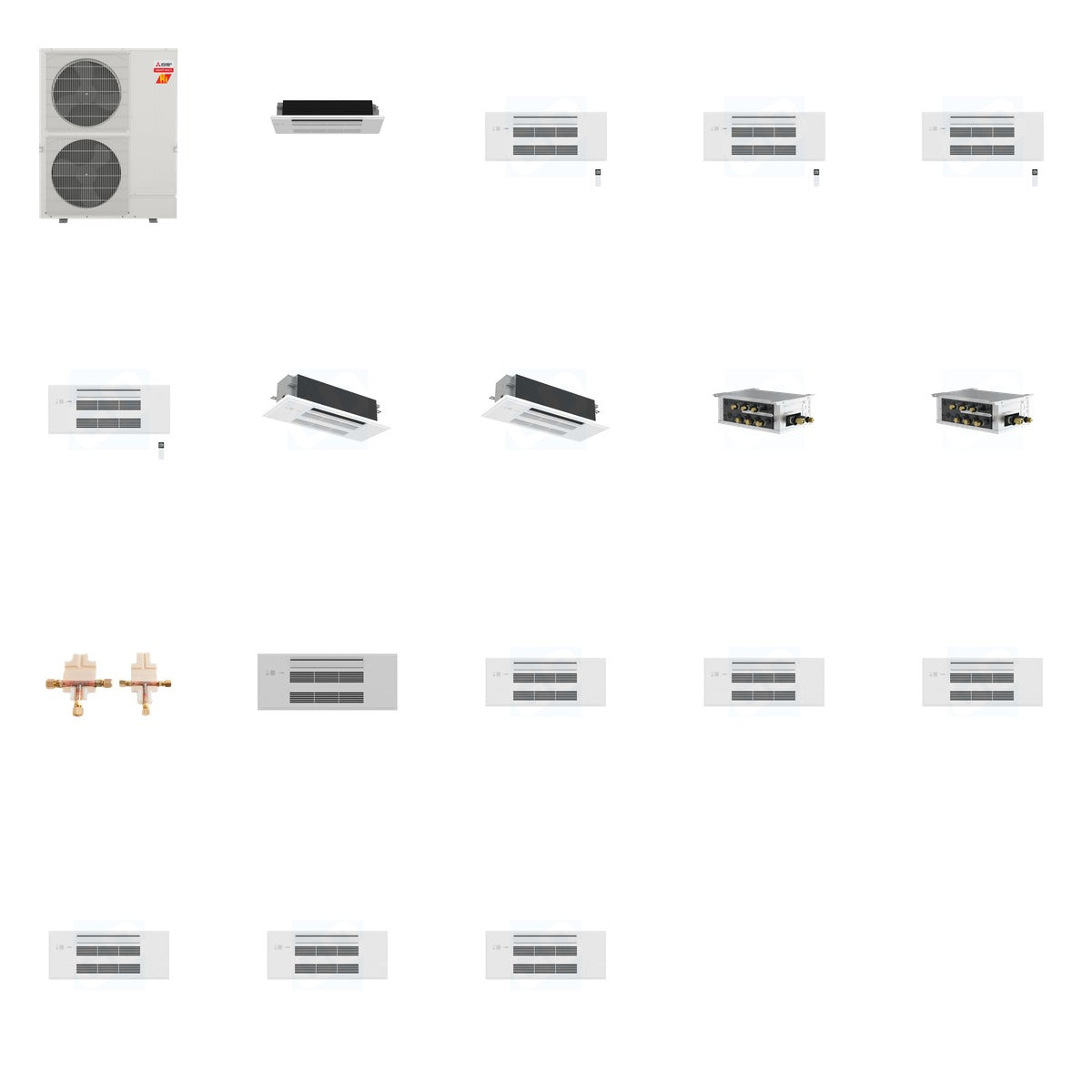

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX09NL - 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC MLZ-KX18NL - 18k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Grille for MLZ-KY Series (Qty x1)
• MITSUBISHI ELECTRIC MLP-449WU - Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x6)

Key Details

• Weight of Bundle: 361.1 lb (Mitsubishi 225 lb + Mitsubishi 34 lb + Mitsubishi 13.3 lb + Mitsubishi 6.7 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 7 lb + Mitsubishi 60 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton capacity, R454B refrigerant
• MLZ-KX06NL: 6,000 BTU, 208/230V, fits up to 200 sq ft, Wi-Fi enabled
• MLZ-KX09NL: 9,000 BTU, 208/230V, fits up to 350 sq ft, Wi-Fi enabled
• MLZ-KX18NL: 18,000 BTU, 208/230V, maximum airflow 417 CFM, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, 208/230V, designed for R-454B systems
• PAC-LMA30BC: 3 ports, 208/230V, designed for R-454B systems
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B
• MLP-448WU: Grille dimensions 16.5 x 38.5 x 4.25 inches
• MLP-449WU: Grille for ceiling cassette, dimensions 16.5 x 38.5 x 4.25 inches

Use & Compatibility

This bundle is intended for use in multi-zone heating and cooling systems, making it suitable for both residential and commercial applications. The outdoor unit is compatible with various indoor units, while the branch boxes ensure efficient refrigerant distribution. The included ceiling cassettes are designed for installation between standard ceiling joists, providing a discreet and effective climate control solution.
