Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+9K+9K+9K+9K+12K+18K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial applications. Featuring a powerful Mitsubishi Electric MXZ-SM60NL multi-zone heat pump outdoor unit, this bundle offers the flexibility to connect multiple indoor units, ensuring customized comfort throughout your space. The included ceiling cassette units (MLZ-KX06NL, MLZ-KX09NL, MLZ-KX12NL, and MLZ-KX18NL) provide versatile installation options and optimal air distribution, while the branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate seamless refrigerant flow. With the addition of high-quality distribution kits and grilles, this bundle is engineered for maximum performance and efficiency.

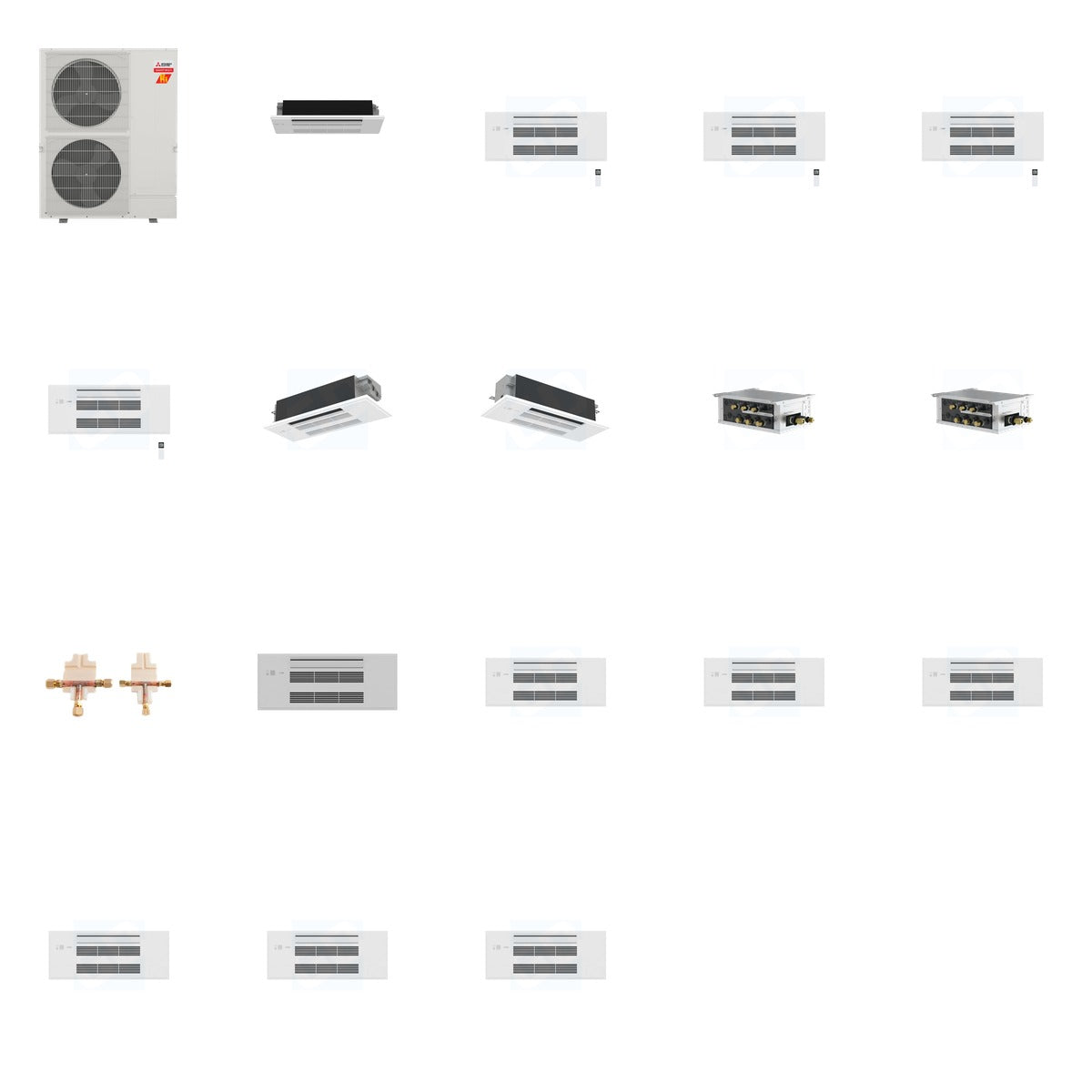

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX09NL - 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC MLZ-KX12NL - 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX18NL - 18k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Grille for MLZ-KY Series (Qty x1)
• MITSUBISHI ELECTRIC MLP-449WU - Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x6)

Key Details

• Weight of Bundle: 391.8 lb (Mitsubishi 225 lb + Mitsubishi 34 lb + Mitsubishi 13.3 lb + Mitsubishi 34 lb + Mitsubishi 3.3 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 7 lb + Mitsubishi 60 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton capacity
• MLZ-KX06NL: 6,000 BTU, suitable for up to 200 sq ft
• MLZ-KX09NL: 9,000 BTU, suitable for up to 350 sq ft
• MLZ-KX12NL: 12,000 BTU, heating capacity 15,400 BTU
• MLZ-KX18NL: 18,000 BTU, heating capacity 19,000 BTU
• PAC-LMA50BC: 5 ports, compatible with MXZ model
• PAC-LMA30BC: 3 ports, supports R454B refrigerant
• MSDD-50AR2-E: Flare connection, oxygen-free copper
• MLP-448WU: Grille dimensions 16.5 x 38.5 x 4.25 inches
• MLP-449WU: Grille designed for MLZ Series Indoor Units

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing both heating and cooling capabilities. The outdoor unit is compatible with various Mitsubishi Electric indoor units, allowing for customized installation in diverse settings. Ideal for residential and commercial applications, this bundle ensures efficient climate control and optimal performance across multiple zones.
