Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+9K+9K+9K+9K+12K+12K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial spaces. Featuring a powerful Mitsubishi Electric MXZ-SM60NL multi-zone heat pump outdoor unit, this package allows for customized climate control across multiple zones. The included MLZ-KX series ceiling cassette indoor units (6k, 9k, and 12k BTU) ensure optimal air distribution and comfort in various room sizes. Additionally, the PAC-LMA30BC and PAC-LMA50BC branch boxes facilitate seamless refrigerant flow to the indoor units, while the MSDD-50AR2-E branch pipe distribution kit enhances system performance. This bundle is perfect for those looking to create a versatile and efficient HVAC system.

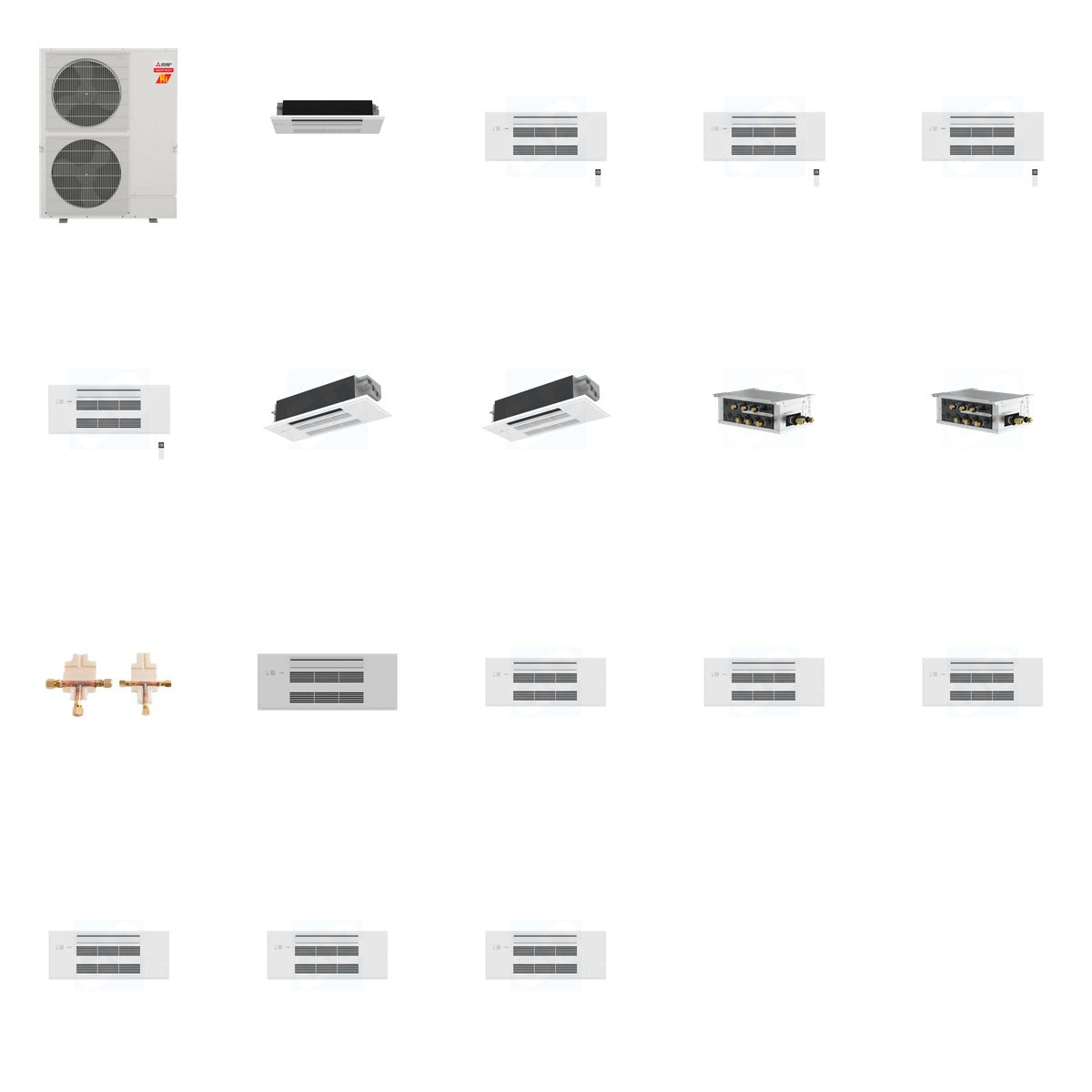

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x6)

Key Details

• Weight of Bundle: 422.4 lb (Mitsubishi 225 lb + Mitsubishi 34 lb + Mitsubishi 13.3 lb + Mitsubishi 68 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 7 lb + Mitsubishi 60 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton capacity
• MLZ-KX06NL: 6,000 BTU, up to 200 sq ft, Wi-Fi enabled
• MLZ-KX09NL: 9,000 BTU, up to 350 sq ft, Wi-Fi enabled
• MLZ-KX12NL: 12,000 BTU, Wi-Fi enabled, includes antibacterial filter
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ outdoor units
• PAC-LMA30BC: 3 ports, 208/230V, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, designed for R-410A / R-454B refrigerants
• MLP-449WU: Grille dimensions 16.5 x 38.5 x 4.25 inches

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor spaces. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the ceiling cassettes fit seamlessly between standard ceiling joists. The included branch boxes and distribution kit ensure optimal refrigerant flow and system performance, making this bundle a complete solution for both residential and commercial applications.
