Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+9K+9K+12K+12K+12K+18K

Description

This comprehensive HVAC bundle features a selection of Mitsubishi Electric products designed to provide efficient heating and cooling solutions for both residential and commercial spaces. The centerpiece is the MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, capable of supporting multiple indoor units for customizable comfort. Complementing this outdoor unit are several one-way ceiling cassette indoor units (MLZ-KX06NL, MLZ-KX09NL, MLZ-KX12NL, and MLZ-KX18NL) that offer versatile installation options and Wi-Fi capabilities for convenient control. Additionally, the bundle includes essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) to manage refrigerant flow and a branch pipe distribution kit (MSDD-50AR2-E) to ensure optimal performance. Grilles (MLP-448WU and MLP-449WU) are also included to enhance air distribution and system efficiency.

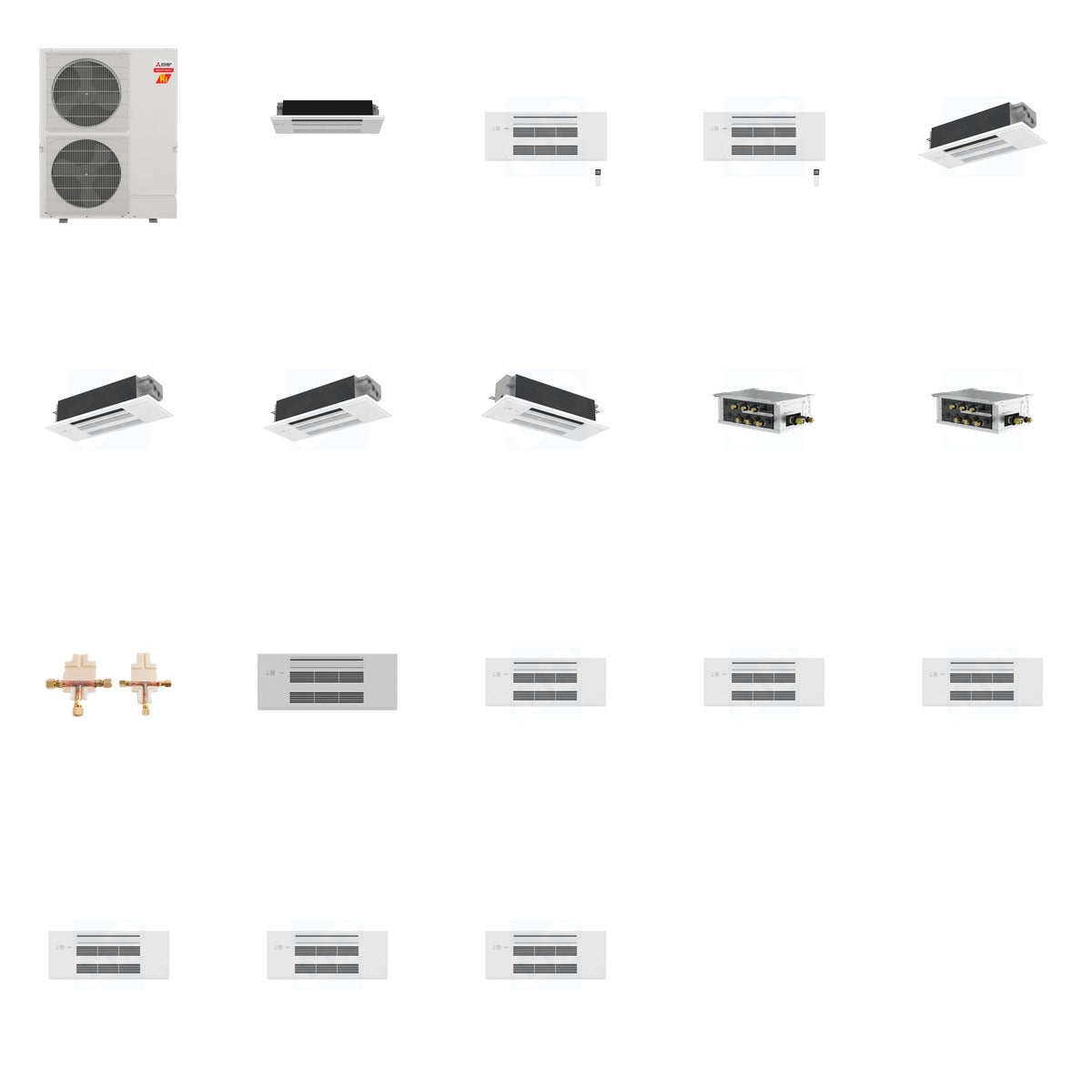

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX09NL - 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX12NL - 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX18NL - 18k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Grille for MLZ-KY Series (Qty x1)
• MITSUBISHI ELECTRIC MLP-449WU - Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x6)

Key Details

• Weight of Bundle: 453.1 lb (Mitsubishi 225 lb + Mitsubishi 34 lb + Mitsubishi 6.7 lb + Mitsubishi 102 lb + Mitsubishi 3.3 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 7 lb + Mitsubishi 60 lb)
• MXZ-SM60NL: 60,000 BTU Cooling, 66,000 BTU Heating, SEER2 up to 23
• MLZ-KX06NL: 6,000 BTU Cooling, 7,200 BTU Heating, up to 200 sq ft
• MLZ-KX09NL: 9,000 BTU Cooling, 12,000 BTU Heating, up to 350 sq ft
• MLZ-KX12NL: 12,000 BTU Cooling, 15,400 BTU Heating
• MLZ-KX18NL: 16,400 BTU Cooling, 19,000 BTU Heating
• PAC-LMA50BC: 5 Ports, 208/230V, 60Hz
• PAC-LMA30BC: 3 Ports, 208/230V, 60Hz
• MSDD-50AR2-E: Flare Connection, R-410A/R-454B compatible
• Grilles: MLP-448WU and MLP-449WU designed for optimized airflow

Use & Compatibility

This bundle is ideal for multi-zone HVAC systems, providing efficient heating and cooling across various indoor environments. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the ceiling cassettes are designed for installation in spaces with 16-inch joist spacing. The included branch boxes and distribution kit ensure seamless refrigerant management, making this bundle suitable for both residential and commercial applications.
