Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+9K+9K+12K+12K+12K+12K

Description

The Mitsubishi Electric HVAC Bundle is a comprehensive solution for both residential and commercial heating and cooling needs. This carefully curated selection includes a powerful multi-zone outdoor heat pump, versatile ceiling cassette indoor units, and essential accessories to ensure optimal performance and efficiency. With the ability to connect multiple indoor units, this bundle provides customized climate control tailored to various spaces. The included branch boxes and distribution kits facilitate seamless refrigerant management, making installation straightforward and effective. Elevate your indoor comfort with this all-in-one HVAC solution.

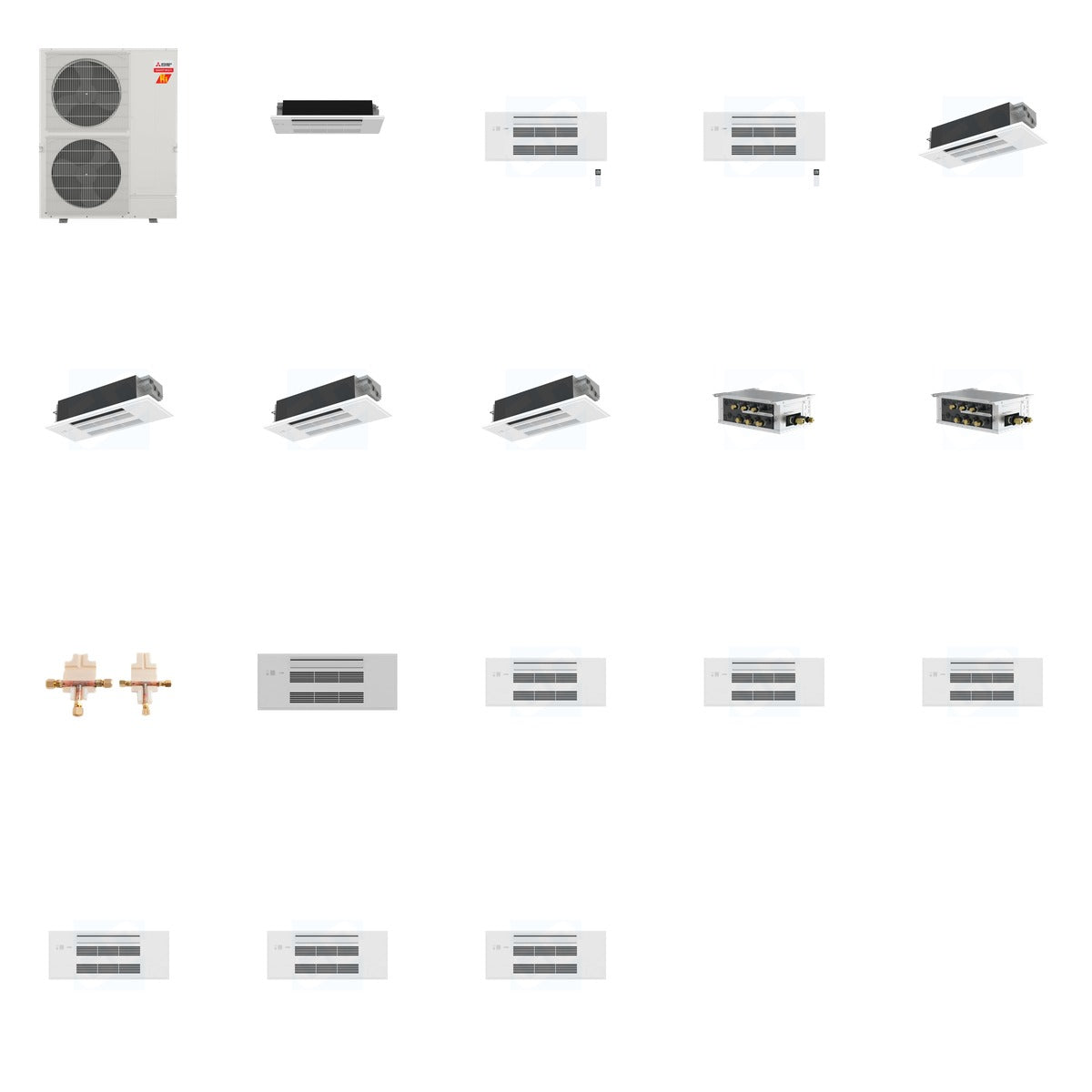

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x1)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x6)

Key Details

• Weight of Bundle: 483.8 lb (Mitsubishi 225 lb + Mitsubishi 34 lb + Mitsubishi 6.7 lb + Mitsubishi 136 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 7 lb + Mitsubishi 60 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton capacity, R454B refrigerant
• MLZ-KX06NL: 6,000 BTU, 200 sq ft coverage, Wi-Fi enabled, 208/230V
• MLZ-KX09NL: 9,000 BTU, 350 sq ft coverage, Wi-Fi enabled, 208/230V
• MLZ-KX12NL: 12,000 BTU, 208/230V, Wi-Fi enabled, 15400 BTU heating capacity
• PAC-LMA50BC: 5 ports, 208/230V, connects up to 5 indoor units
• PAC-LMA30BC: 3 ports, 208/230V, connects up to 3 indoor units
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B refrigerants
• MLP-448WU: Grille dimensions 16.5 x 38.5 x 4.25 inches
• MLP-449WU: Grille dimensions for ceiling cassette applications

Use & Compatibility

This HVAC bundle is designed for use in multi-zone systems, providing efficient heating and cooling for various indoor environments. The outdoor unit connects seamlessly with multiple indoor units, making it suitable for both residential and commercial applications. The included branch boxes and distribution kits ensure optimal refrigerant flow and temperature control across all connected units.
