Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+9K+9K+9K+9K+9K

Description

This comprehensive HVAC bundle is designed to provide optimal heating and cooling solutions for both residential and commercial environments. Featuring the Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, this package allows for the connection of multiple indoor units, ensuring customized comfort across various spaces. The included MLZ-KX06NL and MLZ-KX09NL one-way ceiling cassette indoor units offer versatile installation options, while the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate efficient refrigerant distribution. Additionally, the MSDD-50AR2-E branch pipe distribution kit enhances system performance, and the MLP-448WU and MLP-449WU grilles optimize air flow for maximum efficiency. Together, these components create a powerful and flexible HVAC system tailored to meet diverse climate control needs.

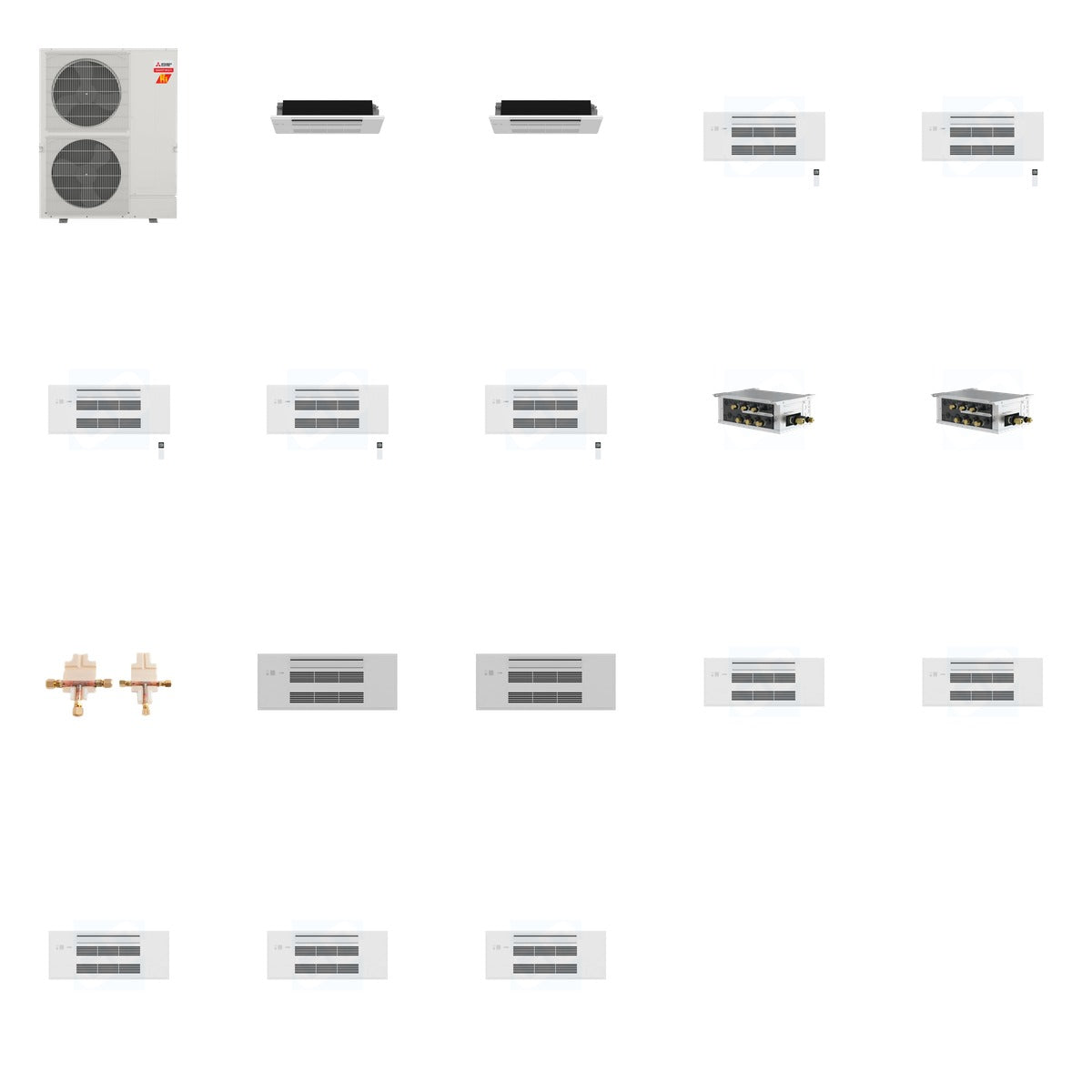

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x2)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x5)

Key Details

• Weight of Bundle: 388.8 lb (Mitsubishi 225 lb + Mitsubishi 68 lb + Mitsubishi 16.7 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 14 lb + Mitsubishi 50 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton capacity, ENERGY STAR certified
• MLZ-KX06NL: 6,000 BTU, up to 200 sq ft coverage, 208/230V, Wi-Fi enabled
• MLZ-KX09NL: 9,000 BTU, up to 350 sq ft coverage, 208/230V, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ model
• PAC-LMA30BC: 3 ports, 208/230V, supports R454B refrigerant
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B, oxygen-free copper
• MLP-448WU: 16.5 x 38.5 x 4.25 inches, designed for MLZ-KY Series
• MLP-449WU: Designed for MLZ Series Indoor Units, facilitates efficient air distribution

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing both heating and cooling capabilities. The outdoor unit is compatible with various indoor units, including the MLZ-KX series, making it ideal for diverse residential and commercial applications. The included branch boxes and distribution kit ensure optimal refrigerant flow, enhancing system performance and efficiency.
