Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+9K+9K+12K+18K+18K

Description

This comprehensive bundle features a selection of high-performance Mitsubishi Electric HVAC components designed for multi-zone heating and cooling systems. The MXZ-SM60NL outdoor unit serves as the powerhouse, capable of supporting multiple indoor units for customized climate control. Complementing this are several one-way ceiling cassette indoor units (MLZ-KX06NL, MLZ-KX09NL, MLZ-KX12NL, and MLZ-KX18NL) that provide efficient heating and cooling for various room sizes. Additionally, the bundle includes essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) for optimal refrigerant distribution and a branch pipe distribution kit (MSDD-50AR2-E) to ensure balanced performance across all connected units. Grilles (MLP-448WU and MLP-449WU) are also included to enhance airflow and system efficiency.

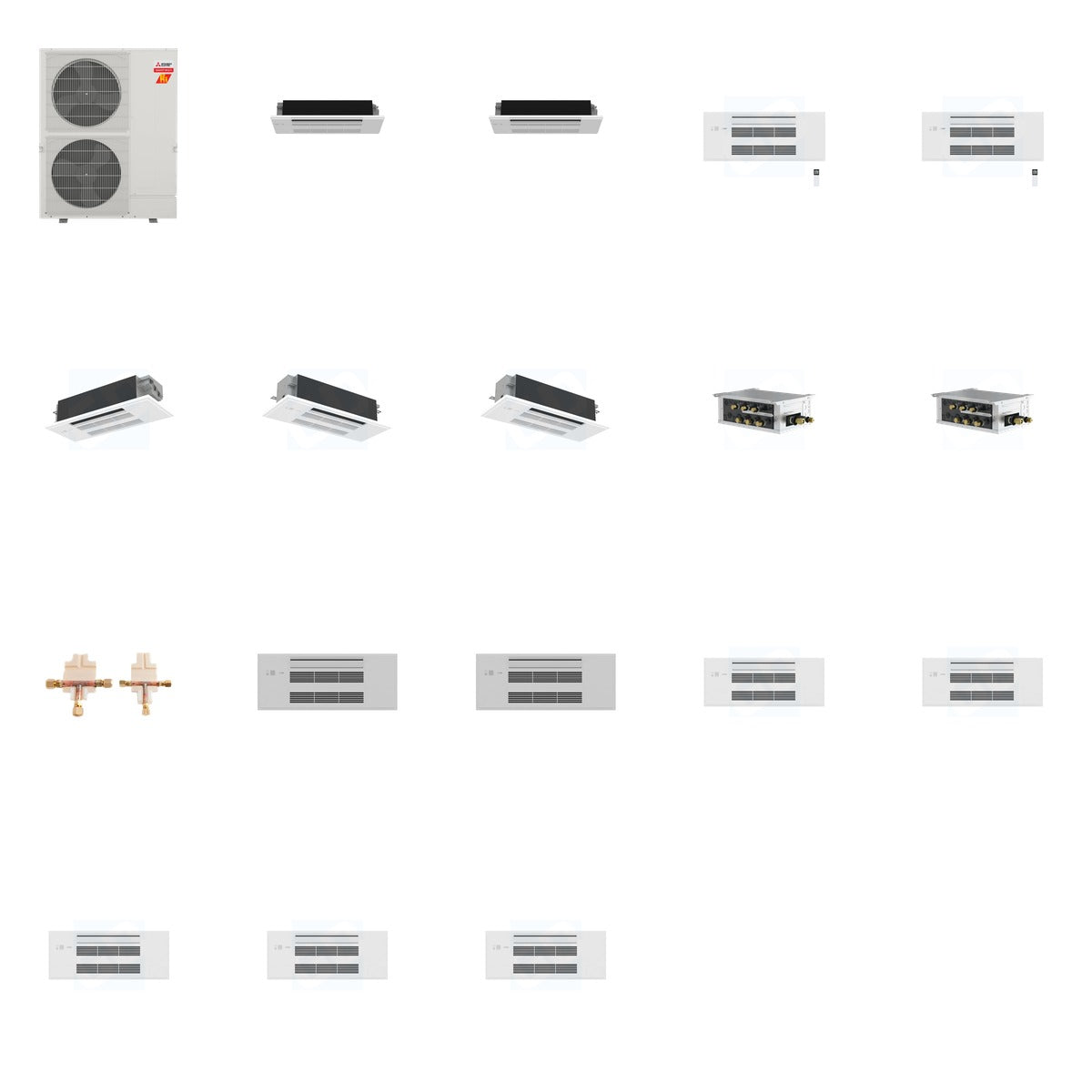

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX18NL - Mitsubishi Electric MLZ-KX18NL 18k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x2)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x5)

Key Details

• Weight of Bundle: 419.4 lb (Mitsubishi 225 lb + Mitsubishi 68 lb + Mitsubishi 6.7 lb + Mitsubishi 34 lb + Mitsubishi 6.7 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 14 lb + Mitsubishi 50 lb)
• MXZ-SM60NL: 60,000 BTU cooling, 66,000 BTU heating, SEER2 up to 23, 208/230V
• MLZ-KX06NL: 6,000 BTU cooling, 7,200 BTU heating, 208/230V, Wi-Fi enabled
• MLZ-KX09NL: 9,000 BTU cooling, 12,000 BTU heating, 208/230V, Wi-Fi enabled
• MLZ-KX12NL: 12,000 BTU cooling, 15,400 BTU heating, 208/230V, Wi-Fi enabled
• MLZ-KX18NL: 16,400 BTU cooling, 19,000 BTU heating, 208/230V, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ outdoor units
• PAC-LMA30BC: 3 ports, 208/230V, compatible with R454B refrigerant
• MSDD-50AR2-E: Flare connection, compatible with R-410A and R-454B
• MLP-448WU: 16.5 x 38.5 x 4.25 inches, 7.9 lbs
• MLP-449WU: Dimensions: 16.5 x 38.5 x 4.25 inches, 7.9 lbs

Use & Compatibility

This bundle is ideal for residential and commercial applications, providing flexible heating and cooling solutions for various indoor environments. The outdoor unit connects seamlessly with multiple indoor ceiling cassettes, while the branch boxes and distribution kit ensure efficient refrigerant flow. The included grilles optimize air distribution, enhancing overall system performance.
