Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+9K+9K+12K+12K+18K

Description

This comprehensive HVAC bundle features a selection of high-quality Mitsubishi Electric products, designed to provide efficient heating and cooling solutions for both residential and commercial spaces. The centerpiece of this bundle is the Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, which connects seamlessly with multiple indoor units, allowing for customized comfort across various zones. Accompanied by a range of one-way ceiling cassette indoor units, including the MLZ-KX06NL, MLZ-KX09NL, MLZ-KX12NL, and MLZ-KX18NL, this bundle ensures optimal air distribution and temperature control. Additionally, the inclusion of branch boxes and distribution kits enhances refrigerant management, making this bundle ideal for multi-zone installations.

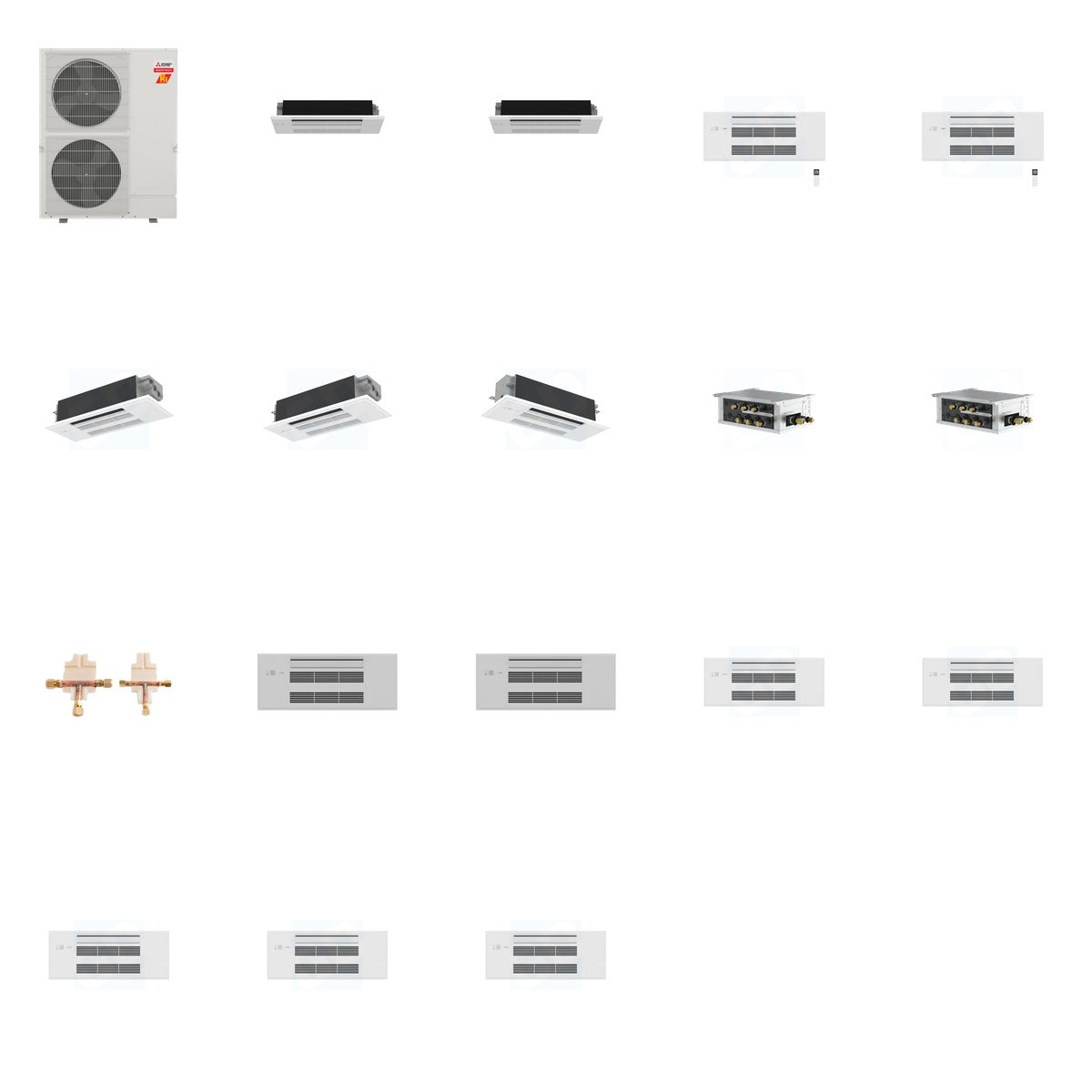

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX09NL - 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX12NL - 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX18NL - 18k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Grille for MLZ-KY Series (Qty x2)
• MITSUBISHI ELECTRIC MLP-449WU - Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x5)

Key Details

• Weight of Bundle: 450.1 lb (Mitsubishi 225 lb + Mitsubishi 68 lb + Mitsubishi 6.7 lb + Mitsubishi 68 lb + Mitsubishi 3.3 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 14 lb + Mitsubishi 50 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MLZ-KX06NL: 6,000 BTU, heating capacity 7,200 BTU, suitable for up to 200 sq ft
• MLZ-KX09NL: 9,000 BTU, heating capacity 12,000 BTU, suitable for up to 350 sq ft
• MLZ-KX12NL: 12,000 BTU, heating capacity 15,400 BTU
• MLZ-KX18NL: 18,000 BTU, heating capacity 19,000 BTU
• PAC-LMA50BC: 5 ports, compatible with MXZ model outdoor units
• PAC-LMA30BC: 3 ports, supports balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B refrigerants
• Grilles: MLP-448WU and MLP-449WU, designed for optimal air distribution

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing both heating and cooling capabilities. The outdoor unit is compatible with various indoor units, allowing for flexible installation in residential and commercial environments. The included branch boxes and distribution kit facilitate efficient refrigerant management, ensuring optimal performance across all connected units.
