Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+9K+9K+18K+18K

Description

This comprehensive bundle includes essential components for creating a highly efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump serves as the powerhouse, delivering up to 60,000 BTU of cooling and 66,000 BTU of heating capacity. Paired with multiple indoor units, including the MLZ-KX06NL, MLZ-KX09NL, and MLZ-KX18NL ceiling cassettes, this bundle allows for customized climate control in various spaces. The included branch boxes and distribution kits ensure optimal refrigerant flow and system performance, making this bundle ideal for both residential and commercial applications.

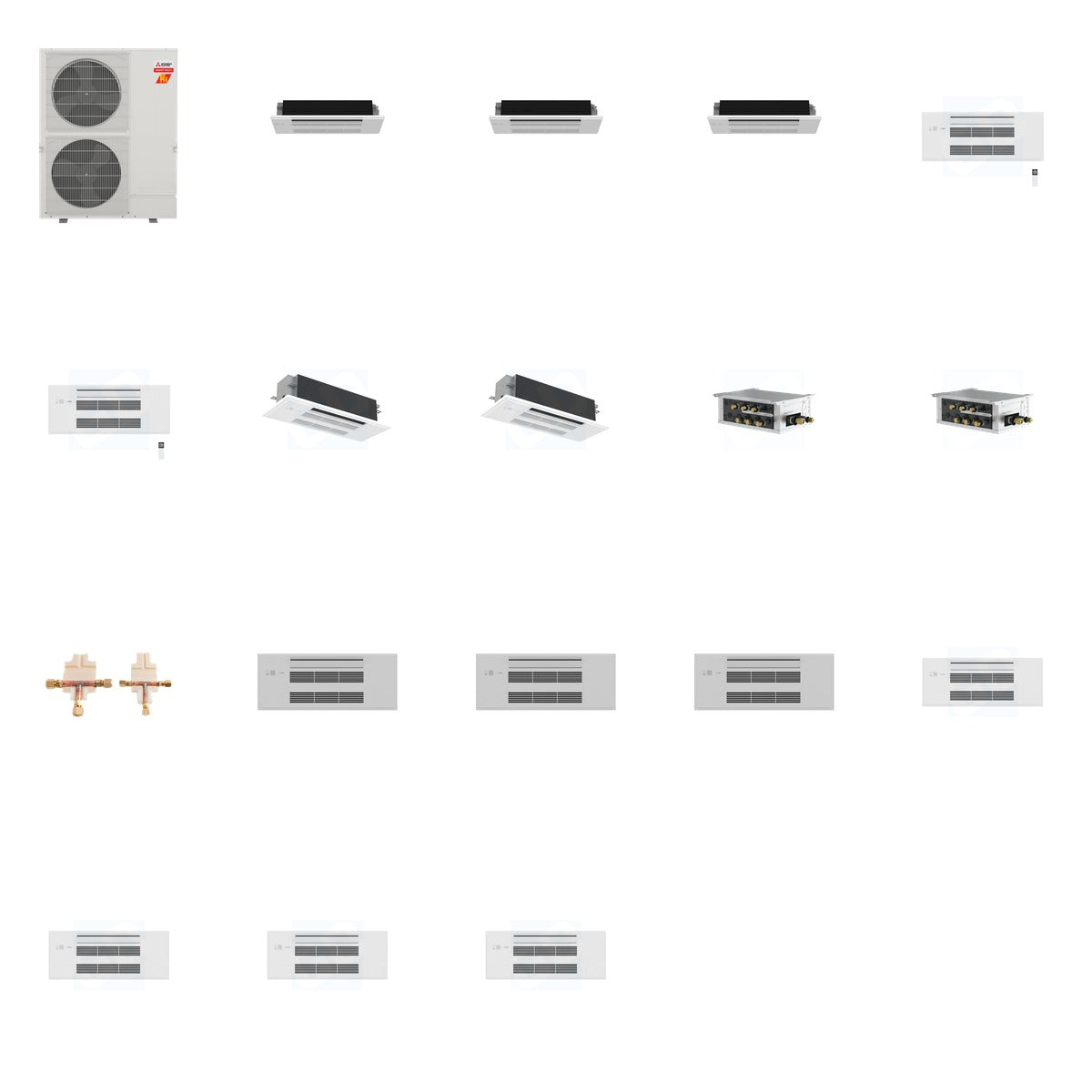

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX09NL - 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX18NL - 18k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Grille for MLZ-KY Series (Qty x3)
• MITSUBISHI ELECTRIC MLP-449WU - Grille for MLZ Series Indoor Unit Ceiling Cassette (Qty x4)

Key Details

• Weight of Bundle: 416.4 lb (Mitsubishi 225 lb + Mitsubishi 102 lb + Mitsubishi 6.7 lb + Mitsubishi 6.7 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 21 lb + Mitsubishi 40 lb)
• Cooling Capacity: Up to 60,000 BTU
• Heating Capacity: Up to 66,000 BTU
• SEER2: Up to 23
• Voltage: 208/230 Volts
• Indoor Unit Capacity: 6k BTU to 18k BTU
• Dimensions (Outdoor Unit): 41-11/32 in W x 13 in D x 52-11/16 in H
• Noise Level: As low as 26 dB(A) for indoor units
• Material: Copper for distribution kit, durable plastic for grilles

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, making it suitable for both residential and commercial spaces. The outdoor heat pump connects seamlessly with the indoor ceiling cassettes, while the branch boxes and distribution kit ensure efficient refrigerant management. Compatible with Mitsubishi Electric's M-Series and CITY MULTI systems, this bundle provides versatile heating and cooling solutions tailored to various room sizes and layouts.
