Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+9K+9K+12K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial environments. Featuring a powerful Mitsubishi Electric MXZ-SM60NL multi-zone heat pump outdoor unit, this bundle allows for the connection of multiple indoor units, ensuring customized comfort across various spaces. The included one-way ceiling cassette indoor units (MLZ-KX06NL, MLZ-KX09NL, and MLZ-KX12NL) offer versatile installation options and advanced features like Wi-Fi control and adjustable airflow. Additionally, the bundle includes essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) and distribution kits (MSDD-50AR2-E) for optimal refrigerant management, making it a complete solution for your HVAC needs.

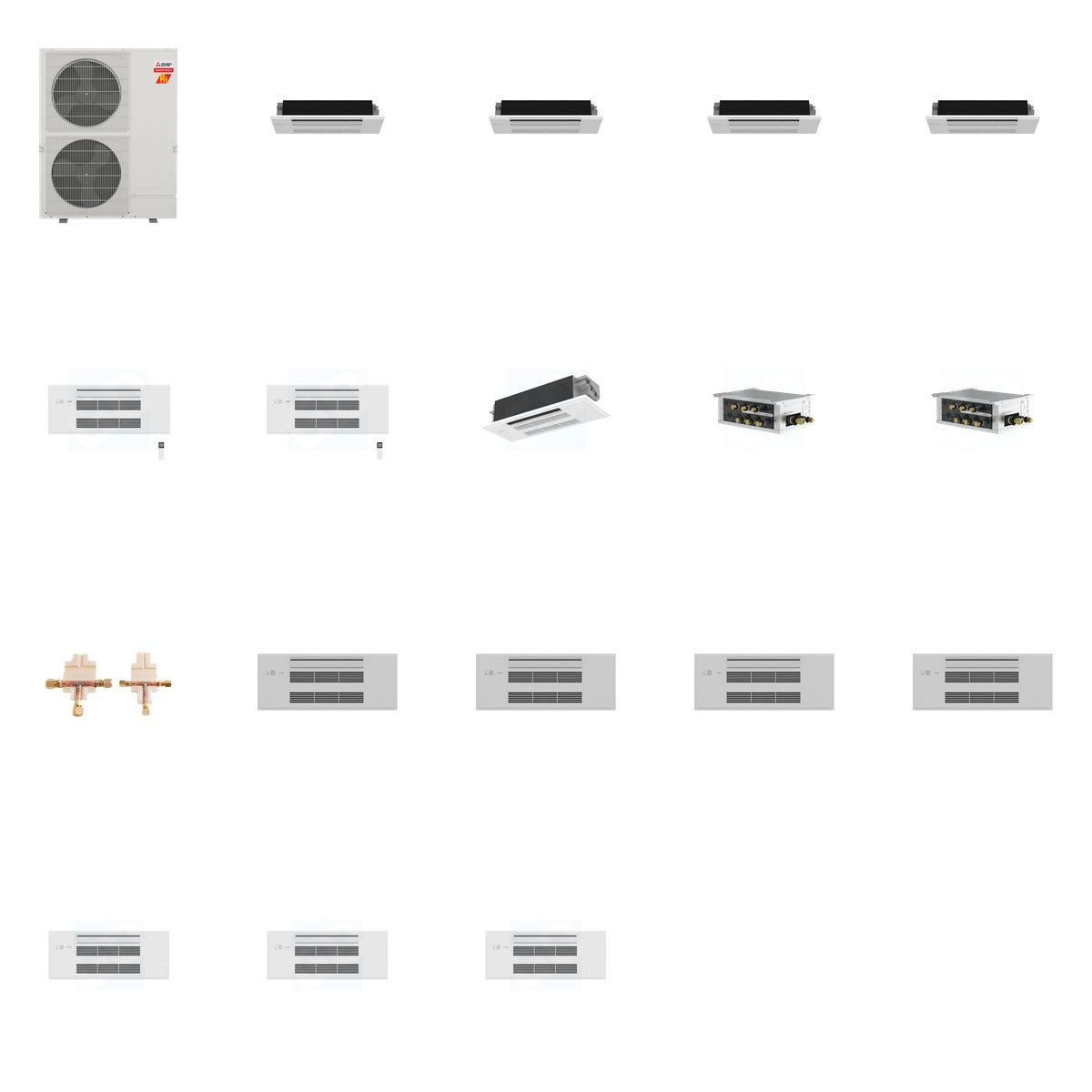

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x4)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x3)

Key Details

• Weight of Bundle: 474.8 lb (Mitsubishi 225 lb + Mitsubishi 136 lb + Mitsubishi 6.7 lb + Mitsubishi 34 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 28 lb + Mitsubishi 30 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MLZ-KX06NL: 6,000 BTU, 200 sq ft coverage, Wi-Fi enabled
• MLZ-KX09NL: 9,000 BTU, 350 sq ft coverage, Wi-Fi enabled
• MLZ-KX12NL: 12,000 BTU, 15400 BTU heating capacity, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, 208/230V, electronic LEVs
• PAC-LMA30BC: 3 ports, 208/230V, balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B
• MLP-448WU: 16.5 x 38.5 x 4.25 inches, 7.9 lbs
• MLP-449WU: Compatible with MLZ Series, simple installation

Use & Compatibility

This bundle is ideal for multi-zone HVAC systems, providing efficient heating and cooling across various indoor spaces. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the ceiling cassettes are designed for installation between standard ceiling joists. The included branch boxes and distribution kits ensure optimal refrigerant flow, making this bundle a perfect choice for both residential and commercial applications.
