Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+6K+9K+9K

Description

This comprehensive bundle includes essential components for a multi-zone HVAC system, designed to provide efficient heating and cooling throughout various indoor spaces. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units, including the MLZ-KX06NL and MLZ-KX09NL ceiling cassettes, which are perfect for discreet installation in residential or commercial settings. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate optimal refrigerant flow, ensuring balanced temperatures across all zones. With additional accessories like the MSDD-50AR2-E branch pipe kit and the MLP-449WU grilles, this bundle guarantees a complete and efficient solution for your HVAC needs.

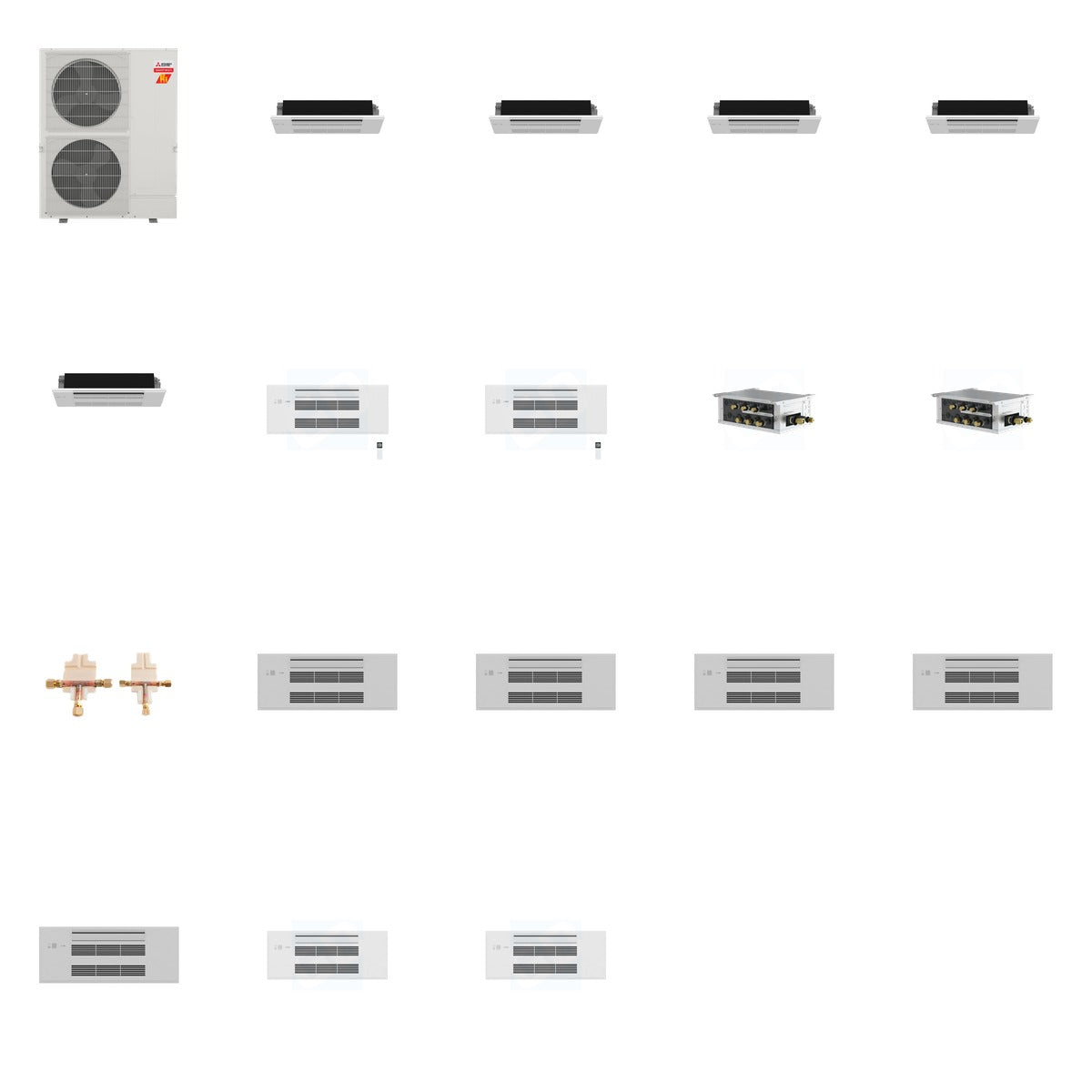

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x2)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - Grille for MLZ-KY Series (Qty x5)

Key Details

• Weight of Bundle: 471.8 lb (Mitsubishi 225 lb + Mitsubishi 170 lb + Mitsubishi 6.7 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 35 lb + Mitsubishi 20 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MLZ-KX06NL: 6,000 BTU, suitable for up to 200 sq ft, Wi-Fi enabled
• MLZ-KX09NL: 9,000 BTU, suitable for up to 350 sq ft, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, 208/230V, electronic LEVs for refrigerant flow
• PAC-LMA30BC: 3 ports, 208/230V, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B refrigerants
• MLP-449WU: Designed for MLZ Series, optimizes air distribution
• MLP-448WU: For MLZ-KY Series, enhances air circulation

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling for residential and commercial applications. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI indoor units, ensuring seamless integration and optimal performance across various indoor environments.
