Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+6K+9K+18K

Description

This comprehensive HVAC bundle includes essential components designed to create an efficient and effective multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units for customized climate control. The accompanying ceiling cassette units (MLZ-KX06NL, MLZ-KX09NL, and MLZ-KX18NL) provide versatile heating and cooling solutions for various room sizes, while the branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensure optimal refrigerant distribution. With additional accessories like the MSDD-50AR2-E branch pipe kit and grilles (MLP-448WU and MLP-449WU), this bundle is tailored for both residential and commercial applications, ensuring comfort and efficiency throughout your space.

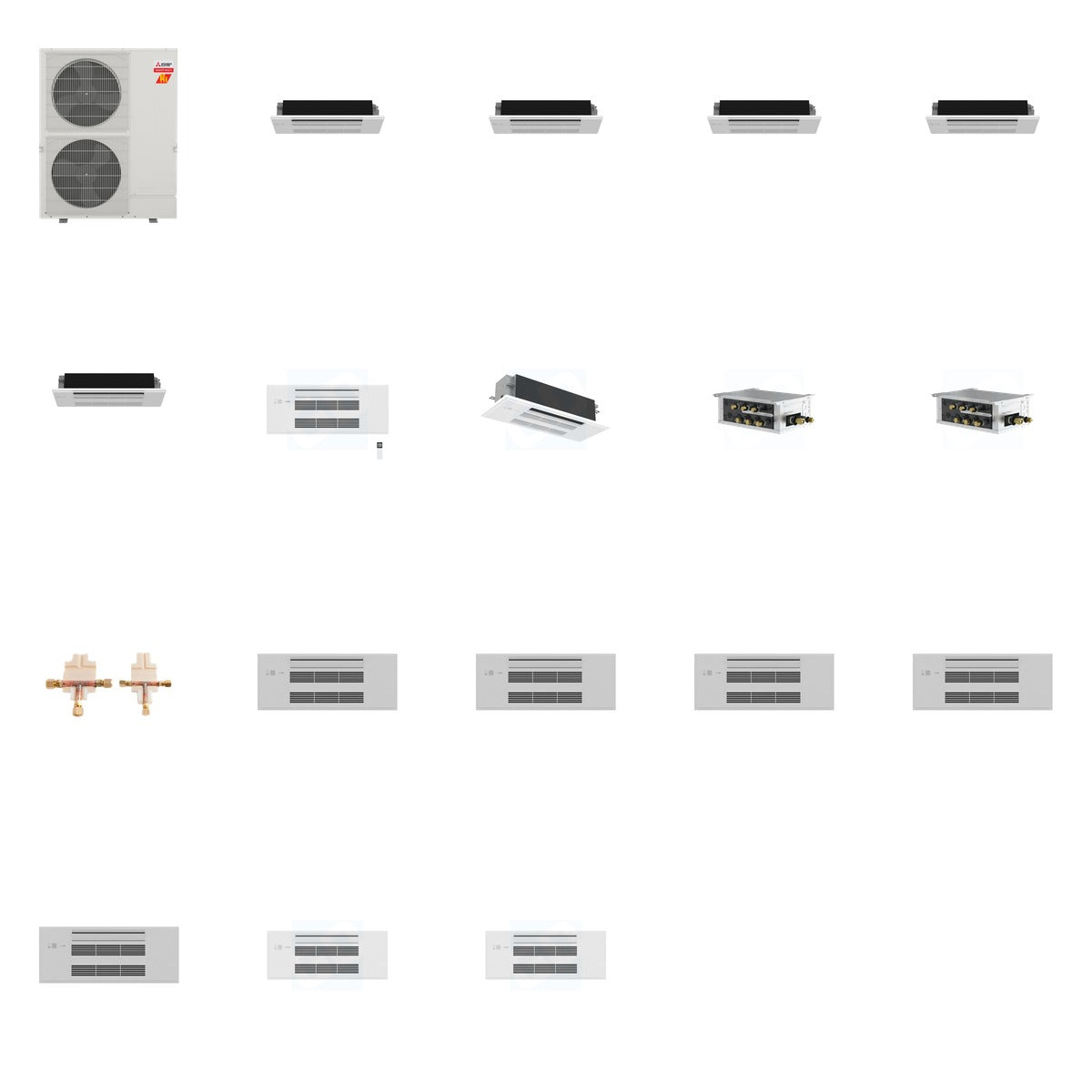

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX18NL - Mitsubishi Electric MLZ-KX18NL 18k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x5)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x2)

Key Details

• Weight of Bundle: 471.8 lb (Mitsubishi 225 lb + Mitsubishi 170 lb + Mitsubishi 3.3 lb + Mitsubishi 3.3 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 35 lb + Mitsubishi 20 lb)
• Outdoor Unit Capacity: 60,000 BTU
• Indoor Units: 6,000 BTU (x5), 9,000 BTU (x1), 18,000 BTU (x1)
• SEER2 Rating: Up to 23
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Noise Level: As low as 26 dB(A)
• Dimensions (Outdoor Unit): 41-11/32 in W x 13 in D x 52-11/16 in H
• Dimensions (Indoor Units): Varies by model

Use & Compatibility

This bundle is ideal for both residential and commercial applications, providing efficient heating and cooling solutions for various room sizes. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, allowing for flexibility in system design. The included branch boxes and distribution kit ensure effective refrigerant management, making it suitable for multi-zone setups.
