Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+6K+6K+6K

Description

This comprehensive HVAC bundle includes essential components for creating a highly efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump serves as the powerhouse, delivering up to 60,000 BTU of cooling and 66,000 BTU of heating capacity. Paired with seven MLZ-KX06NL ceiling cassette indoor units, this setup is perfect for spaces up to 200 square feet each, ensuring optimal comfort across various rooms. The bundle also features two branch boxes (PAC-LMA50BC and PAC-LMA30BC) to effectively manage refrigerant flow and power distribution, allowing seamless operation of multiple indoor units. Additionally, the MSDD-50AR2-E branch pipe distribution kit ensures balanced refrigerant distribution, while the MLP-448WU grilles enhance air circulation, making this bundle a complete solution for both residential and commercial applications.

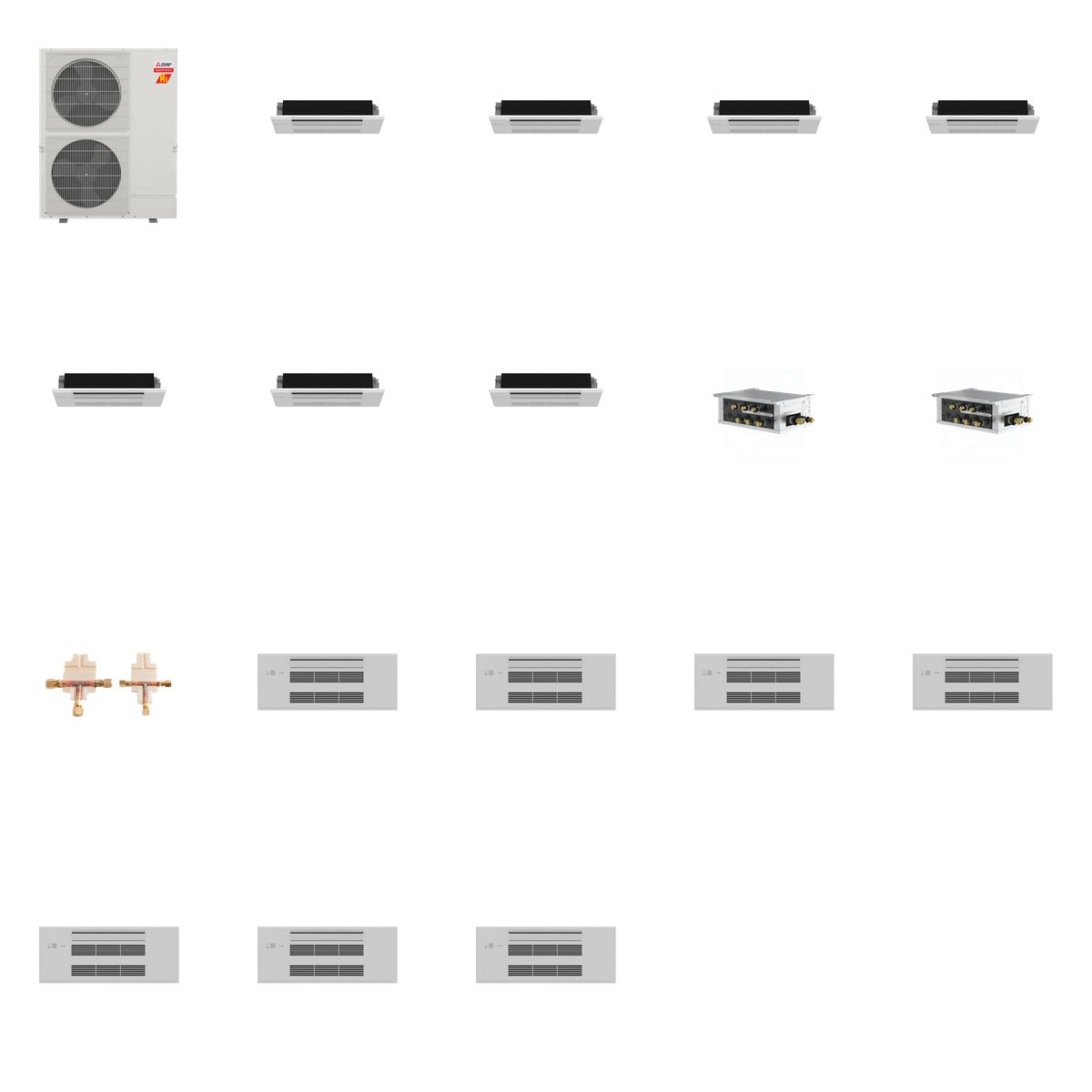

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x7)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KX Series) (Qty x7)

Key Details

• Weight of Bundle: 527.1 lb (Mitsubishi 225 lb + Mitsubishi 238 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 49 lb)
• Cooling Capacity: 60,000 BTU/h
• Heating Capacity: 66,000 BTU/h
• SEER2: Up to 23
• Voltage: 208/230 Volts
• Indoor Unit Capacity: 6,000 BTU
• Dimensions (MXZ-SM60NL): 41-11/32 in W x 13 in D x 52-11/16 in H
• Dimensions (MLZ-KX06NL): 33-3/16 in W x 11-7/8 in D x 7-11/16 in H
• Dimensions (PAC-LMA50BC): 17-3/4 in W x 11-1/16 in D x 6-3/4 in H
• Dimensions (PAC-LMA30BC): 17-3/4 in W x 11-1/16 in D x 6-3/4 in H
• Noise Level (MLZ-KX06NL): 29-36 dB(A)

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing both heating and cooling capabilities. The outdoor unit is compatible with various M-Series and P-Series indoor units, while the branch boxes facilitate efficient refrigerant management. Ideal for residential and commercial environments, this setup ensures optimal comfort and energy efficiency.
