Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+6K+18K+18K

Description

This comprehensive bundle features essential components for a multi-zone HVAC system, ensuring efficient heating and cooling for both residential and commercial applications. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump serves as the powerhouse, delivering up to 60,000 BTU of cooling capacity. Paired with five MLZ-KX06NL and two MLZ-KX18NL ceiling cassette indoor units, this setup provides flexible climate control across various spaces. The included PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit enhances system performance. With grilles designed for the MLZ series, this bundle ensures seamless air distribution and system efficiency.

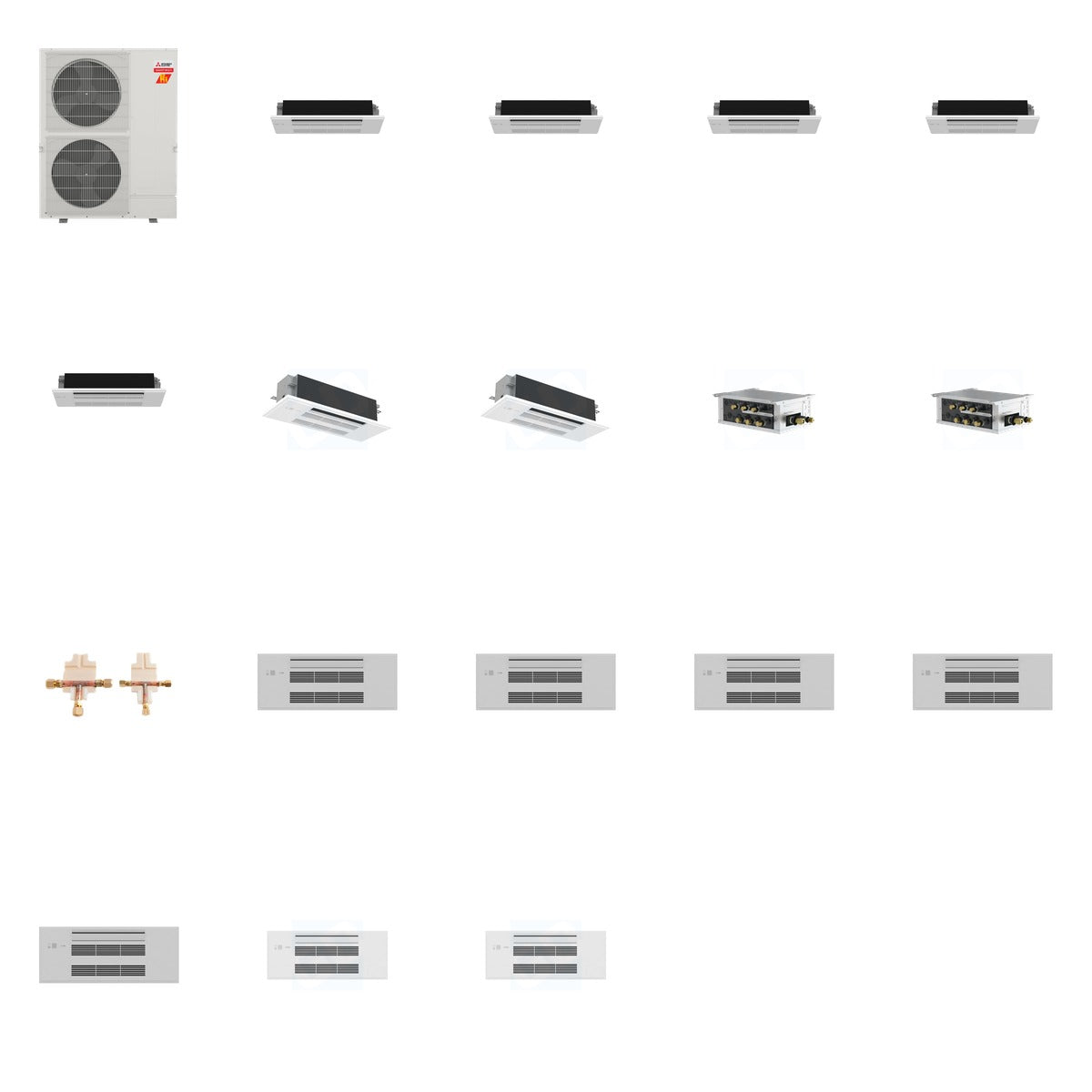

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)

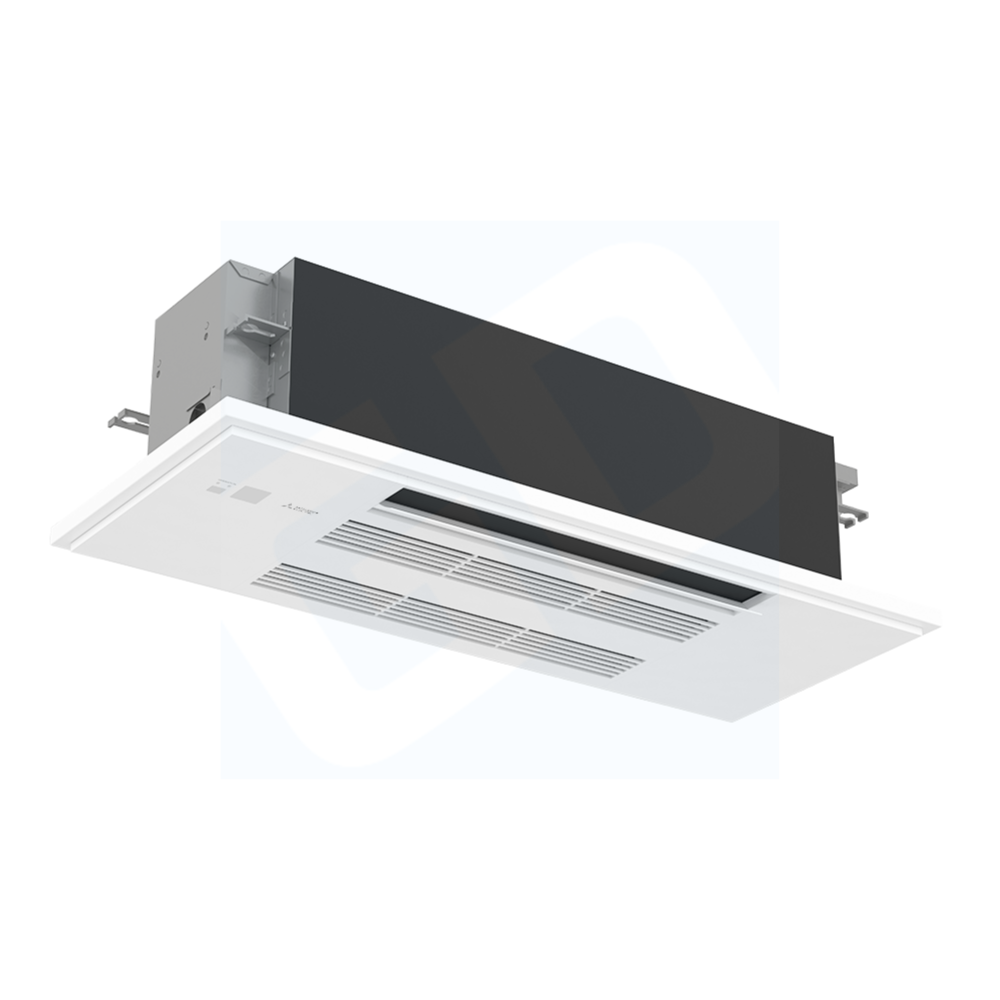

• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC MLZ-KX18NL - Mitsubishi Electric MLZ-KX18NL 18k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x5)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x2)

Key Details

• Weight of Bundle: 471.8 lb (Mitsubishi 225 lb + Mitsubishi 170 lb + Mitsubishi 6.7 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 35 lb + Mitsubishi 20 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Capacity: 6,000 BTU (MLZ-KX06NL), 18,000 BTU (MLZ-KX18NL)
• SEER2 Rating: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230 Volts (all units)
• Dimensions: Vary by unit (e.g., MXZ-SM60NL: 41-11/32 x 13 x 52-11/16 inches)
• Material: High-quality copper and durable construction (MSDD-50AR2-E)

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, compatible with Mitsubishi Electric's M-Series and CITY MULTI indoor units. Ideal for both residential and commercial applications, it provides efficient heating and cooling across various spaces while ensuring optimal refrigerant management and air distribution.
