Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+6K+12K+12K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units for customized comfort. The MLZ-KX06NL and MLZ-KX12NL ceiling cassette units provide versatile heating and cooling options, perfect for various indoor spaces. To ensure optimal refrigerant flow, the PAC-LMA50BC and PAC-LMA30BC branch boxes manage connections to multiple indoor units, while the MSDD-50AR2-E distribution kit guarantees balanced refrigerant distribution. Finally, the MLP-448WU and MLP-449WU grilles enhance airflow efficiency, making this bundle a complete solution for residential and commercial HVAC needs.

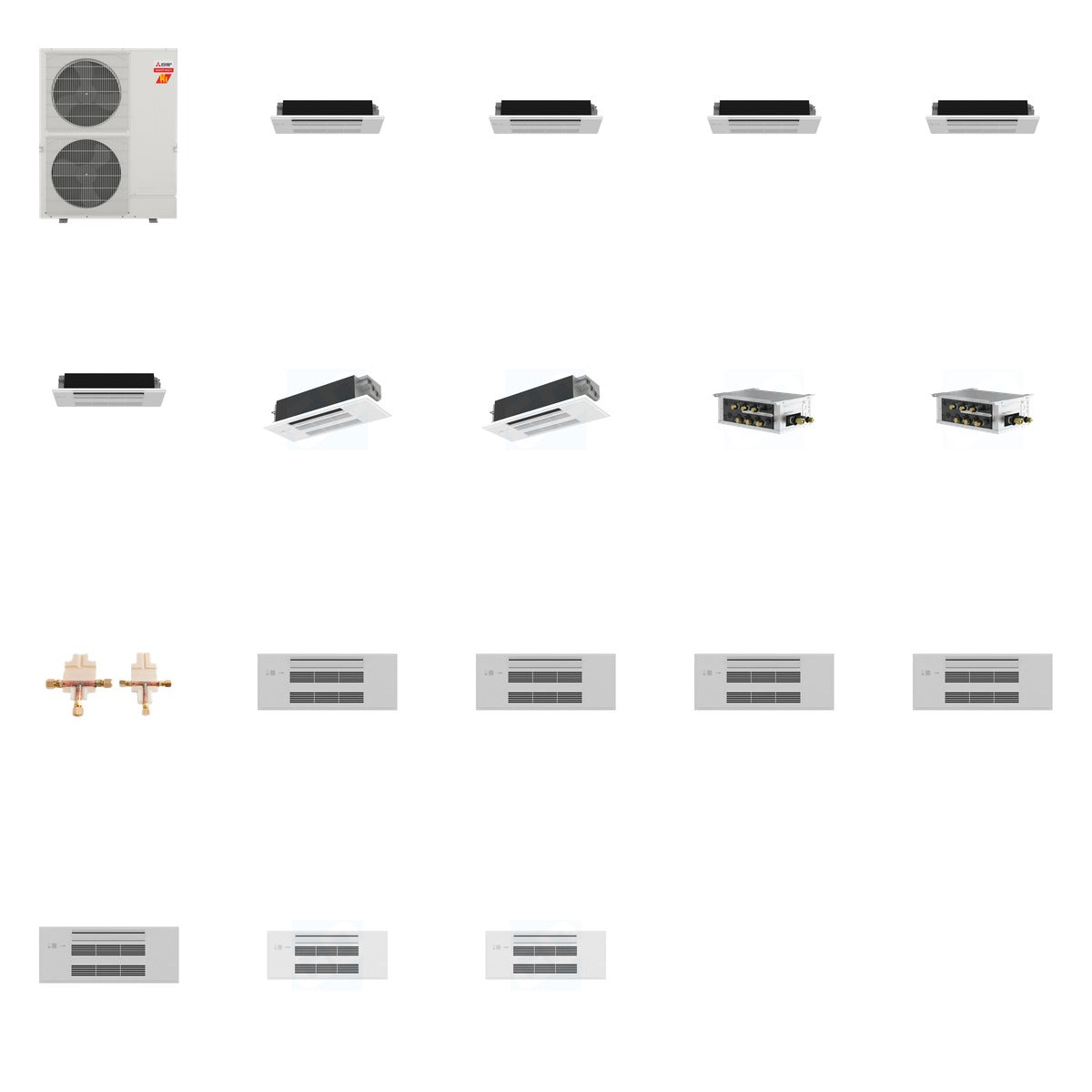

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x5)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x2)

Key Details

• Weight of Bundle: 533.1 lb (Mitsubishi 225 lb + Mitsubishi 170 lb + Mitsubishi 68 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 35 lb + Mitsubishi 20 lb)
• MXZ-SM60NL: 60,000 BTU, 5-Ton, SEER2 up to 23, dimensions 41-11/32" W x 13" D x 52-11/16" H
• MLZ-KX06NL: 6,000 BTU, dimensions 33-3/16" W x 11-7/8" D x 7-11/16" H, Wi-Fi enabled
• MLZ-KX12NL: 12,000 BTU, dimensions 43-3/8" W x 14-3/16" D x 7-5/16" H, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, dimensions 17-3/4" W x 11-1/16" D x 6-3/4" H
• PAC-LMA30BC: 3 ports, dimensions 17-3/4" W x 11-1/16" D x 6-3/4" H
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B, oxygen-free copper
• MLP-448WU: dimensions 16.5" W x 38.5" L x 4.25" H
• MLP-449WU: compatible with MLZ Series, dimensions not specified

Use & Compatibility

This bundle is designed for use in multi-zone heating and cooling systems, making it suitable for both residential and commercial applications. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI systems, ensuring seamless integration and optimal performance across various indoor environments.
