Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+12K+18K+18K

Description

This comprehensive bundle features a selection of high-performance Mitsubishi Electric HVAC components designed to create an efficient multi-zone heating and cooling system. The outdoor heat pump unit, MXZ-SM60NL, serves as the backbone, providing robust capacity for up to eight indoor units. Complementing this, the MLZ-KX series ceiling cassette units (6k, 12k, and 18k BTU) offer versatile installation options and adjustable airflow for optimal comfort in various spaces. The PAC-LMA30BC and PAC-LMA50BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit ensures balanced flow across all connected units. With the inclusion of essential grilles, this bundle is perfect for both residential and commercial applications, ensuring maximum efficiency and comfort.

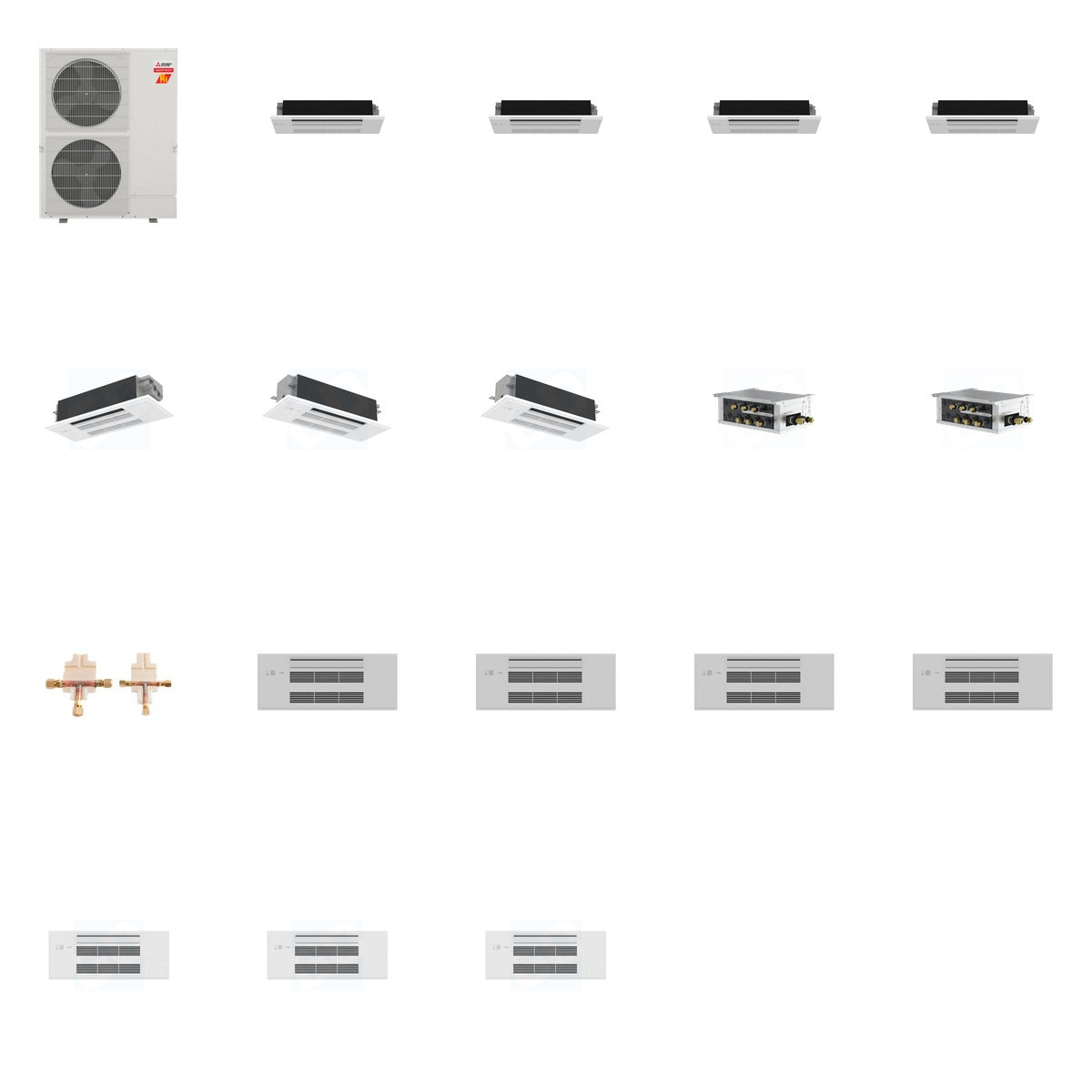

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX18NL - Mitsubishi Electric MLZ-KX18NL 18k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x4)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x3)

Key Details

• Weight of Bundle: 474.8 lb (Mitsubishi 225 lb + Mitsubishi 136 lb + Mitsubishi 34 lb + Mitsubishi 6.7 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 28 lb + Mitsubishi 30 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• SEER2: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230 Volts (All units)
• Indoor Unit Airflow: 152-332 CFM (MLZ-KX series)
• Noise Level: 26-58 dB(A) (All units)
• Dimensions (MXZ-SM60NL): 41-11/32 in W x 13 in D x 52-11/16 in H
• Weight: 25-34 lbs (Indoor units)
• Material: High-quality copper and durable construction (MSDD-50AR2-E)

Use & Compatibility

This bundle is ideal for creating a customized multi-zone HVAC system, suitable for both residential and commercial environments. The MXZ-SM60NL outdoor unit is compatible with various M-Series and CITY MULTI indoor units, while the ceiling cassettes can effectively cool or heat spaces up to 200 square feet. The included branch boxes and pipe distribution kit ensure efficient refrigerant management, making this bundle a comprehensive solution for diverse heating and cooling needs.
