Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+12K+12K+12K+12K

Description

This comprehensive HVAC bundle features essential components designed to create an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump unit serves as the powerhouse, capable of connecting to multiple indoor units, ensuring customized comfort across various spaces. The included MLZ-KX06NL and MLZ-KX12NL ceiling cassette units provide versatile heating and cooling options for different room sizes, while the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant distribution. Additionally, the MSDD-50AR2-E branch pipe kit ensures balanced refrigerant flow, enhancing system performance. This bundle is ideal for both residential and commercial applications, delivering reliable climate control with advanced technology.

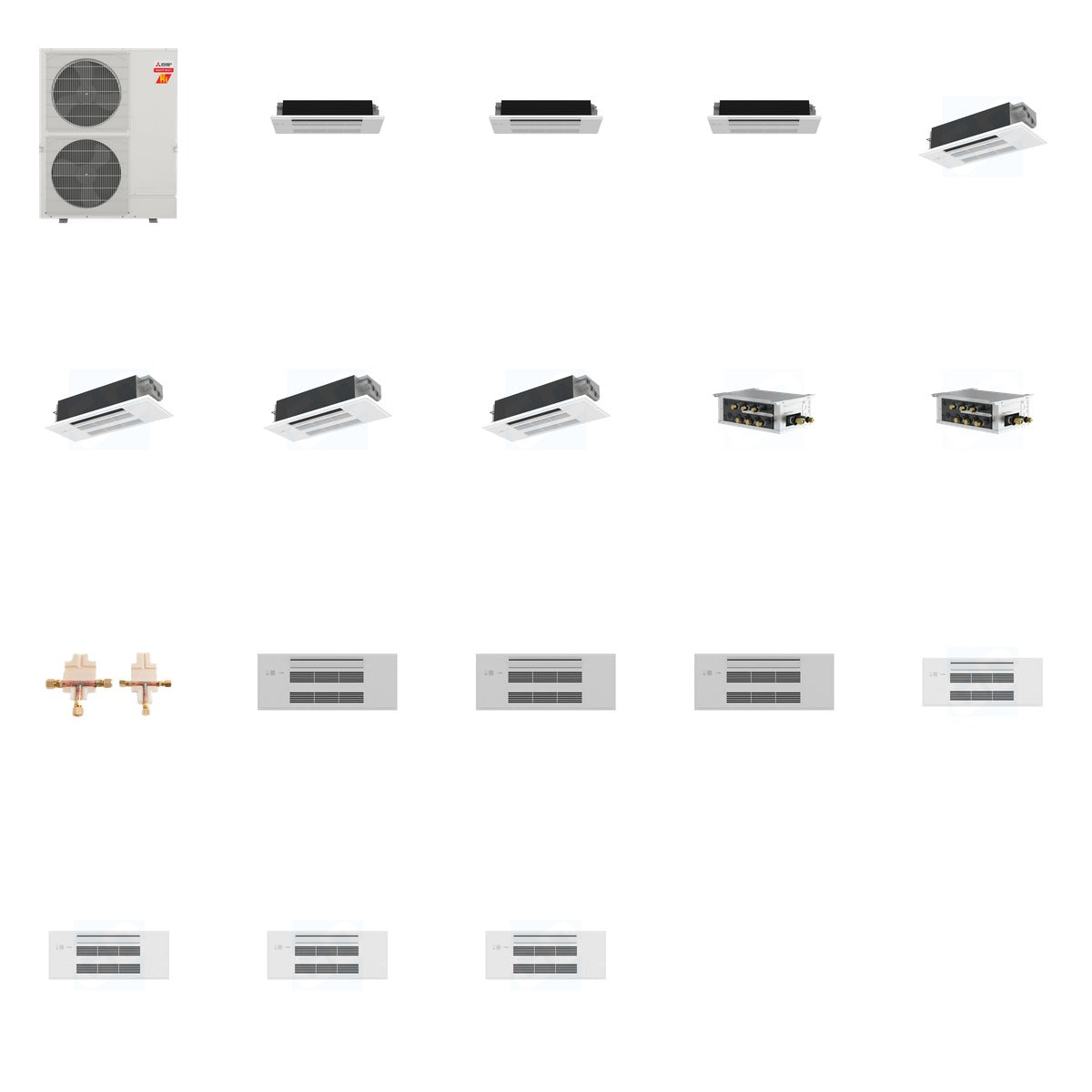

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x3)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x4)

Key Details

• Weight of Bundle: 539.1 lb (Mitsubishi 225 lb + Mitsubishi 102 lb + Mitsubishi 136 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 21 lb + Mitsubishi 40 lb)
• MXZ-SM60NL: 60,000 BTU Cooling Capacity, 66,000 BTU Heating Capacity, SEER2 up to 23, 5-Ton Inverter, 208/230V
• MLZ-KX06NL: 6,000 BTU Cooling/7,200 BTU Heating, 200 sq ft coverage, Wi-Fi enabled, 208/230V
• MLZ-KX12NL: 12,000 BTU Cooling/15,400 BTU Heating, Wi-Fi enabled, 208/230V
• PAC-LMA50BC: 5 Ports, 208/230V, 1 Phase, 60 Hz
• PAC-LMA30BC: 3 Ports, 208/230V, 1 Phase, 60 Hz
• MSDD-50AR2-E: Flare Connection, Compatible with R-410A/R-454B, Oxygen-Free Copper
• MLP-448WU: Dimensions 16.5 x 38.5 x 4.25 inches, Weight 7.9 lbs
• MLP-449WU: Designed for MLZ Series, Weight 7.9 lbs

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing both heating and cooling capabilities. It is compatible with various Mitsubishi Electric indoor units and outdoor models, making it suitable for residential and commercial applications. The included branch boxes and distribution kit ensure efficient refrigerant management, enhancing overall system performance.
