Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 9K+9K+9K+9K+9K+18K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump serves as the powerhouse, capable of supporting multiple indoor units for customized climate control. Paired with the MSZ-GX09NL and MSZ-GX18NL wall-mounted air handlers, this setup ensures optimal heating and cooling across various zones. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant flow to connect multiple indoor units, while the MSDD-50AR2-E distribution kit enhances performance and reliability. Together, these products provide a complete solution for both residential and commercial applications, ensuring comfort and efficiency.

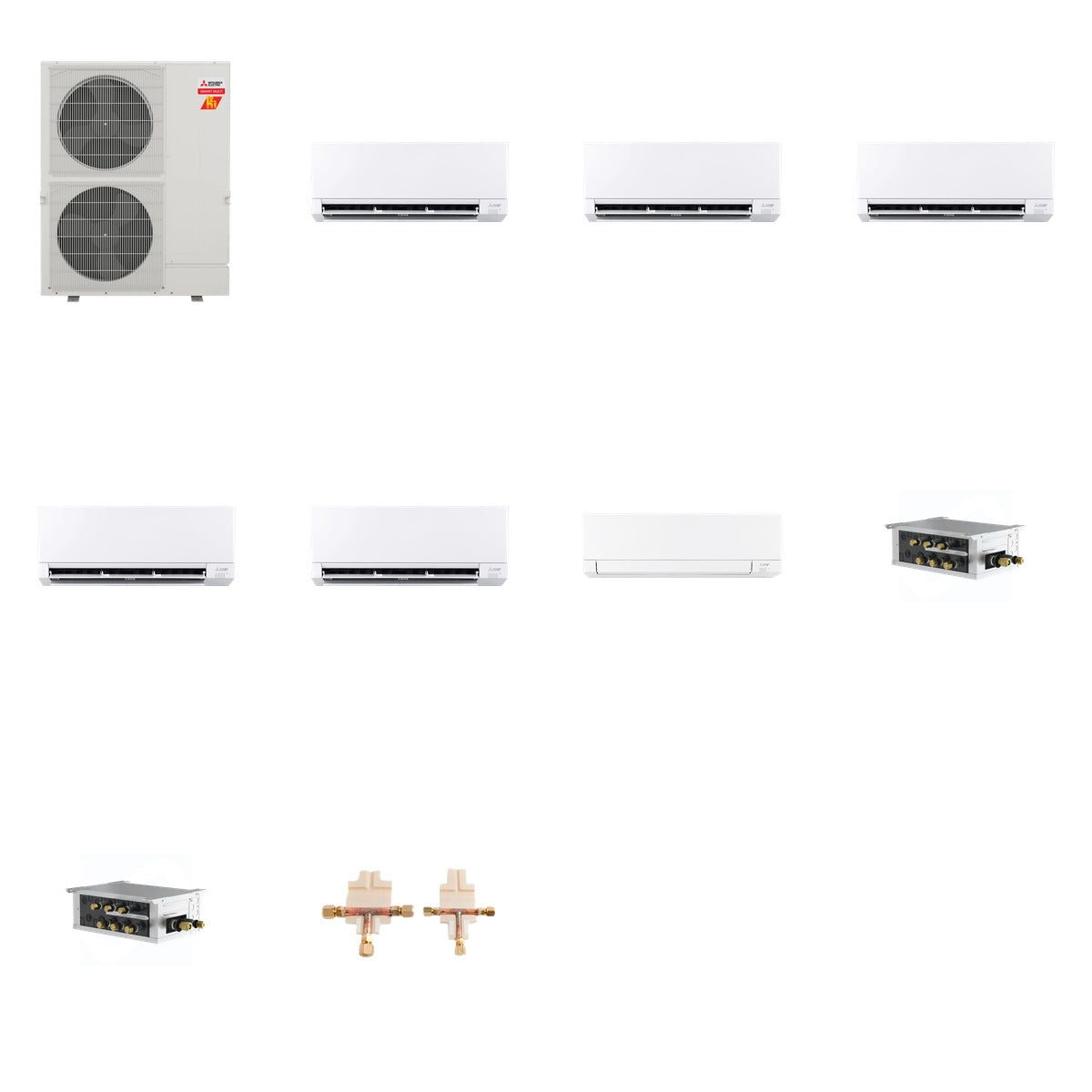

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x5)
• MITSUBISHI ELECTRIC MSZ-GX18NL - Mitsubishi Electric MSZ-GX18NL R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 378.1 lb (Mitsubishi 225 lb + Mitsubishi 110 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Cooling BTU: 9,000 (MSZ-GX09NL), 18,000 (MSZ-GX18NL)
• SEER2: Up to 28.4 (MSZ-GX09NL)
• Voltage: 208/230 Volts
• Material: Copper (MSDD-50AR2-E)
• Dimensions (PAC-LMA50BC): 6.75 in H x 17.75 in W x 11.06 in D
• Sound Level: As low as 19 dB (MSZ-GX09NL)

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, ideal for both residential and commercial applications. The outdoor unit connects seamlessly with various indoor units, providing efficient heating and cooling tailored to individual zone requirements. Compatible with R454B refrigerant, the components work together to optimize performance and energy efficiency.
