Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 9K+9K+9K+9K+9K+15K

Description

This comprehensive bundle includes essential components for setting up an efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump unit serves as the powerhouse, providing robust heating and cooling capabilities for up to eight zones. Paired with five wall-mounted air handlers (MSZ-GX09NL and MSZ-GX15NL), this setup ensures optimal comfort in various spaces while maintaining energy efficiency. The inclusion of two branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitates seamless refrigerant distribution, enhancing system performance. Additionally, the MSDD-50AR2-E branch pipe distribution kit ensures balanced refrigerant flow, making this bundle perfect for both residential and commercial applications.

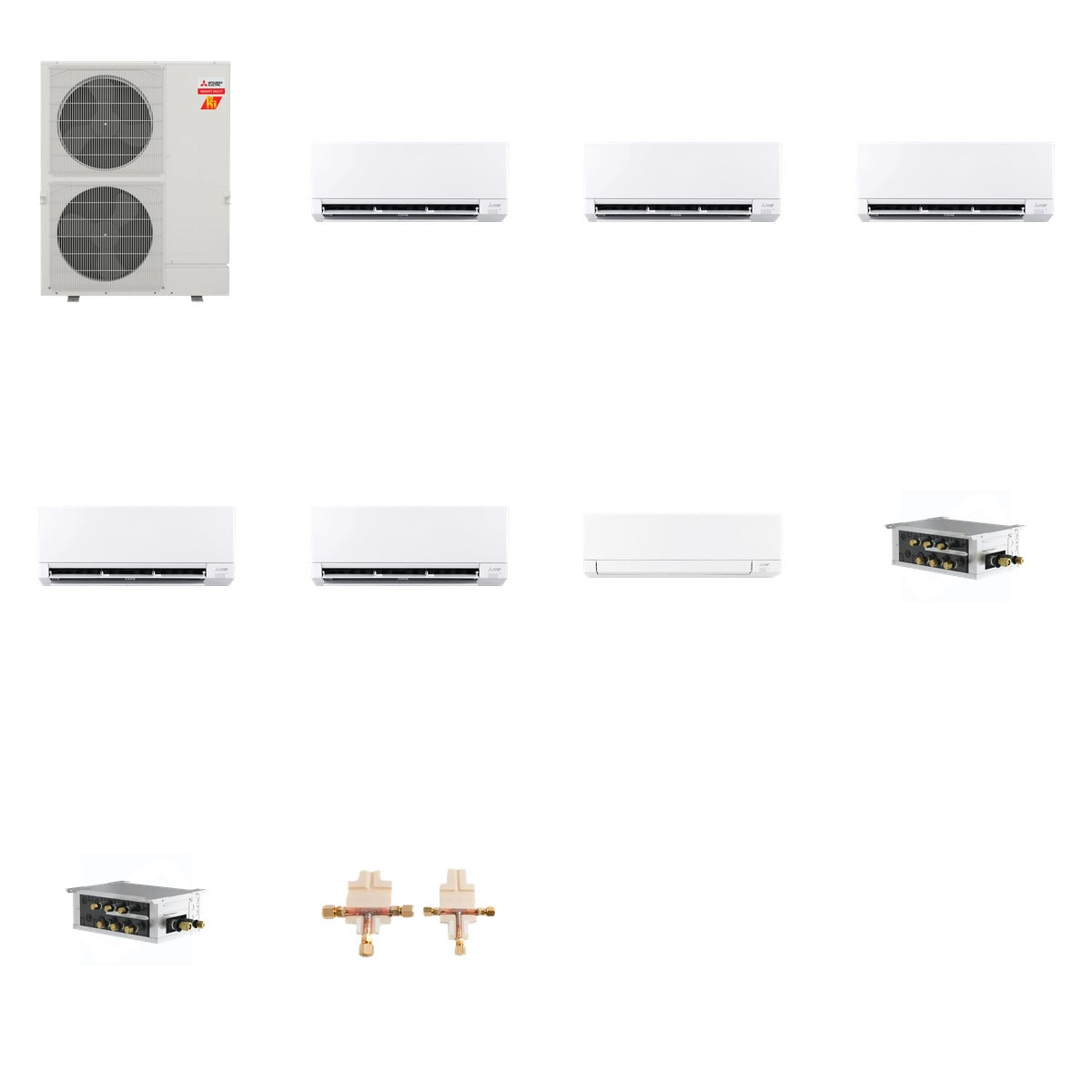

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x5)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 372.1 lb (Mitsubishi 225 lb + Mitsubishi 110 lb + Mitsubishi 22 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Outdoor Unit: 60,000 BTU cooling, 66,000 BTU heating
• Indoor Units: 9,000 BTU (x5), 15,000 BTU (x1)
• SEER2: Up to 28.4 for indoor units
• Refrigerant: R454B
• Voltage: 208/230 Volts
• Branch Box Ports: 5 (PAC-LMA50BC), 3 (PAC-LMA30BC)
• Material: Copper with thermal insulation for branch pipes

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor spaces. The components are compatible with Mitsubishi Electric's MXZ outdoor units and can be integrated into both residential and commercial setups, ensuring optimal performance and comfort.
