Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 9K+9K+9K+9K+18K+24K

Description

This comprehensive Mitsubishi Electric HVAC bundle is designed for optimal heating and cooling efficiency across multiple zones. Featuring a powerful MXZ-SM60NL outdoor unit, this package includes four advanced wall-mounted air handlers (MSZ-GX09NL, MSZ-GX18NL, MSZ-GX24NL) that cater to various room sizes and requirements. The bundle also incorporates essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) and a distribution kit (MSDD-50AR2-E) to ensure seamless refrigerant flow and management. Together, these components create a versatile and efficient multi-zone climate control system suitable for both residential and commercial applications.

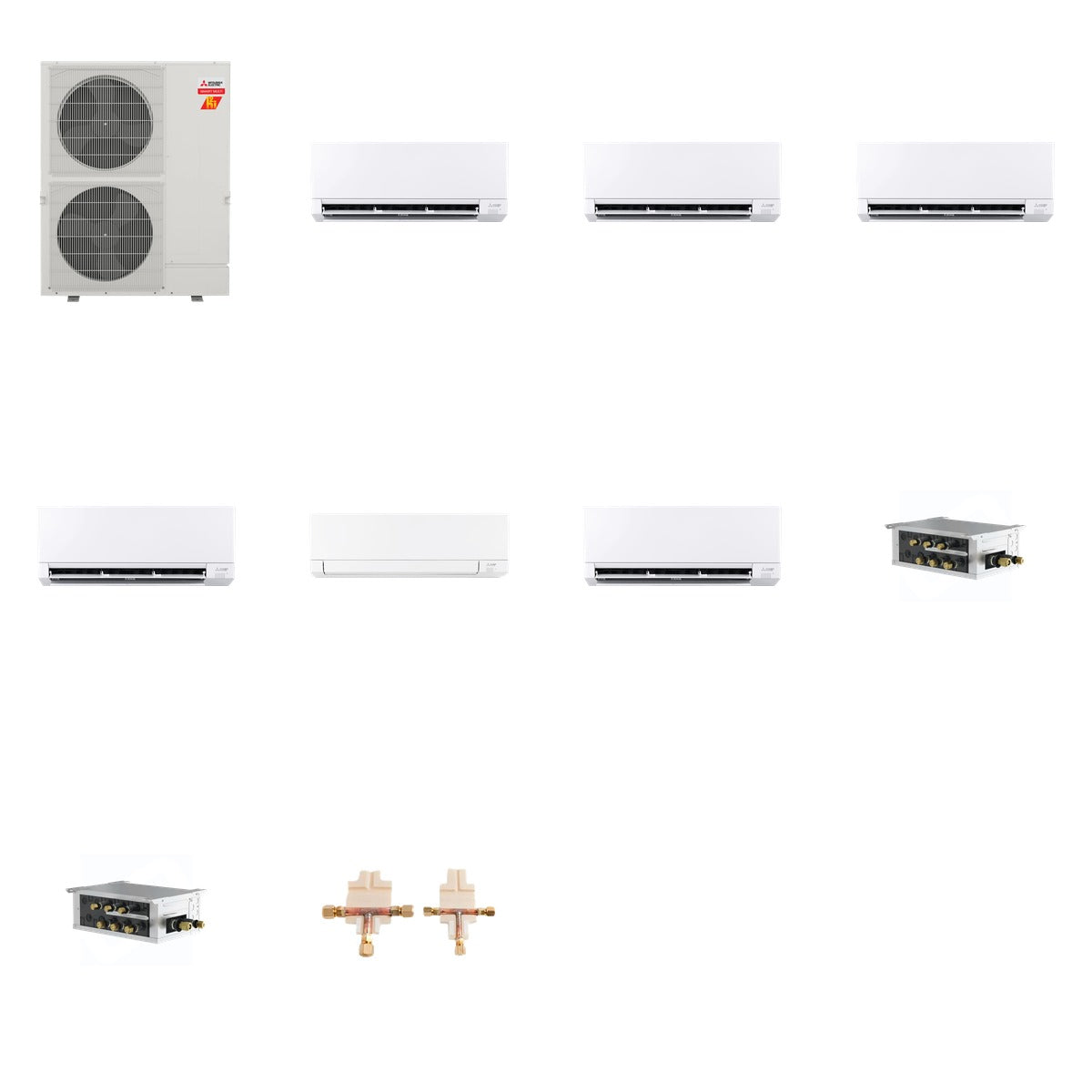

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-GX18NL - R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX24NL - R454B 24k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 384.1 lb (Mitsubishi 225 lb + Mitsubishi 88 lb + Mitsubishi 28 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: Up to 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: Up to 66,000 BTU (MXZ-SM60NL)
• SEER2 Rating: Up to 28.4 (MSZ-GX09NL, MSZ-GX24NL)
• Voltage: 208/230 Volts
• Sound Level: As low as 19 dB (MSZ-GX09NL)
• Refrigerant Type: R454B
• Number of Zones: Up to 8 with MXZ-SM60NL
• Dimensions (Outdoor Unit): 41-11/32 in W x 13 in D x 52-11/16 in H

Use & Compatibility

This bundle is intended for use in both residential and commercial HVAC systems, providing efficient heating and cooling solutions across multiple zones. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI indoor units, ensuring a cohesive and effective climate control system.
