Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 9K+9K+9K+9K+15K+24K

Description

This comprehensive HVAC bundle is designed to provide optimal heating and cooling solutions for both residential and commercial environments. It features a powerful Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, capable of connecting to multiple indoor units for customized climate control. The bundle includes four advanced wall-mounted air handlers (MSZ-GX09NL, MSZ-GX15NL, MSZ-GX24NL) that offer efficient operation, quiet performance, and smart features like built-in Wi-Fi and advanced filtration systems. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes ensure effective refrigerant distribution, enhancing system efficiency and performance.

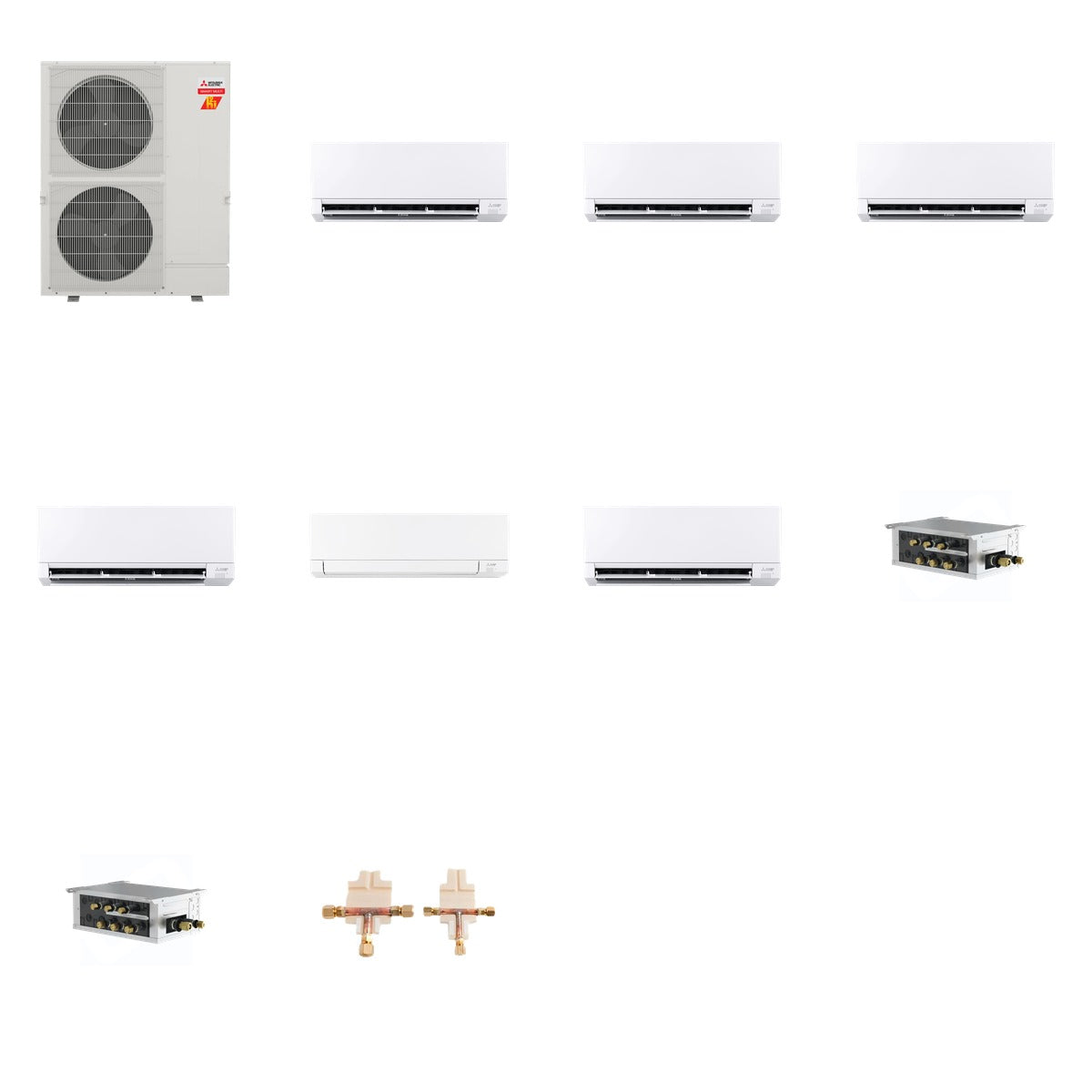

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-GX15NL - R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX24NL - R454B 24k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 378.1 lb (Mitsubishi 225 lb + Mitsubishi 88 lb + Mitsubishi 22 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MSZ-GX09NL: 9,000 BTU, SEER2 up to 28.4, 208/230V
• MSZ-GX15NL: 15,000 BTU, SEER2 up to 28.4, 208/230V
• MSZ-GX24NL: 24,000 BTU, SEER2 up to 28.4, 208/230V
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ models
• PAC-LMA30BC: 3 ports, 208/230V, compatible with R454B refrigerant
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is ideal for multi-zone HVAC systems, allowing for customized heating and cooling across various indoor spaces. The outdoor unit connects seamlessly with the included wall-mounted air handlers, while the branch boxes facilitate efficient refrigerant flow, ensuring optimal performance in both residential and commercial applications.
