Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 9K+9K+9K+9K+15K+18K

Description

This comprehensive HVAC bundle features essential components designed for efficient heating and cooling in multi-zone systems. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump unit serves as the powerhouse, capable of connecting to multiple indoor units for customized climate control. Accompanying this are four wall-mounted air handlers (MSZ-GX09NL, MSZ-GX15NL, MSZ-GX18NL) that offer quiet operation and advanced filtration systems, ensuring optimal air quality. The bundle also includes two branch boxes (PAC-LMA50BC and PAC-LMA30BC) for effective refrigerant management, along with a branch pipe distribution kit (MSDD-50AR2-E) to facilitate seamless refrigerant flow. Together, these components create a versatile and efficient HVAC system suitable for both residential and commercial applications.

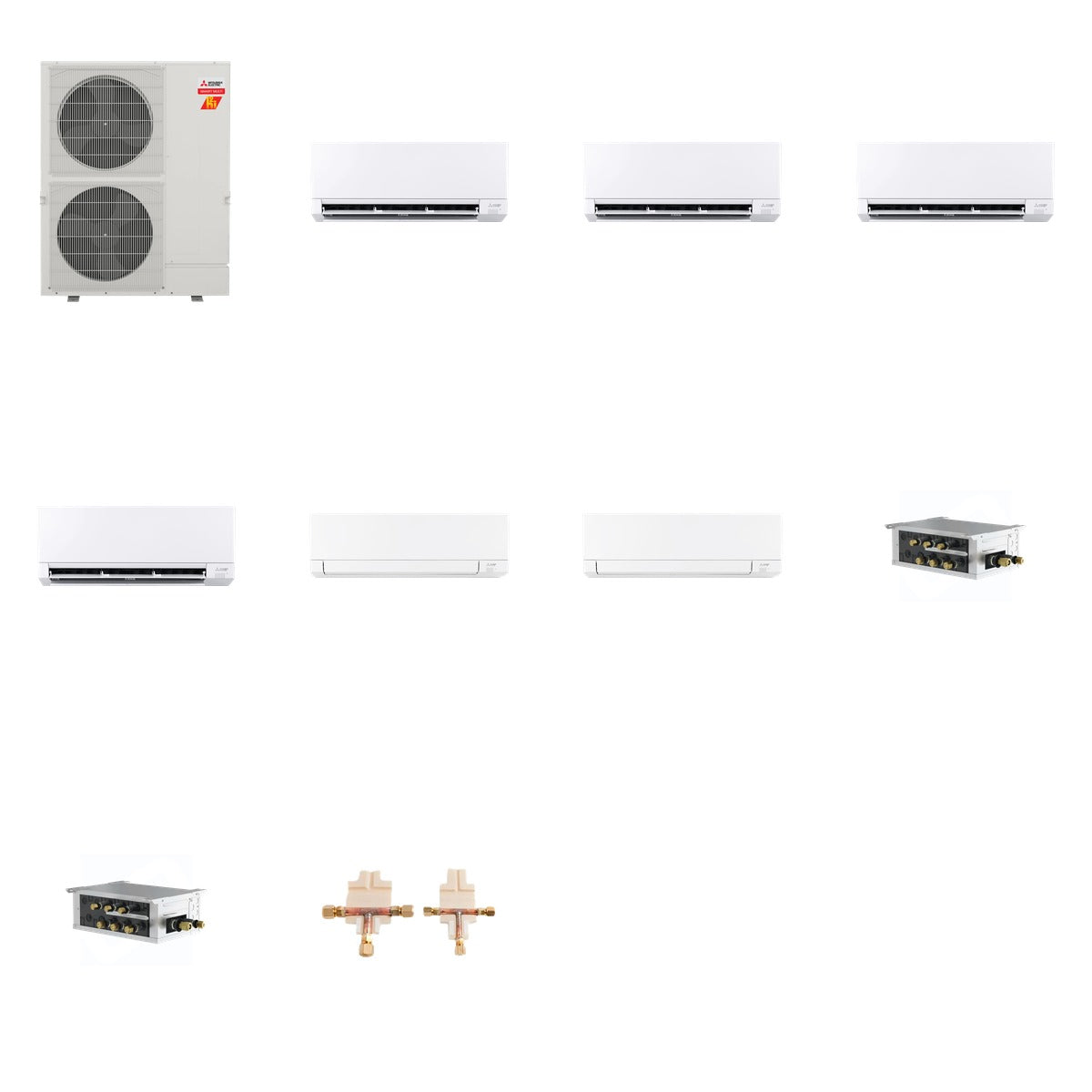

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX18NL - Mitsubishi Electric MSZ-GX18NL R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 378.1 lb (Mitsubishi 225 lb + Mitsubishi 88 lb + Mitsubishi 22 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling, 66,000 BTU Heating, SEER2 up to 23
• MSZ-GX09NL: 9,000 BTU Cooling, 10,900 BTU Heating, SEER2 up to 28.4
• MSZ-GX15NL: 15,000 BTU Cooling, 18,000 BTU Heating, SEER2 up to 22.5
• MSZ-GX18NL: 18,000 BTU Cooling, 21,600 BTU Heating, SEER2 up to 22.5
• PAC-LMA50BC: 5 Ports, Voltage 208/230V
• PAC-LMA30BC: 3 Ports, Voltage 208/230V
• MSDD-50AR2-E: Flare Connection, Oxygen-Free Copper

Use & Compatibility

This bundle is designed for multi-zone HVAC systems, ideal for both residential and commercial applications. The outdoor unit connects seamlessly with the included indoor air handlers, while the branch boxes and distribution kit ensure efficient refrigerant flow and temperature control across multiple zones. Compatible with R-454B refrigerant, this system is engineered for optimal performance and energy efficiency.
