Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 9K+9K+9K+15K+15K+15K

Description

This comprehensive bundle features essential components for a multi-zone HVAC system, ensuring efficient heating and cooling across various indoor spaces. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of supporting up to eight indoor units, while the three wall-mounted air handlers (MSZ-GX09NL and MSZ-GX15NL) provide customizable comfort in different zones. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate optimal refrigerant distribution, making this bundle ideal for both residential and commercial applications. The MSDD-50AR2-E branch pipe kit further enhances system performance by ensuring balanced refrigerant flow, making this bundle a complete solution for your HVAC needs.

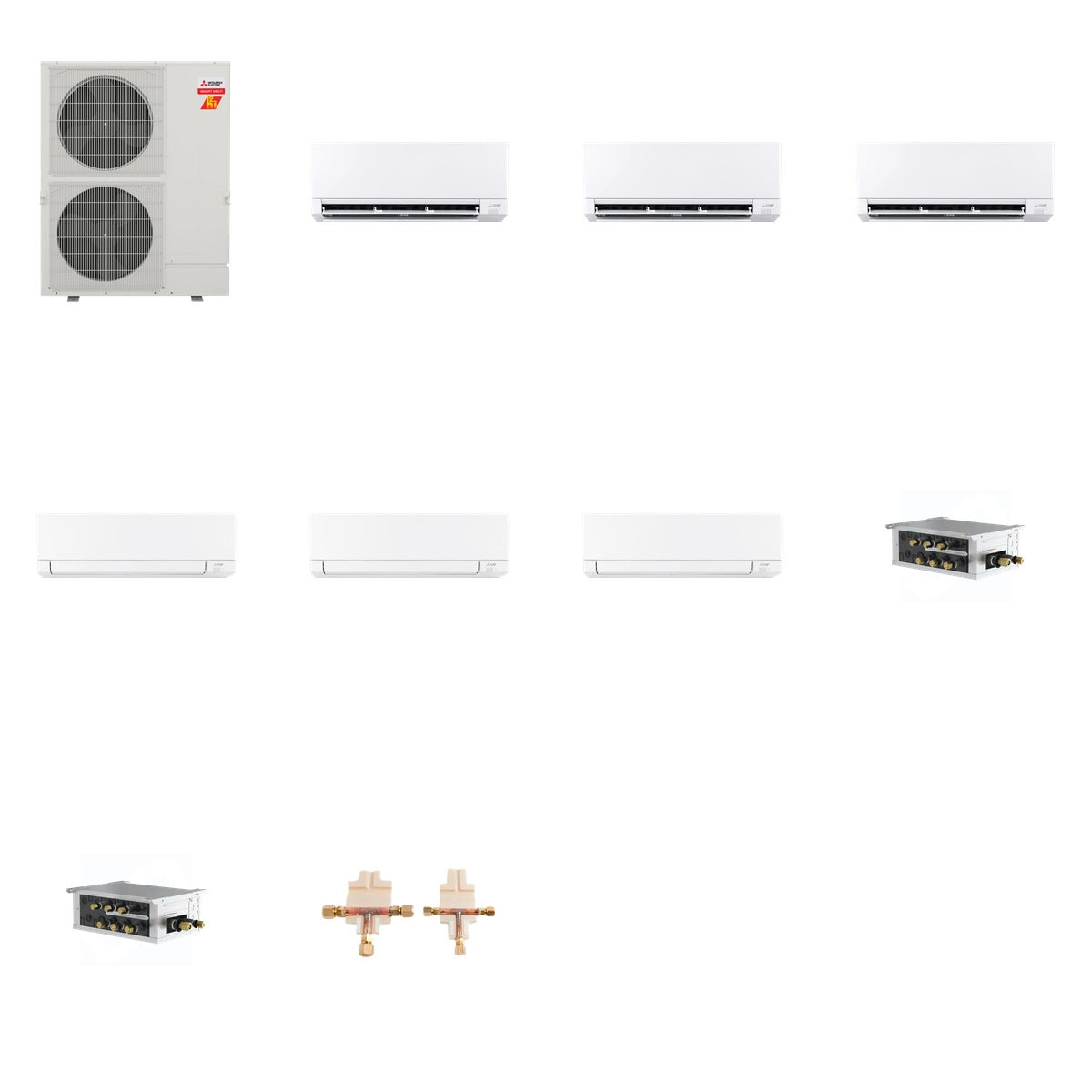

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 372.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 66 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU cooling, 66,000 BTU heating, SEER2 up to 23
• MSZ-GX09NL: 9,000 BTU cooling, 10,900 BTU heating, SEER2 up to 28.4
• MSZ-GX15NL: 15,000 BTU cooling, 18,000 BTU heating, SEER2 up to 28.4
• PAC-LMA50BC: 5 ports, compatible with MXZ model R-454B
• PAC-LMA30BC: 3 ports, compatible with R-454B refrigerant
• MSDD-50AR2-E: Flare connection, oxygen-free copper construction

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling solutions for both residential and commercial applications. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI indoor units, ensuring seamless integration and optimal performance across various indoor environments.
