Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 9K+9K+9K+12K+18K+18K

Description

This comprehensive HVAC bundle is designed for those seeking efficient heating and cooling solutions for both residential and commercial environments. Featuring the Mitsubishi Electric MXZ-SM60NL multi-zone heat pump outdoor unit, this bundle includes three advanced wall-mounted air handlers (MSZ-GX09NL, MSZ-GX12NL, and MSZ-GX18NL) that ensure optimal comfort and air quality. Additionally, the package comes with two branch boxes (PAC-LMA50BC and PAC-LMA30BC) and a branch pipe distribution kit (MSDD-50AR2-E) to facilitate seamless refrigerant flow and system integration. Together, these components create a powerful, flexible, and energy-efficient HVAC system that can be tailored to meet diverse heating and cooling needs.

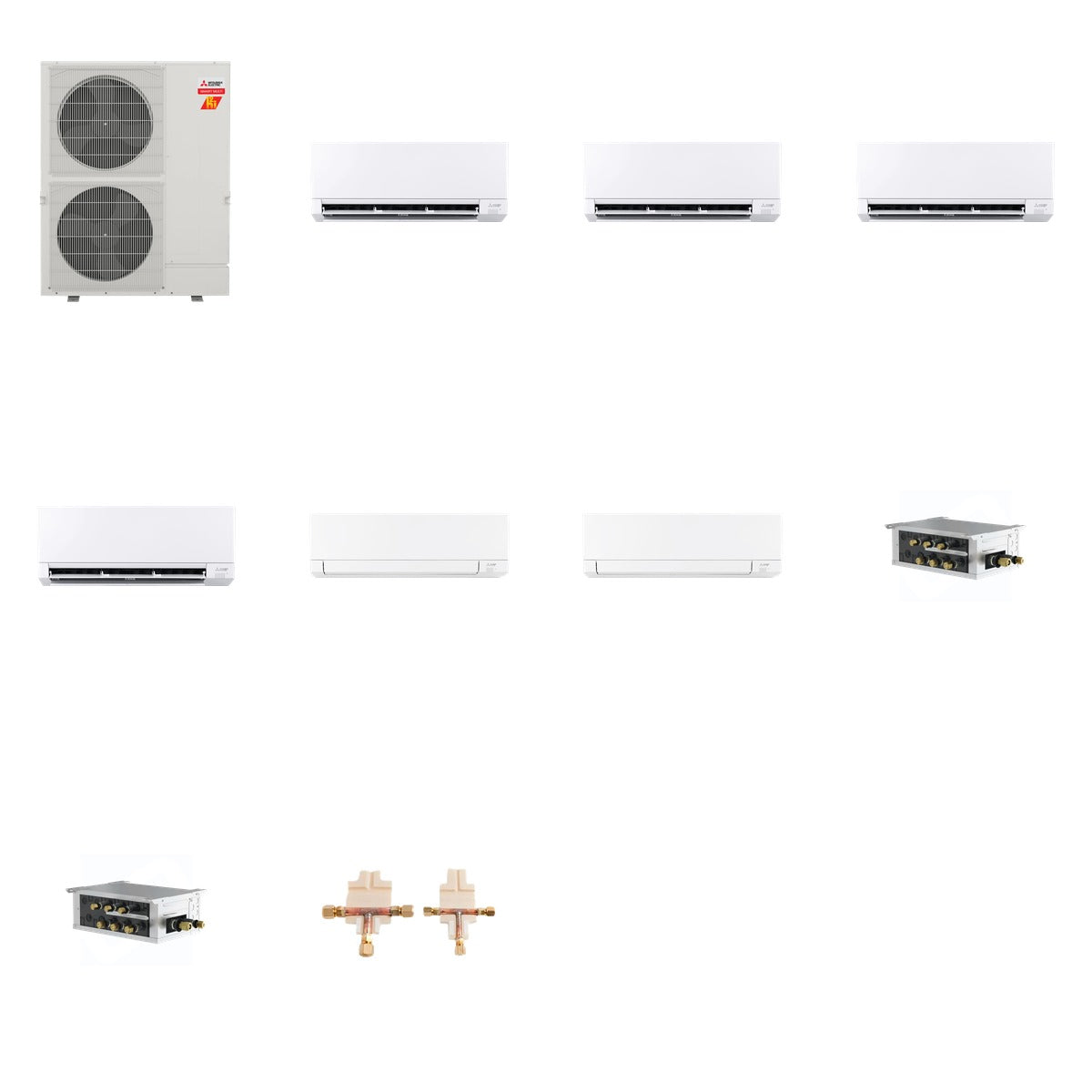

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - 9k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX12NL - 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX18NL - 18k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 384.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 22 lb + Mitsubishi 56 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• SEER2 Rating: Up to 28.4 (MSZ-GX09NL, MSZ-GX12NL)
• Voltage: 208/230 Volts (All units)
• Refrigerant: R454B (All units)
• Sound Level: As low as 19 dB(A) (MSZ-GX09NL)
• Dimensions: Varies by unit (refer to specifications)

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, providing efficient climate control for various indoor spaces. The MXZ-SM60NL outdoor unit connects seamlessly with the included wall-mounted air handlers, making it suitable for both residential and commercial HVAC systems. The branch boxes and distribution kit enhance system performance by ensuring balanced refrigerant flow and optimal temperature management across multiple indoor units.
