Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 9K+9K+9K+12K+15K+15K

Description

This comprehensive bundle is designed for those looking to enhance their HVAC systems with high-performance Mitsubishi Electric products. It includes a powerful MXZ-SM60NL multi-zone heat pump outdoor unit, capable of connecting to multiple indoor units for customized heating and cooling. Complementing this are three wall-mounted air handlers (MSZ-GX09NL, MSZ-GX12NL, and MSZ-GX15NL) that provide efficient, quiet operation and advanced features like built-in Wi-Fi and Econo Cool mode. Additionally, the bundle features two branch boxes (PAC-LMA50BC and PAC-LMA30BC) for optimal refrigerant distribution, along with a branch pipe distribution kit (MSDD-50AR2-E) to ensure balanced performance across all connected units. Together, these components create a cohesive system that maximizes comfort and efficiency in residential and commercial spaces.

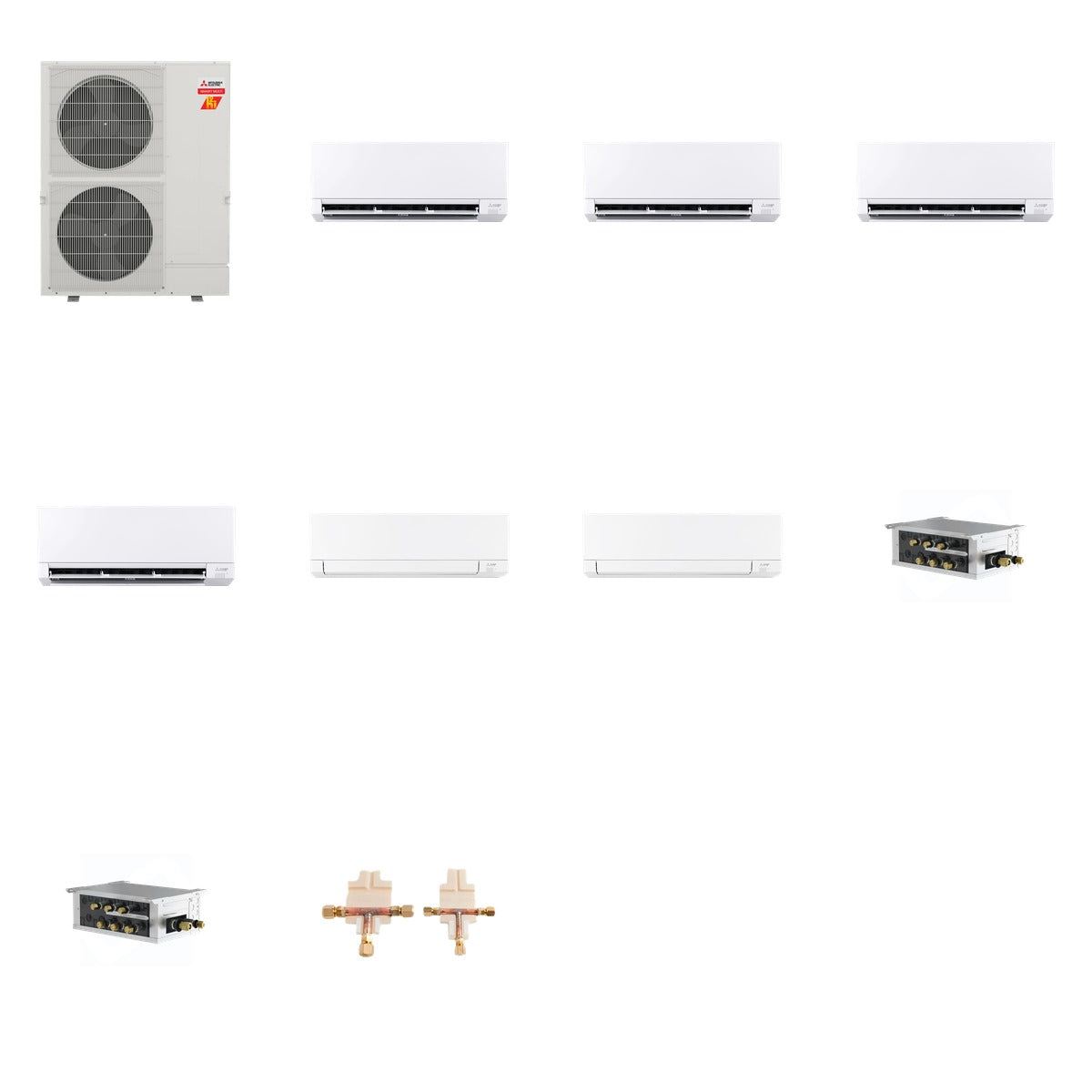

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 372.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 22 lb + Mitsubishi 44 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MSZ-GX09NL: 9,000 BTU, SEER2 up to 28.4, minimum sound level 19 dB
• MSZ-GX12NL: 12,000 BTU, SEER2 up to 28.4, minimum sound level 19 dB
• MSZ-GX15NL: 15,000 BTU, minimum sound level 26 dB
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ model
• PAC-LMA30BC: 3 ports, 208/230V, connects up to three indoor units
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B

Use & Compatibility

This bundle is intended for use in both residential and commercial HVAC applications. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the wall-mounted air handlers can be used in single or multi-zone configurations. The branch boxes and distribution kit ensure efficient refrigerant flow and temperature control across all connected indoor units.
